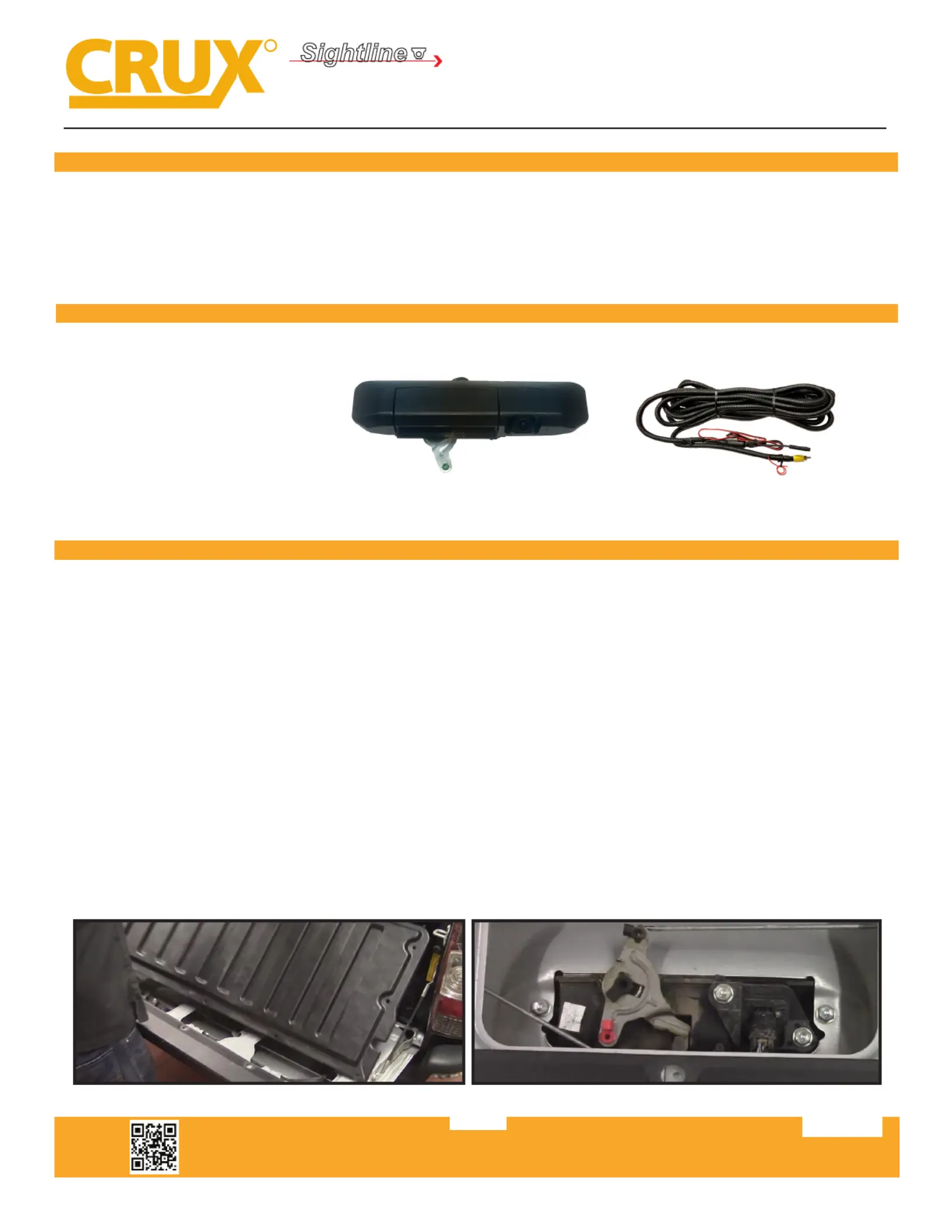

CTY-02T
Tailgate Handle Camera for
TOYOTA TACOMA 2006 - 2015
- Replaces the factory tailgate handle and adds a backup camera.
- 170 degree wide view angle for excellent visibility.
- Super CMOS technology provides a sharper picture day and night.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Tailgate handle camera
2. 26’ extension cable
INSTALLATION INSTRUCTIONS:
1. Start by lowering the tailgate of the truck. Remove the screws that secure the tailgate cover.
2. Aer removing the tailgate cover you will have access to the backside of the factory tailgate handle. Using a
10mm socket, remove the (2) nuts holding the tailgate handle in place. Undo the tailgate latch rods. Li up on
the latch to release the (2) tailgate handle studs and remove the tailgate handle.
3. Re-assemble the new tailgate handle into the tailgate in reverse order. Do not put back the tailgate cover unl
aer tesng the camera.
4. Route the Video and Power cables from the tailgate to the boom of the truck. Route the the camera power
wires to the tail light assembly. Tap the RED wire to the +12V reverse light wire and the BLACK wire to ground.
Connue to route the video cable towards the radio and plug in the video RCA to the back of the aermarket
radio of back up camera interface reverse camera input.
5. Test the camera for funconality then put back the tailgate cover.
rev.12072021
1 of 2
