RVCVW-73
Rear View Integration Interface for Select
Volkswagen Vehicles with MFD3 RNS315 & RNS510 Navigation System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0205211 of 3
- Automacally switches to Rear-view when car is in Reverse mode.
- Aermarket Rear-view Camera included.
- OBD coder for single acvaon included.
- Plug & Play Installaon.
PRODUCT FEATURES:
PARTS INCLUDED:
RVCVW-73 Module RVCVW-73 Harness OBD II Coder
Power Down Circuit CUL-03 Camera
GROUND
RED Wire Tape O
(Not Used)
FACTORY
RADIO
12-PIN
(male plug)
26-PIN
(female plug)
NAV
MUTE
SETUP
BAND
MEDIA
PHONE
i
VIDEO
CONNECTION
INTERFACE
THIN RED
WIRE
LIP MOUNT
CAMERA
(included in kit)
Power Down
Circuit
BLACK Wire
RED Wire
GREEN Wire
Reverse Power Output
(+12V 2 Amps)
To +12V Constant
(behind radio)
Ground
BLACK Wire
Factory Reverse
Light +12V
YELLOW Wire
RED Wire
Reverse Trigger input

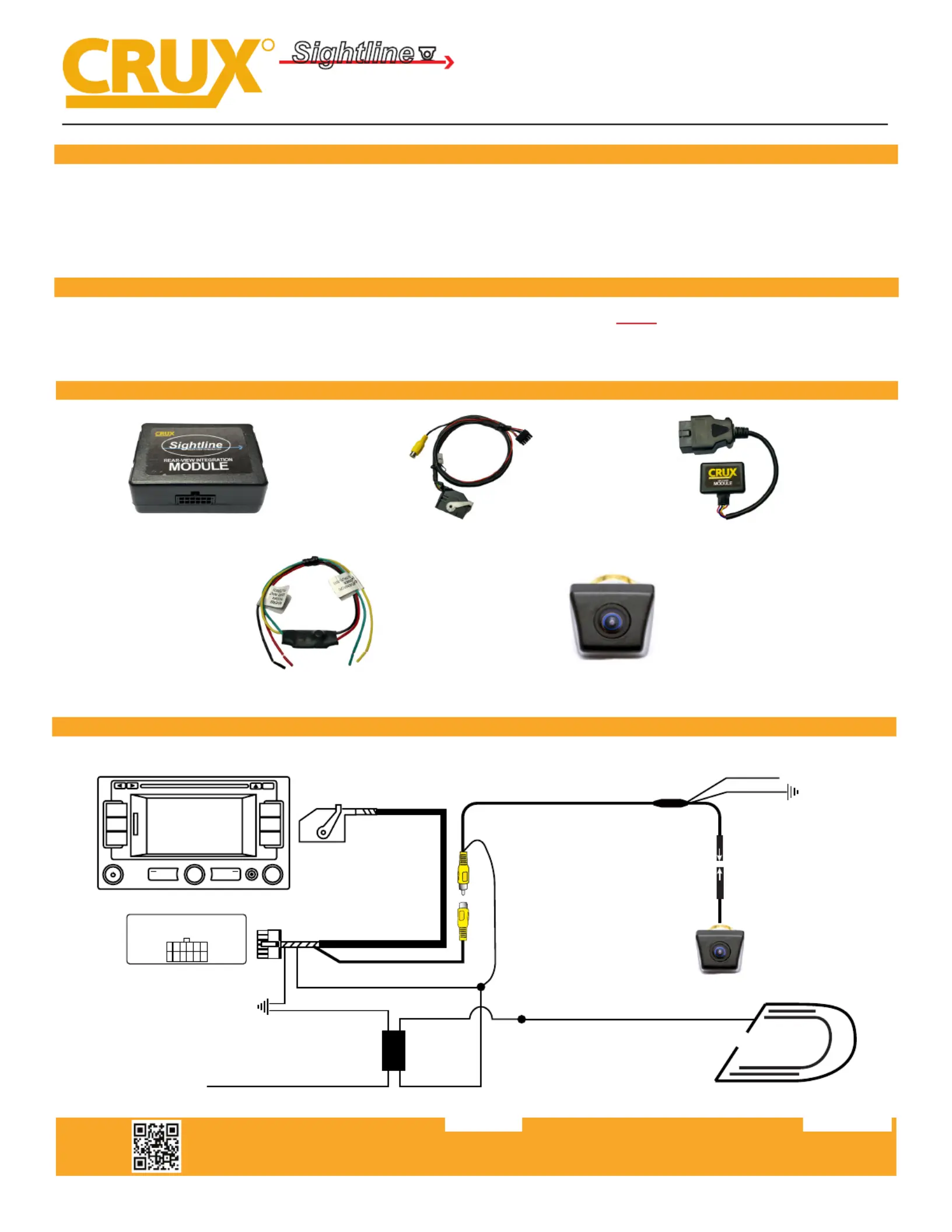

INSTALLATION DIAGRAM:
SPECIAL NOTE:
In the event this unit is to be returned for any reason, the customer must “decode” the radio before
doing so to receive a replacement or refund. See instructions on page 2 on how to decode the radio.
