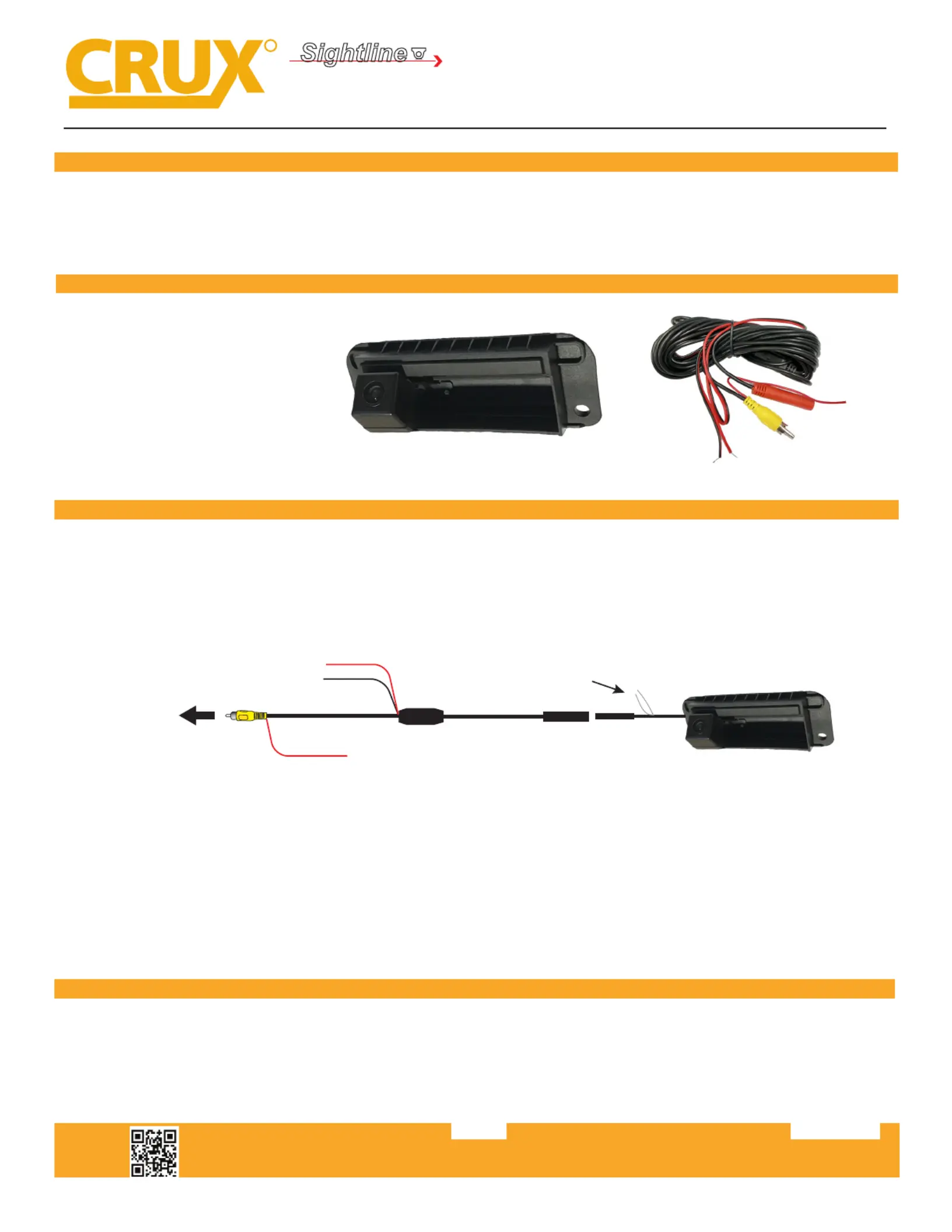

CMB-16K
Trunk Handle Camera for
MERCEDES BENZ GLK Class 2009-2012
- Replaces factory trunk handle.
- Selectable Parking Guide Line ON or OFF.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Trunk handle camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Remove the trunk liner to gain access to the 2 screws holding the factory trunk handle.
2. Run the camera cable to the inside of the cabin towards the radio.
3. Make the power and video connecons to the RVC interface or the aermarket radio.
4. Test the camera for funconality before installing the new trunk handle with camera.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020419
VEHICLE APPLICATIONS:
MERCEDES BENZ
2009 - 2012 GLK Class
1
