R
INTERFACING SOLUTIONS
Sightline
CAMERAS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

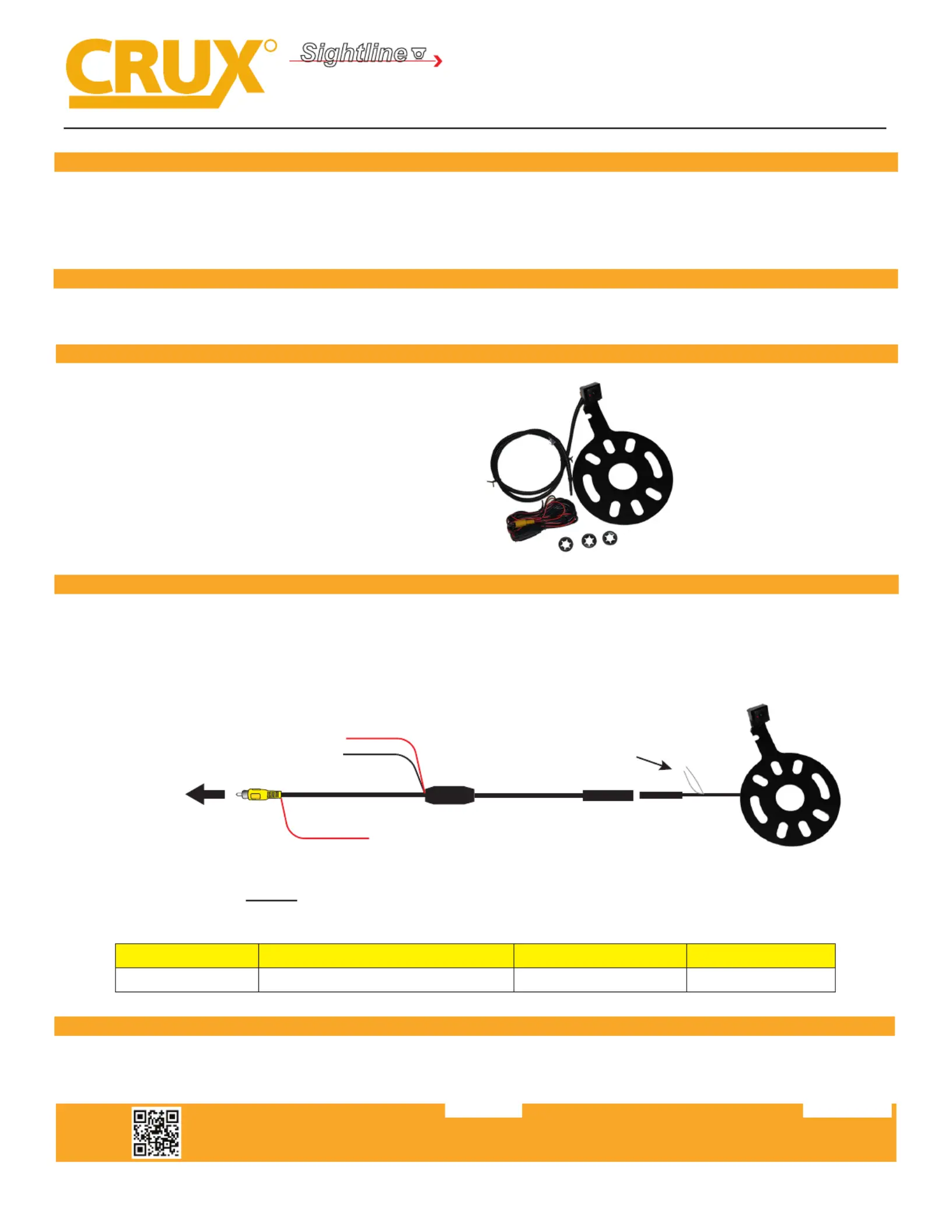

CCH-01M
Spare Tire Mount Rear-View Camera with
Moving Parking Guide Lines for JEEP WRANGLER 2007 - 2017
1
- Fixed mount rear view camera for mounng on the spare re.
- Maintains the OEM look.
- With moving parking guide lines to assist in parking.
PRODUCT FEATURES:
PARTS INCLUDED:
NOTE:
- For use when an OEM spare re is present. May not t properly if spare re has an aermarket rim.
1. Spare re mount camera
2. 20” extension cable
3. Three star washers
4. Cable es
INSTALLATION INSTRUCTIONS:
1. Remove the outside mounted spare re.
2. Mount the CCH-01M metal bracket onto the bolts and secure with the star washers.
3. Run the cable to the inside of the cabin towards the radio.
4. Make the power and video connecons to the RVC interface (i.e. Crux part# MG-3, sold separately) or the aermarket radio.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
rev.100220
VEHICLE APPLICATIONS:
2007 - 2017 Jeep Wrangler
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
