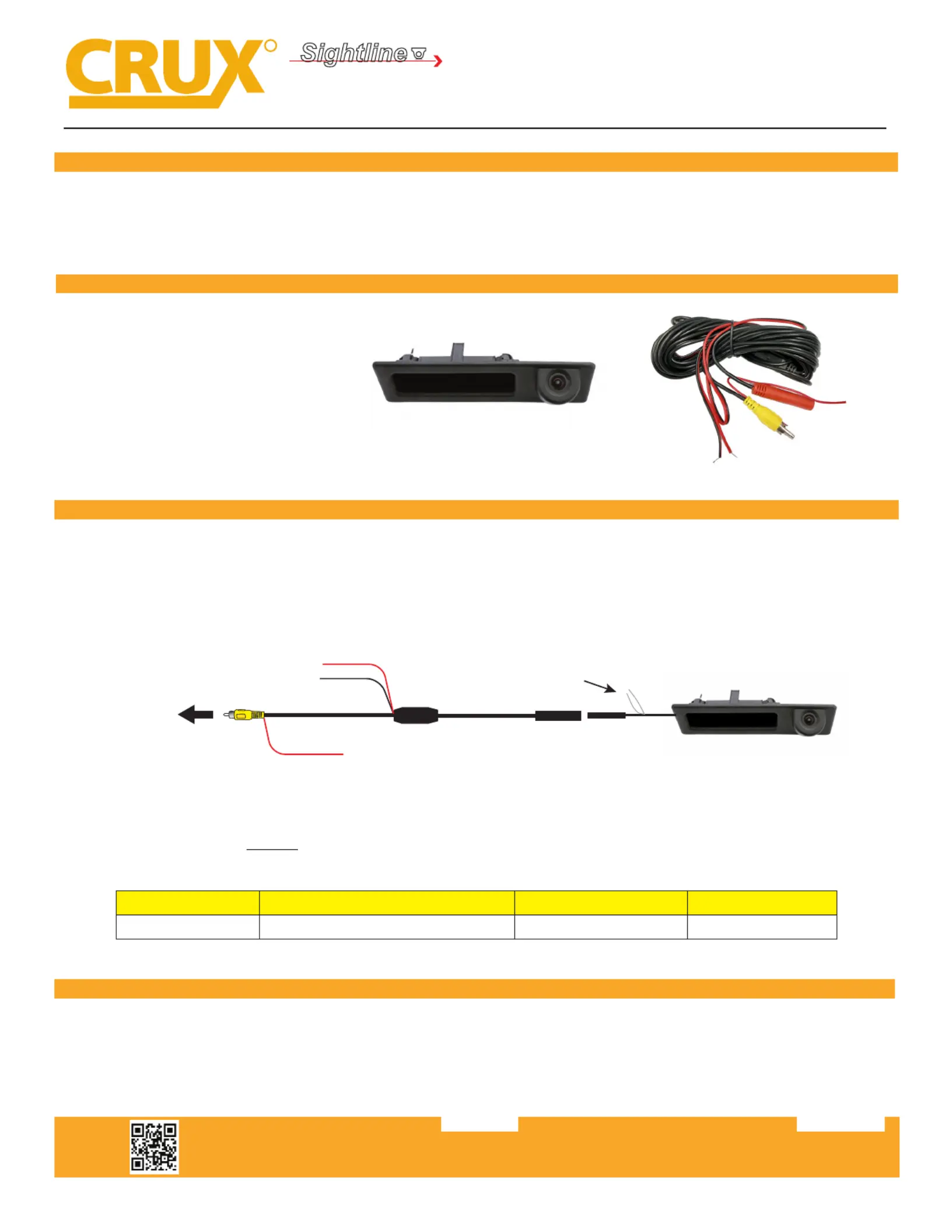

CBM-01T
Trunk Handle Camera for
Select BMW Vehicles 2012-2018
- Replaces factory trunk handle.
- Selectable Parking Guide Line ON or OFF.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Trunk handle camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Carefully remove the factory trunk handle using a plasc panel removal tool.
2. Run the camera cable to the inside of the cabin towards the radio.
3. Make the power and video connecons to the RVC interface or the aermarket radio.
4. Test the camera for funconality.
5. Snap in the new trunk handle.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1113020
VEHICLE APPLICATIONS:
2012-2018 4 Series
2012-2014 7 Series
2016-2017 X1
1
2014-2017 X3
2014-2018 X5
2015-2017 X6
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
