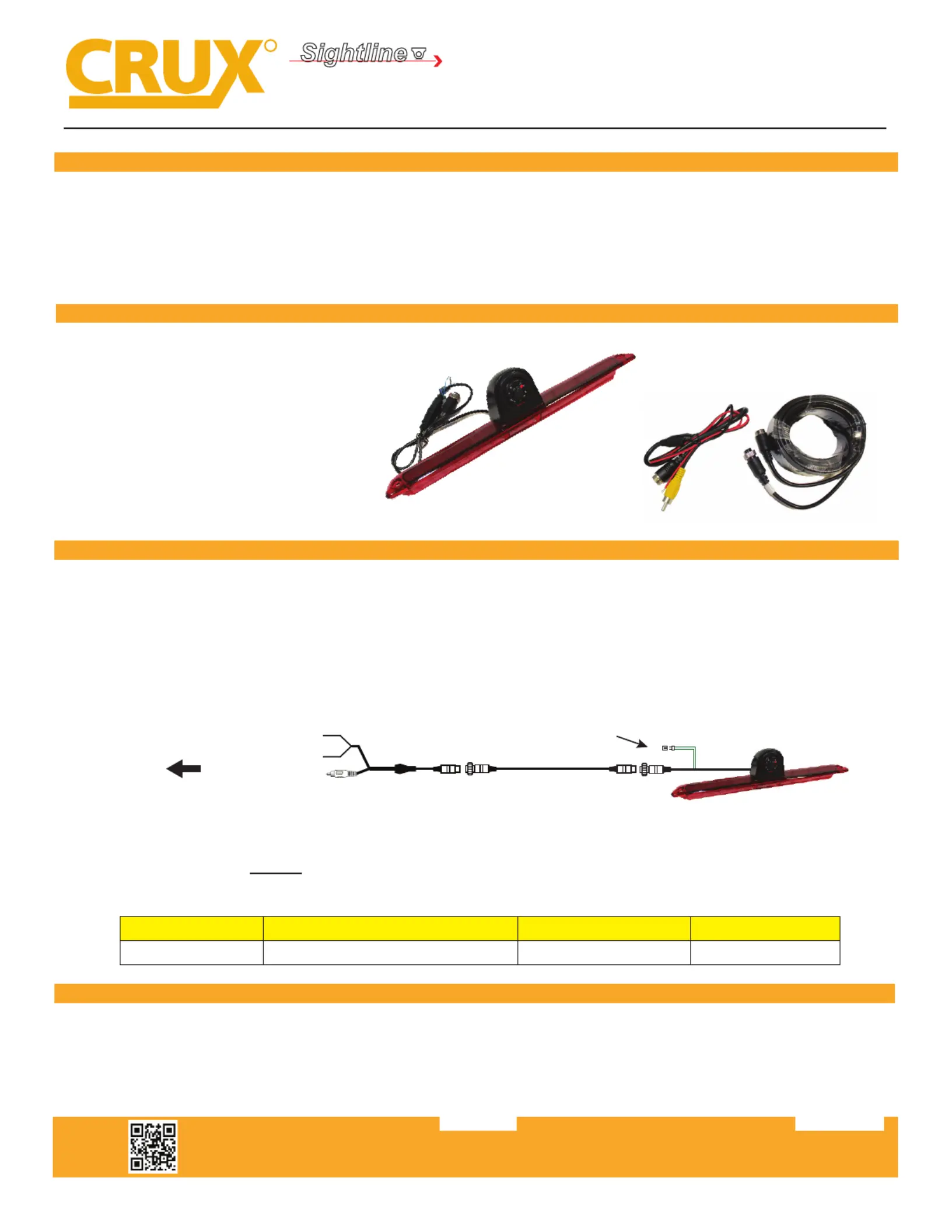

CMB-18S
Third Brake Light Camera for
MERCEDES BENZ SPRINTER Van 2007 - 2017
- Replaces the factory third brake light lens to maintain the OEM look.
- With 6 Infra Red LEDs for night me use.
- Uses 4-pin aviaon type water resistant connectors.
- With selectable parking guide lines ON or OFF.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Third Brake Light camera
2. 33’ extension cable
3. 4-pin aviaon connector to RCA adapter
INSTALLATION INSTRUCTIONS:
1. Remove the factory third brake light lens.
2. Run the extension cable provided towards the radio.
3. Plug the 4-pin aviaon connector of the extension cable to the camera cable.
4. Make the power and video connecons at the radio.
5. Decide if the parking guide lines will be used or not. See below for instrucons on how to turn it ON or OFF.
5. Test the camera prior to reinstalling in the third brake light locaon.
VEHICLE APPLICATIONS:
MERCEDES BENZ
2007 - 2017 Sprinter Van
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
33’ Extension Cable
RED Wire Camera
Power +12V
Ground
Video Output
Green Wire
with jumper
Parking Guideline ON/OFF
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1002201
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color With Jumper Without JumperFuncon
Green (jumper) ON (default) OFFParking Lines
