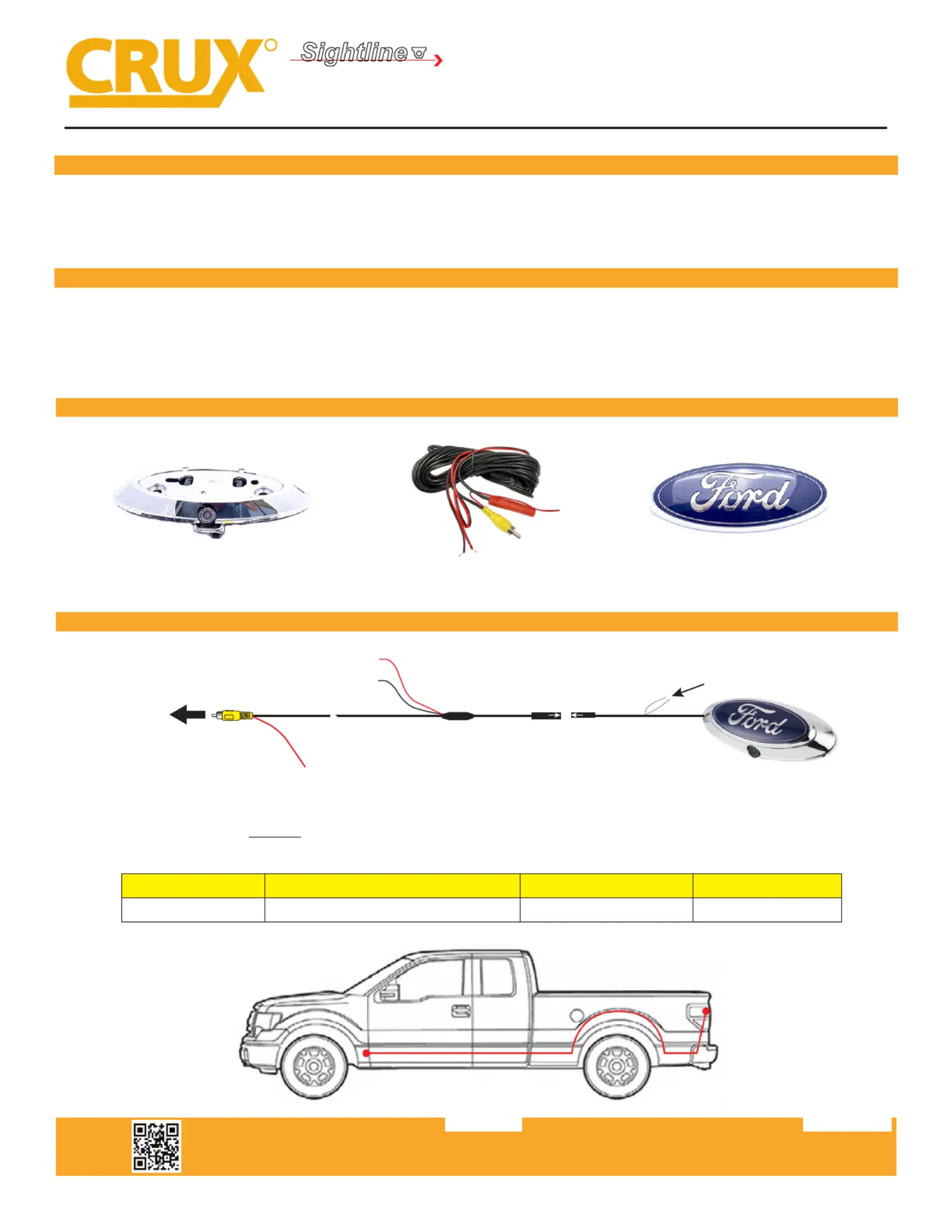

- Specially designed for the Ford truck for an OEM look.
- 160 degree wide view angle for excellent visibility.
- Super CMOS technology provides a sharper picture day and night.
PRODUCT FEATURES:
PARTS INCLUDED:
CFD-03E CAMERA BASE EXTENSION CABLE OEM FORD EMBLEM
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.121820
CFD-03E
FORD Emblem Camera
for Select Ford Trucks
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
WIRING DIAGRAM:
1 / 2
VEHICLE APPLICATIONS:
FORD
2004 - 2014 F-150
2008 - 2016 F-250 / F-350 / F-450
2009 - 2012 Flex
WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
