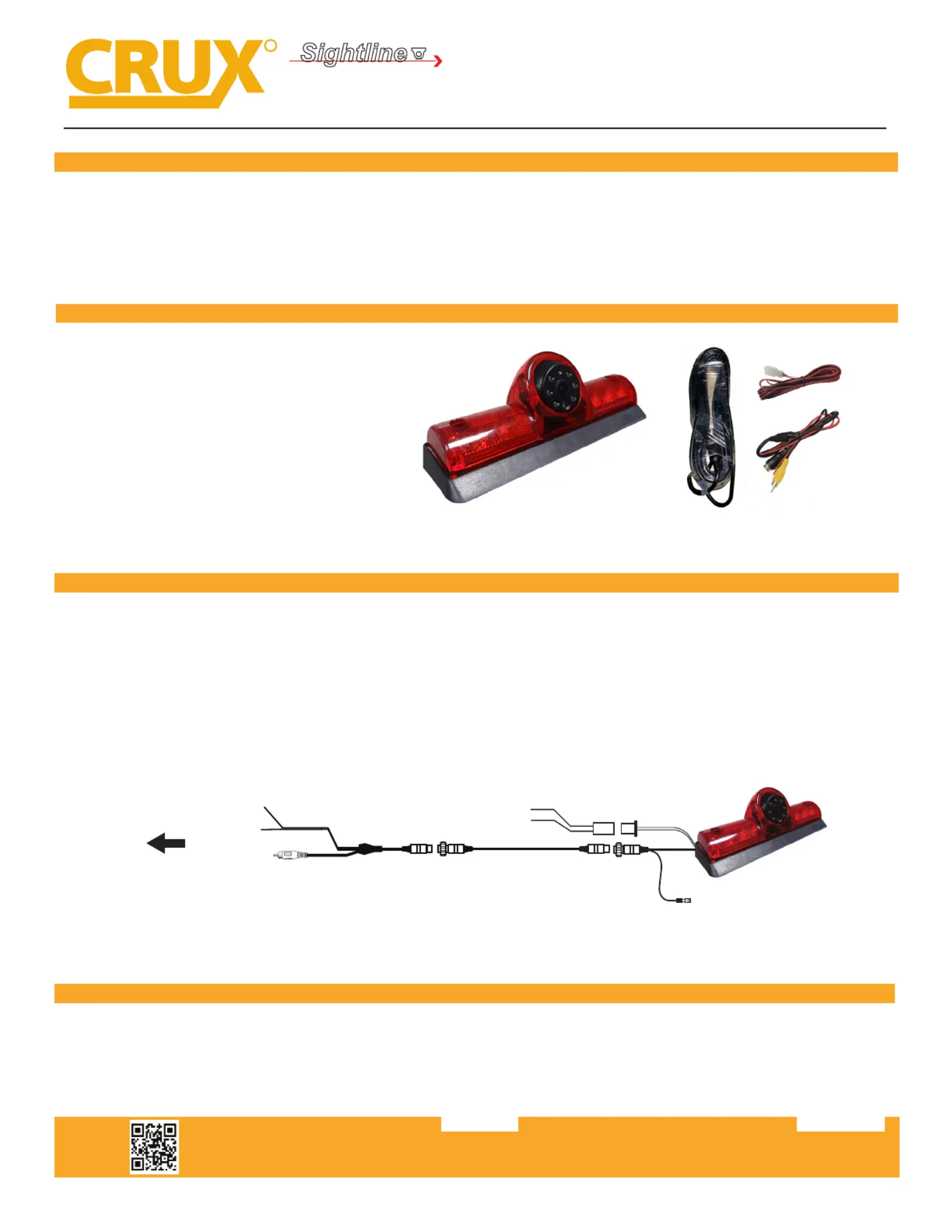

CNS-03V
Third Brake Light Camera for
NISSAN NV Van 2012 - 2018
- Replaces the factory third brake light to maintains the OEM look.
- LED brake lights included.
- 6 Infra Red LEDs for night me use.
- With Built-in Microphone.
- Uses 4-pin aviaon type water resistant connectors.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Third Brake Light camera
2. 33’ extension cable
3. Power connecon cable X2
4. 4-pin aviaon connector to RCA adapter
5. Mounng screws
6. Male to Male RCA adapter
INSTALLATION INSTRUCTIONS:
1. Remove the factory third brake light.
2. Tap power and ground from the factory brake light harness to the red and black wires from the camera.
3. Run the extension cable provided towards the radio.
4. Plug the 4-pin aviaon connector of the extension cable to the camera cable.
5. Make the power and video connecons at the radio.
6. Test the camera prior to reinstalling in the third brake light locaon.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.032621
VEHICLE APPLICATIONS:
2012 - 2018 NV 1500, 2500 & 3500
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
Brake Light Power 12V
BLACK Wire Ground
33’ Extension Cable
RED Wire Camera Power 12V
Ground
Video Input
Green wire (parking lines)
Connect = display parking lines
Disconnect = no parking lines
(power cycle the camera after selecting the option)
