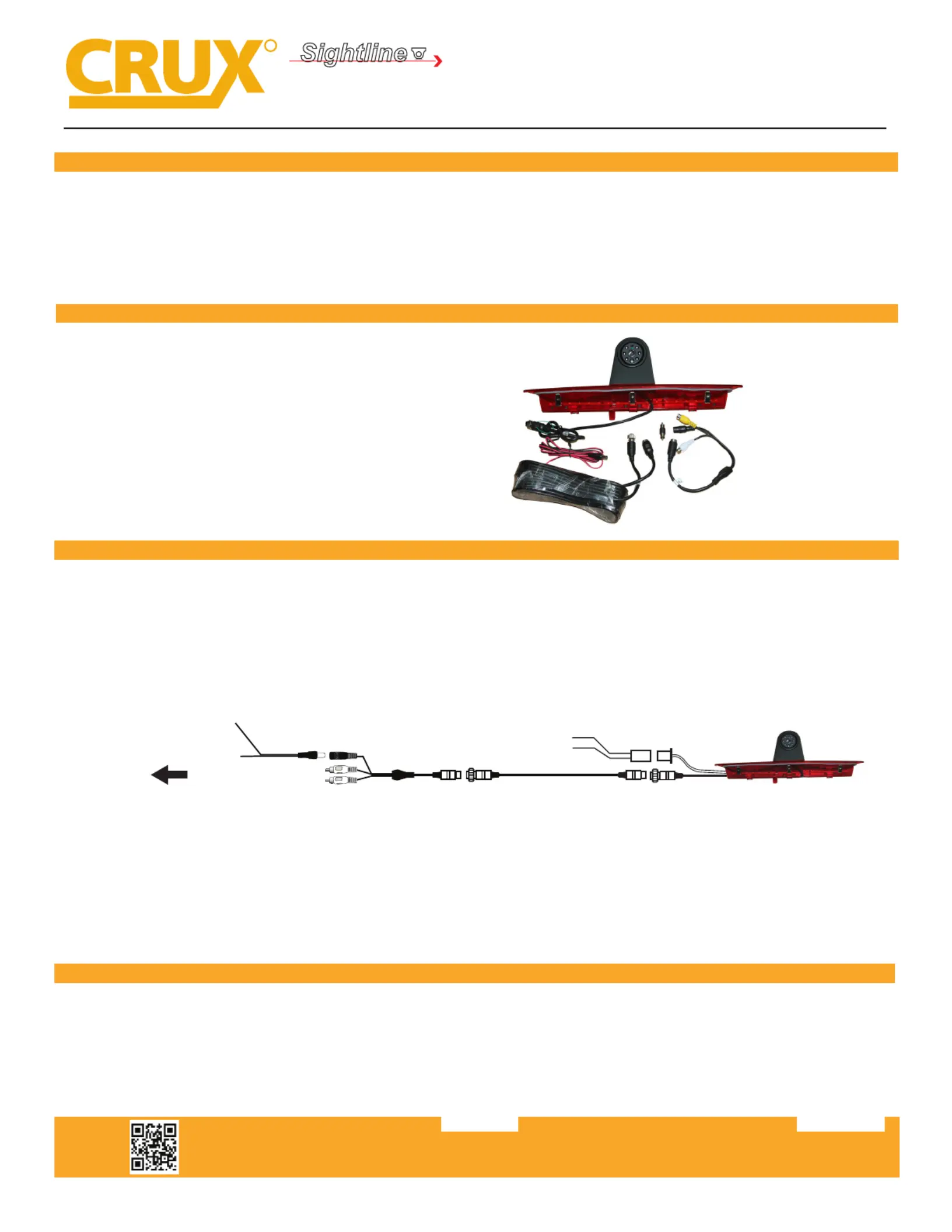

CFD-05V
Third Brake Light Camera for
FORD TRANSIT Full Size Vans 2014 - 2015
- Replaces the factory third brake light to maintain the OEM look.
- LED brake light included.
- 6 Infra Red LEDs for night me use.
- With built-in microphone.
- Uses 4-pin aviaon type water resistant connectors.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, Power Plug A will
not longer be used. If you will be tapping power from the reverse light +12V, power plug B will no longer be used. With
either connecon the Black GROUND wire needs to be connected to a solid chassis ground. For vehicles with manual
transmission, we recommend tapping +12V power from the reverse light.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Third Brake Light camera
2. 33’ extension cable
3. Power connecon cable X2
4. 4-pin aviaon connector to RCA adapter
5. Male to Male RCA adapter
INSTALLATION INSTRUCTIONS:
1. Remove the factory third brake light.
2. Run the extension cable provided towards the radio.
3. Plug the 4-pin aviaon connector of the extension cable to the camera cable.
4. Make the power and video connecons at the radio or at the brake light.
5. Test the camera prior to reinstalling in the third brake light locaon.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020419
VEHICLE APPLICATIONS:
2014 - 2015 Transit Van
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
RED Wire A Camera Power 12V
BLACK Wire Ground
33’ Extension Cable
RED Wire B Camera Power 12V
Ground
MIC Output
Video Output
Power Plug B
Power Plug A
FORD
