A 91311
.cruxinterfacing.com
rev. 407012
1 of 8
R IO EPLA NTAD R CEME
SW RET TIO NC EN
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains OnStar and chime functions.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:

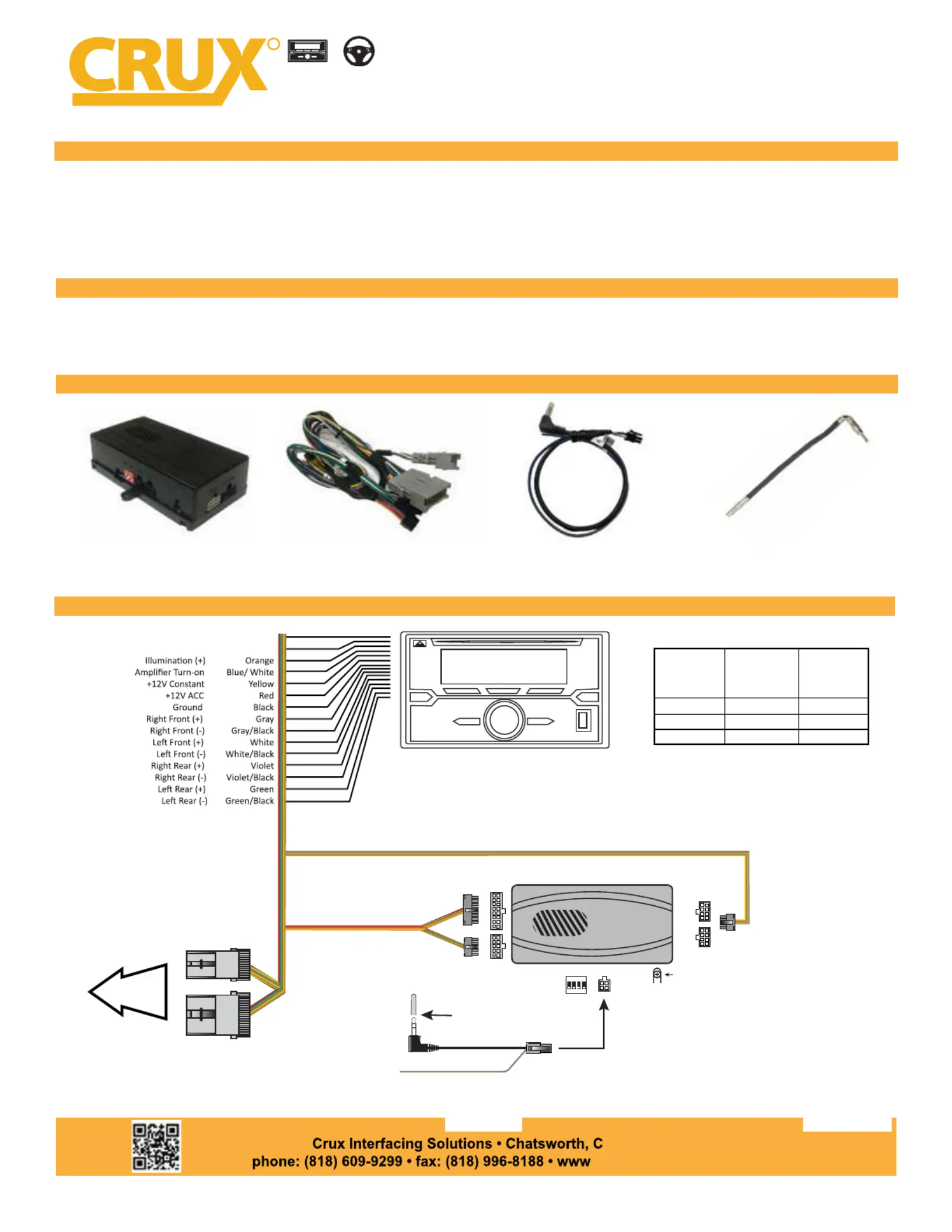

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Gear Purple/White
Parking Brake Yellow/Black
TO FACTORY
HARNESS
24-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
10-Pin
Connector
SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermaket
radio SWC wire or
3.5mm port
SOOGM-15
Radio Replacement with OnStar & SWC Retention
for GM Class II Vehicles
SOOGM-15 Module SOOGM-15 Harness SWC Cable Antenna Adapter
NOTES:
1. The Front and Rear fading are not retained on Y-91 Bose System.
2. The OnStar volume output is defaulted to low gain.
3. Does not retain rear seat volume controls.
PARTS INCLUDED:
Solid Red & Blue PASS PASS
Slow Red Flash FAIL PASS
Slow Blue Flash PASS FAIL
LED Light
CRUX Module LED Feedback
POWER
Vehicle
Programming
Section
