RAD IO REP LAC EME NT
SWC RE TEN TIO N
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN V2 (LIN) Bus vehicles while functioning with an aftermarket radio.
- Retains OnStar functionality.
- Retains all chime functions.
- Retains OEM Auxiliary Input.
- Retains Factory Bluetooth in Vehicles 2008-upwards if equipped with the new OnStar device.
- Retains factory Steering Wheel Controls via built-in, preprogrammed interface.
- Retains RAP (Retained Accessory Power).
- Includes factory backup camera connection for the IO3 system. (vehicles with IO4, IO5 & IO6 systems can be hard
wired to retain the OEM camera. See page 3)
PRODUCT FEATURES:
PARTS INCLUDED:

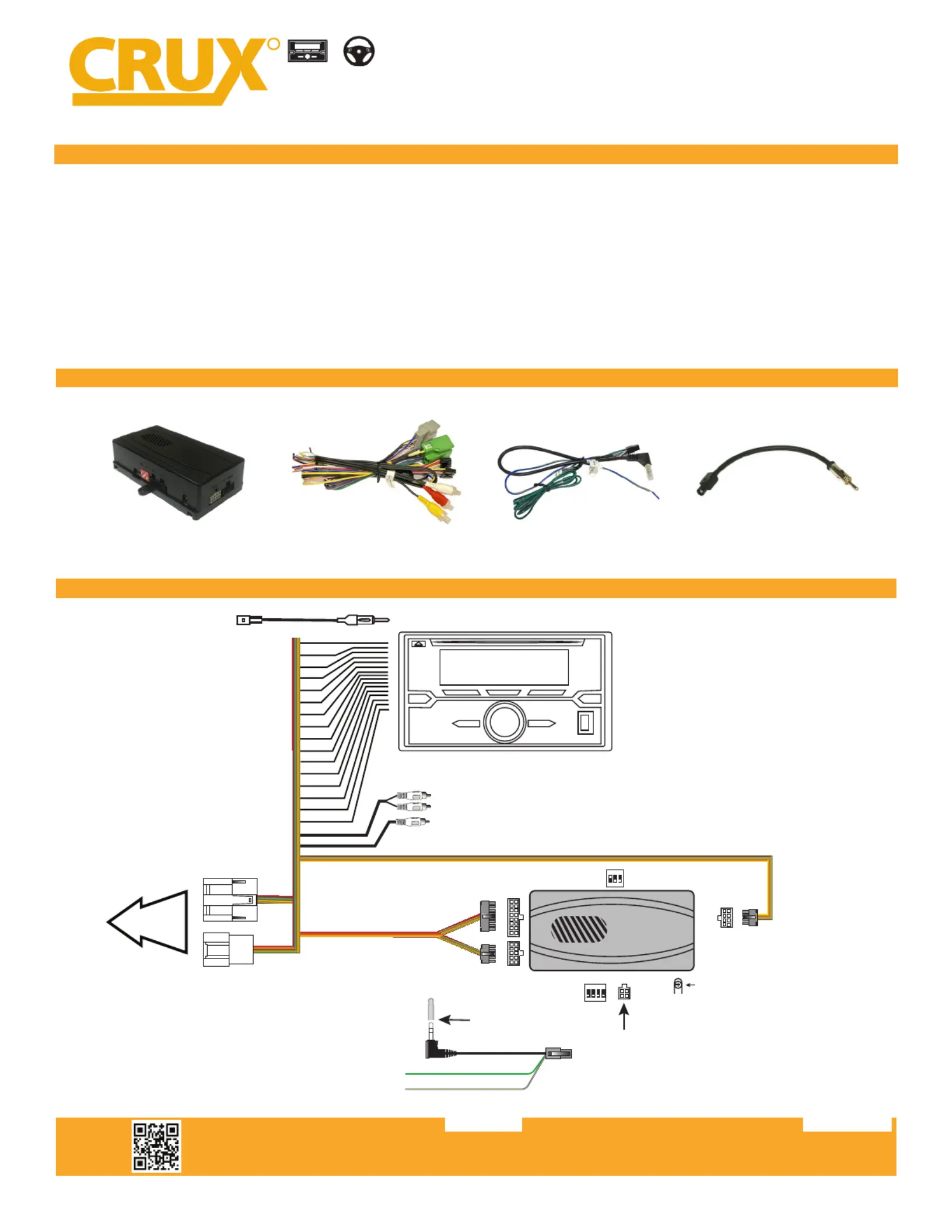

INSTALLATION DIAGRAM:
SOOGM-19L MODULE SOOGM-19L HARNESS SWC CABLE ANTENNA ADAPTER
SOOGM-19L
OnStar Radio Replacement Interface with Steering Wheel
Control Retention for GM LAN v2 (LIN) Bus Vehicles 2014 - 2018
AFTERMARKET
RADIO
Reverse Red/White
TO FACTORY
HARNESS
16-Pin Green
Connector
20-Pin Gray
Connector
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
Audio Input
Rear Camera (IO3)
LIN BUS (Green/Black)
Antenna Adapter
(Included)
24-Pin
Connector
8-Pin
Connector
NON
BOSE
10-Pin
Connector
SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
1 2 3
ON
VR Activation
for OnStar (set DIP#1 to ON)
JVC/Kenwood (Blue / Yellow)
