Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0720221 of 3
R O P LA TADI RE CEM EN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRC Track, Seek.P
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
- Retains factory backup camera.*
- Retains factory backup sensors / park assist system.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:

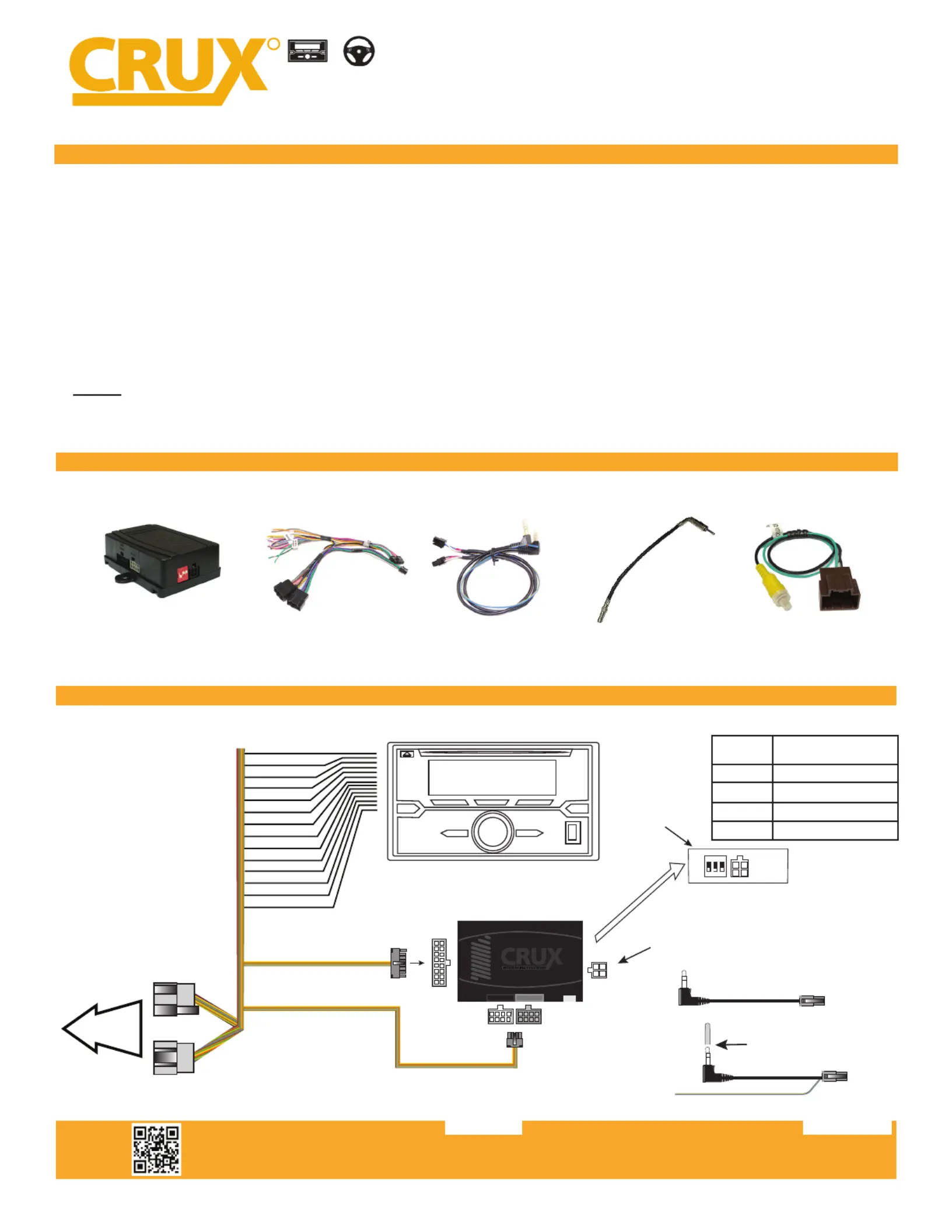

INSTALLATION DIAGRAM:
SWRGM-49 MODULE SWRGM-49 HARNESS SWC CABLES ANTENNA ADAPTER Backup Camera Harness
AFTERMARKET
RADIO
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Reverse Red/White
Illumina on (+) Orange
Amplifier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
Option A:
Option B:
TO FACTORY
HARNESS
16-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
Insulate with tape
if not being used
Non Bose Bose
See page 2 for Audio
connection options
SWRGM-49
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Vehicles 2006-2015
NOTE:
Does not retain the factory backup camera on models that show the camera image on the rearview mirror.
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
