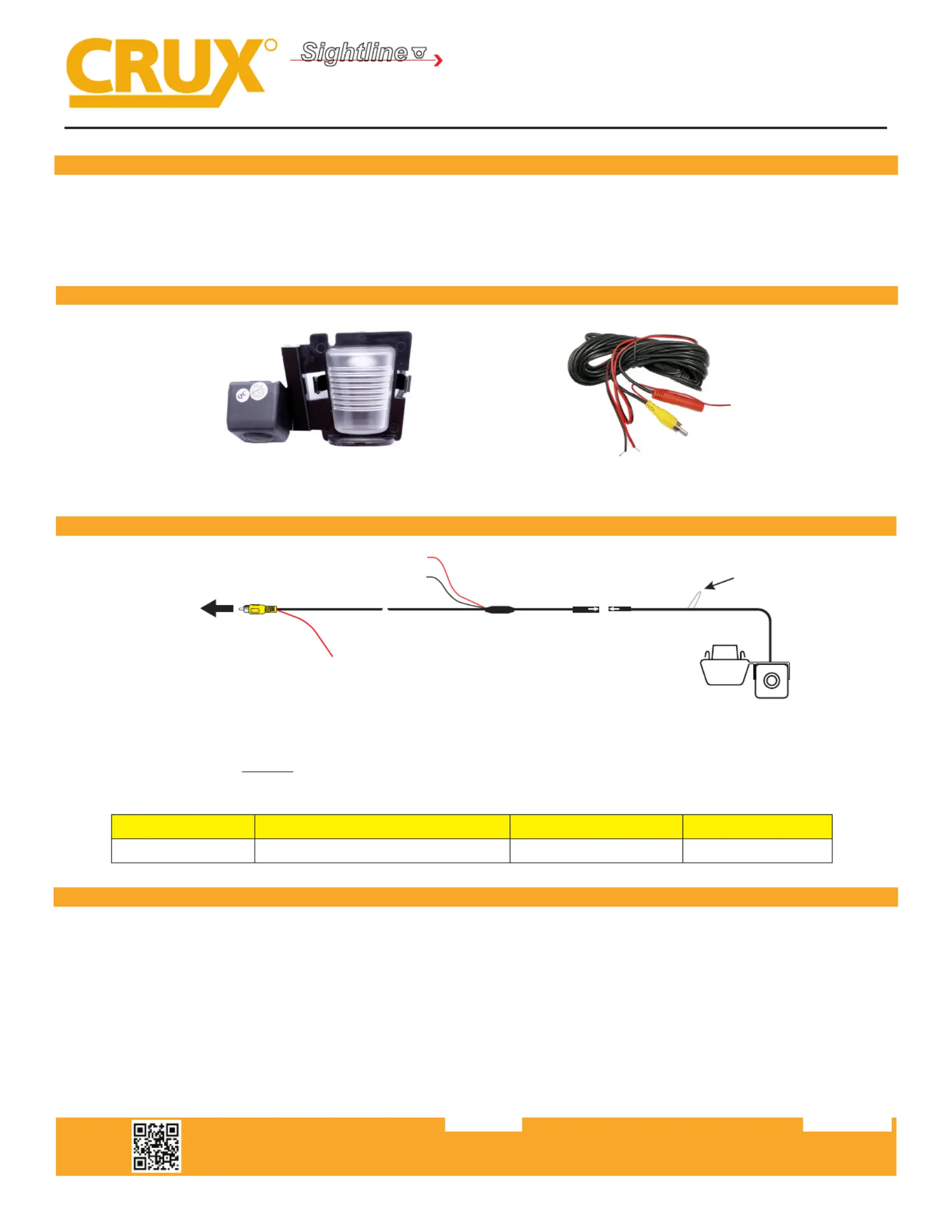

CRUX CCH-01W Brugsanvisning
Her er CRUX CCH-01W (Bakkamera) brugervejledning. 1 sider på sprog Engelsk med en vægt på 374,555.0 Mb. Hvis du ikke kan finde svar på dit problem Spørg vores community.
Side 1/1
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100220
CCH-01W
License Plate Light Camera
for Jeep Wrangler 2007 - 2017
- Installs on your Wrangler’s license plate bracket, keeping the rugged appeal of your Jeep.
- 120° wide viewing angle.
- 0.4 Lux minimum for night driving.
- Selectable Parking Guide Line ON or OFF.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CCH-01W CAMERA EXTENSION CABLE
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
LICENSE PLATE
CAMERA
1. Remove the stock license plate light at the back of the vehicle.
2. Install the camera assembly to where the stock license plate light was.
3. Connect the built-in license plate light of the camera to the stock license plate power connecon.
4. Connect the power of the camera to your reverse light wires:
Red wire to +12V
Black wire to Ground
5. Connect the video cable of the camera to the extension cord provided.
6. Run the video extension cable to the back of the radio.
7. Connect the video cable to your in-dash aermarket mulmedia or navigaon receiver’s camera input.
8. Put the gear in reverse to see the image from the camera.
INSTALLATION PROCEDURE:
1 of 1
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
