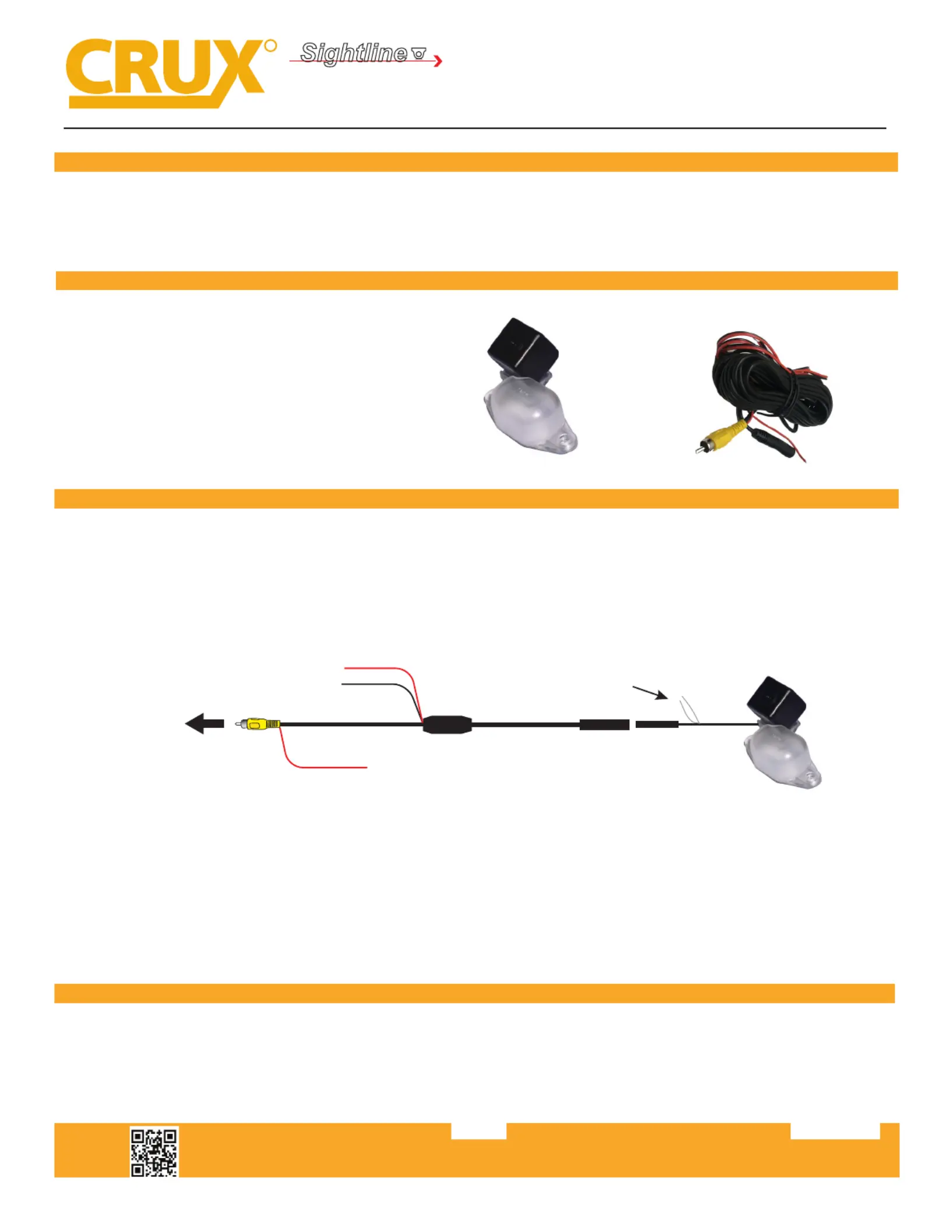

CNS-01N
License Plate Light Camera for
NISSAN NV200 Van 2010-2017
- Replaces factory license plate light assembly.
- Selectable Parking Guide Line ON or OFF.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. License Plate Light camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Carefully remove the factory license plate light.
2. Run the camera cable to the inside of the cabin towards the radio.
4. Make the power and video connecons to the rear view camera integraon interface or the aermarket radio.
5. Test the camera for funconality. Decide whether the parking guide line will be used or not. See below for instrucons on how
to turn it ON/OFF.
6. Install the new license plate light camera.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020519
VEHICLE APPLICATIONS:
NISSAN
2010 - 2017 NV200
