Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.092021

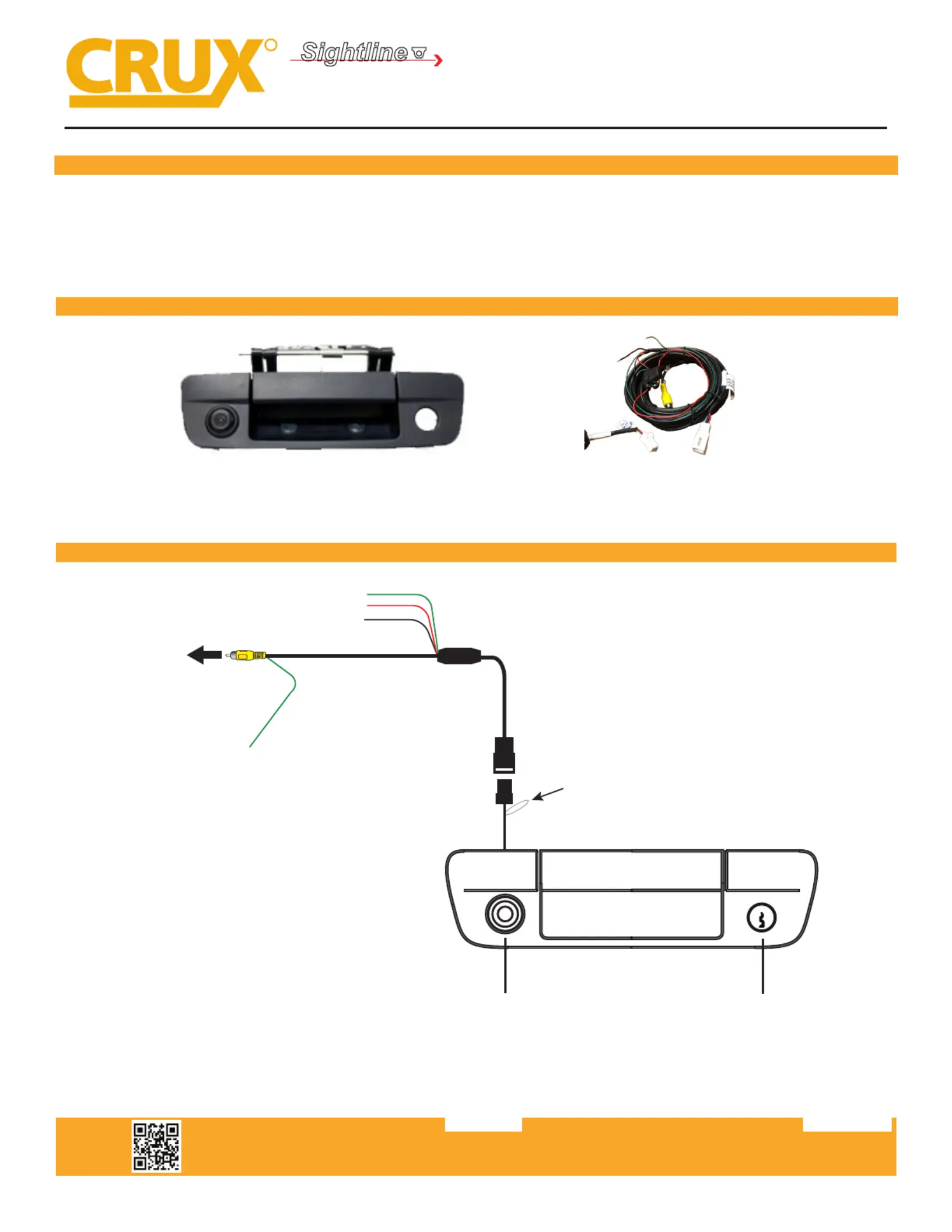

CDR-02
Tailgate Handle Camera for
RAM Trucks 2009 - 2017
1 of 2
- Tailgate handle replacement with built-in backup camera.
- Maintains the OEM look.
- With selectable parking guide lines ON / OFF.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CDR-02 Tailgate Handle Camera 26’ Extension Cable
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
Green wire (B)*
RAM TAILGATE
HANDLE
CAMERA
KEY CYLINDER
26 Ft. Coax Cable
Green wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
(ON / OFF see next page)
Green wire (B)*
*NOTE: The camera needs a +12V trigger. Power the camera from the reverse light wire using RED Wire A. GREEN Wire
B is a pass-through wire, you can use this wire to connect a reverse trigger from the camera locaon to the RCA. Tap the
Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
