Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: June 3, 2019 3:29 PM

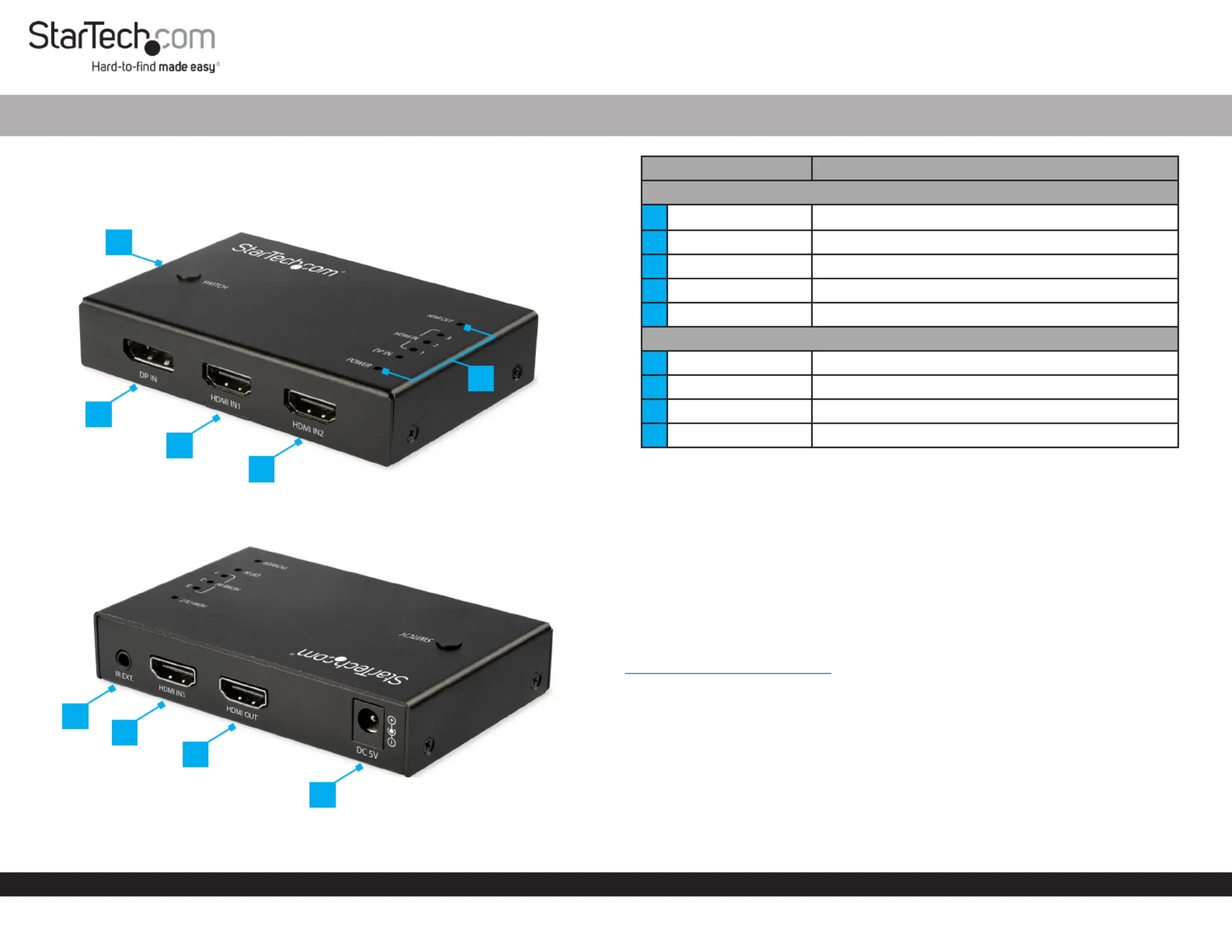

Product Diagram (VS421HDDP)
4x1 HDMI +DP to HDMI Converter Switch - 4K 60Hz
Port Function
Front
1SWITCH Button • Cycle through HDMI and DisplayPort Sources
2DP IN Port • Connect a DisplayPort Source Device
3HDMI IN1 Port • Connect an HDMI Source Device
4HDMI IN2 Port • Connect an HDMI Source Device
5LED Indicators • Indicates the current status of the Device and Ports
Rear
6IR EXT. Port • Connect the IR Receiver
7HDMI IN3 Port • Connect an HDMI Source Device
8HDMI OUT Port • Connect an HDMI Display Device
9DC 5V Power Port • Connect a Power Source
Requirements
• HDMI Source Devices (up to 4K @ 60Hz) x 3
• HDMI M/M Cables (sold separately) x 4
• DisplayPort Source Device (up to 4K @ 60Hz) x 1
• DisplayPort M/M Cable (sold separately) x 1
• HDMI Display Device x 1
Note: Premium High Speed HDMI and DisplayPort 1.2 Cables are required for optimal
performance at 4K 60Hz.
For the latest requirements, please visit
www.startech.com/VS421HDDP.
Installation
Note: Ensure your and HDMI DisplayPort Source Devices HDMI Displayand the are
powered o before you begin the installation.
1. Connect an (sold separately) to an on the HDMI Cable Output Port HDMI Source
Device HDMI IN Ports Converter Switch and to one of the on the .
2. Repeat step #1 for each of your remaining .HDMI Source Devices
Note: Each is numbered, please take note of which number is assigned to HDMI Port
each .HDMI Source Device
1
5
2
3
4
6
7
8
9
