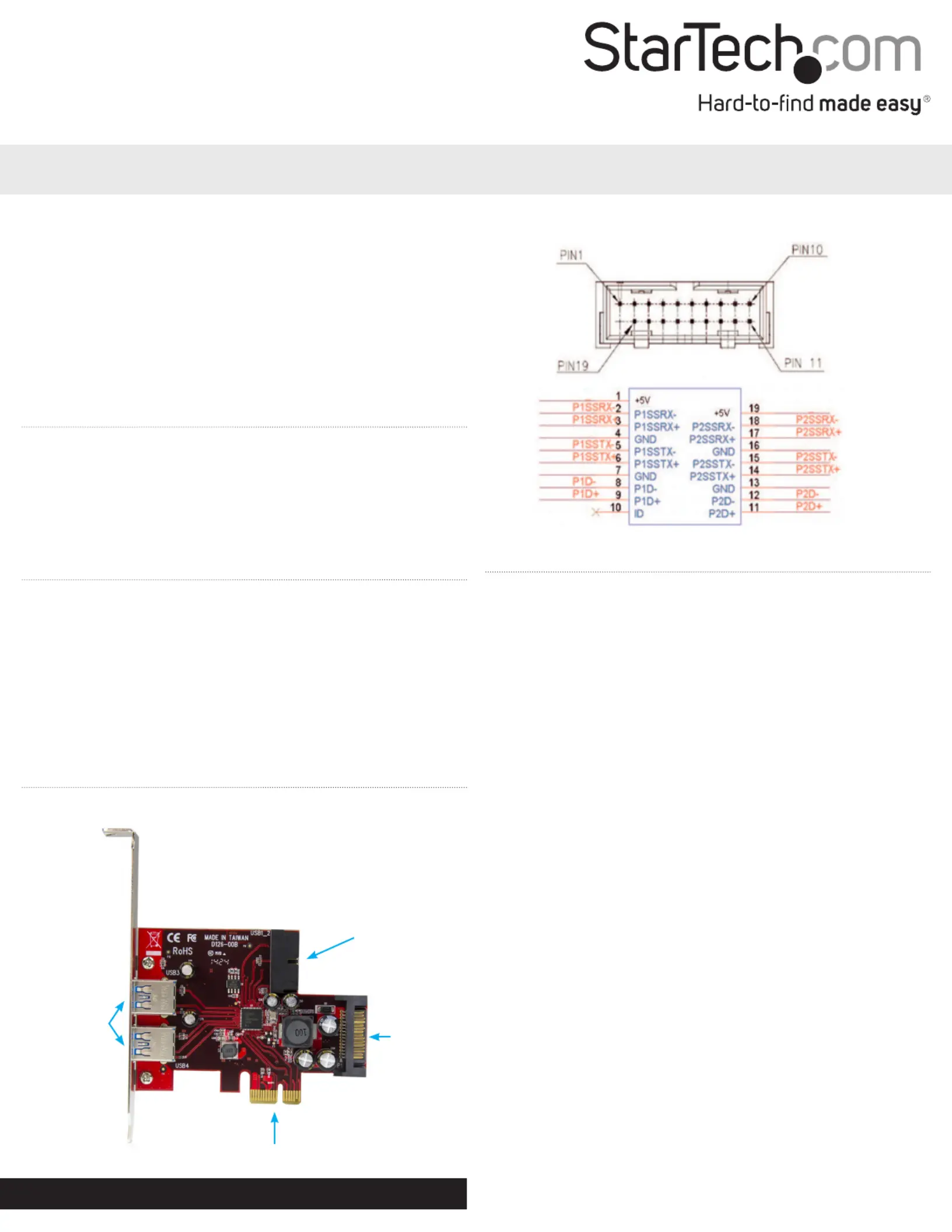

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 01/21/2015
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1x 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int
• 1x Low-Prole Bracket
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer with an available PCI Express p1-x1 slot
or higher (x4, x8, x16)
• SATA power connector (recommended, but optional)
• Optional - 19-pin internal USB 3.0 2-port header from computer
motherboard or computer case
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64),
Windows Server® 2012, 2008 R2, Linux 2.6.31 and up (Tested up to
3.5)
Product Overview
Top View
PEXUSB3S2EI
4 Port PCI Express SuperSpeed USB 3.0 Card with UASP - 2 Ext 2 Int w/ SATA Power
19-pin Internal
USB 3.0 2-port
Header Male
SATA Power
USB 3.0 Ports
Type “A”
Female x2
PCI Express x1
Installation
Hardware Installation
WARNING!
PCI Express cards, like all computer equipment, can be severely
damaged by static electricity. Be sure that you are properly
grounded before opening your computer case or touching your PCI
Express card. StarTech.com recommends that you wear an anti-
static strap when installing any computer component. If an anti-
static strap is unavailable, discharge yourself of any static electricity
build-up by touching a large grounded metal surface (such as the
computer case) for several seconds. Also be careful to handle the PCI
Express card by its edges and not the gold connectors.
1. Turn your computer o and any peripherals connected to the
computer (i.e. printers, external hard drives, etc.). Unplug the
power cable from the rear of the power supply on the back of the
computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. (See your computer
system documentation for details).
3. Locate an open PCI Express p1-x1 slot and remove the metal cover
plate on the rear of the computer case. (See your computer
system documentation for details).
Note: This card will work in PCI Express slots of additional lanes (i.e.
x4, x8, or x16 slots).
4. Gently insert the card into the open PCI Express slot and fasten
the bracket to the rear of the computer case.
Note: If installing the card into a small form-factor/low-prole
desktop system, replacing the pre-installed standard-prole bracket
with the included low-prole (half-height) installation bracket may
be necessary.
5. It is recommended you connect the optional SATA power using an
available SATA power connector from the computers power supply.
Note: It is recommended that SATA power is connected to the card
Internal USB 3.0, 2-Port Header Pinout
Problemløsning StarTech.com PEXUSB3S2EI
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 18 mm |
| Dybde: | 92 mm |
| Højde: | 120 mm |
| Vægt: | 53 g |
| Brugervejledning: | Ja |
| Produktfarve: | Metallic, Red |
| Pakkevægt: | 143 g |
| Pakkedybde: | 143 mm |
| Pakkebredde: | 174 mm |
| Pakkehøjde: | 33 mm |
| Opbevaringstemperatur (T-T): | -25 - 70 °C |
| Relativ luftfugtighed ved drift (H-H): | 20 - 80 % |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte: | 2 |
| Driftstemperatur (T-T): | 5 - 50 °C |
| Harmoniseret systemkode (HS): | 84733020 |
| Bæredygtighedscertifikater: | CE, RoHS |
| Hovedkassen højde (udvendigt): | 316 mm |
| Hovedkassens længde (udvendigt): | 495 mm |
| Hovedkassens bredde (udvendigt): | 383 mm |
| Værtsgrænseflade: | PCIe |
| Intern: | Ja |
| Drivere inkluderet: | Ja |
| Produkter pr. hovedkasse (udvendigt): | 60 stk |
| Maksimal driftstilstand: | 3 m |
| Gennemsnitstid mellem fejl (MTBF): | 1920042 t |
| Understøttede operativsystemer til servere: | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Monteringsbeslag inkluderet: | Ja |
| Output-grænseflade: | SATA, USB 3.2 Gen 1 (3.1 Gen 1) |
| Understøtter UASP: | Ja |
| Maksimal kabellængde: | 3 m |
| Udvidelseskort standard: | PCI 2.0 |
| Udvidelseskort formfaktor: | Fuld højde/ lav profil |
| Dataoverførselshastighed (maks.): | 5 Gbit/sek. |
| Chipsæt: | Renesas / NEC - µPD720201 |
| Antal interne SATA-porte: | 1 |
