- Retains factory features in select GM LAN 29 Bit trucks and SUVs while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRC Track, Seek.P
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2444 .A included in kit
- Retains factory back-up camera.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:

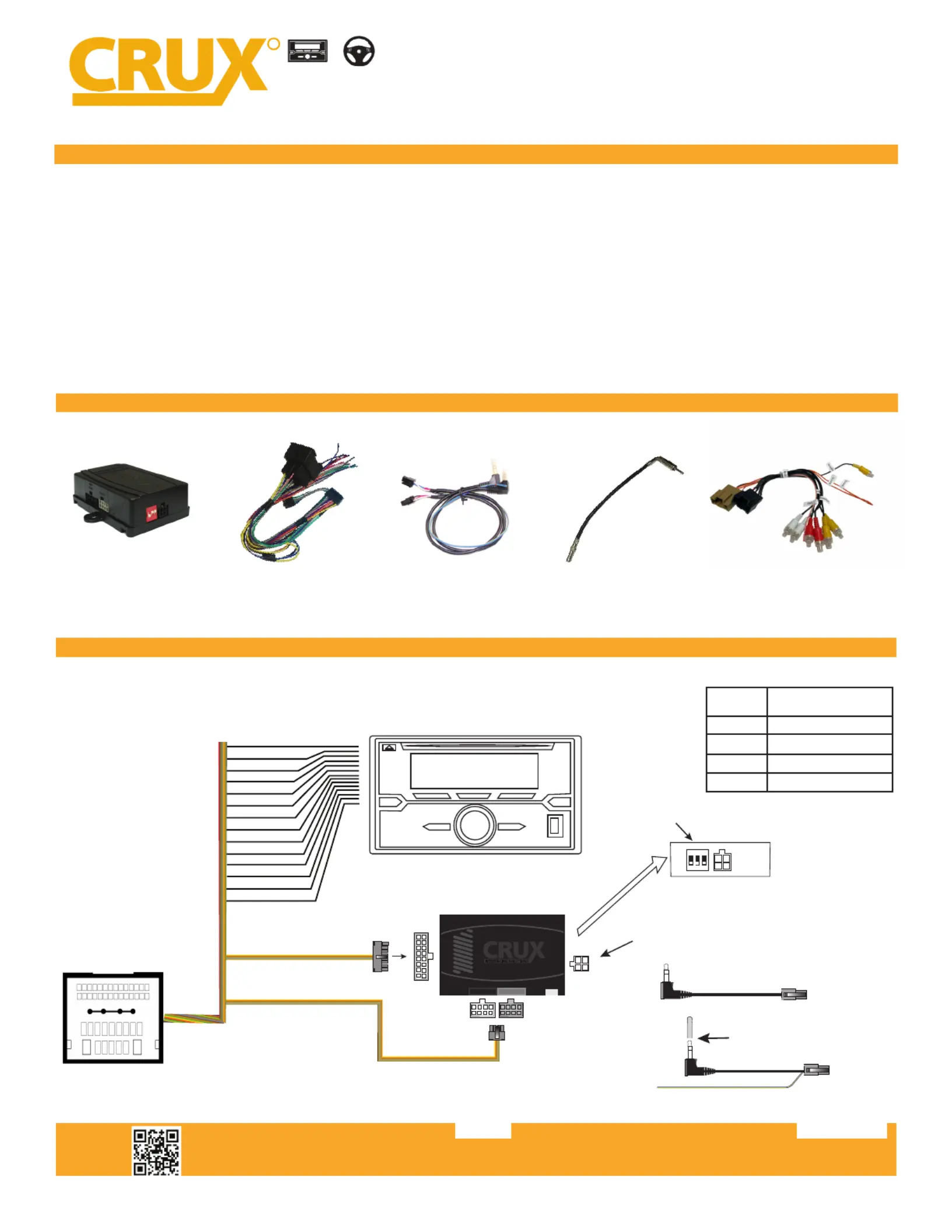

INSTALLATION DIAGRAM:
SWRGM-49A MODULE SWRGM-49A HARNESS SWC CABLES ANTENNA ADAPTER
BACKUP CAMERA &
RSE RETENTION HARNESS
AFTERMARKET
RADIO
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Reverse Red/White
Illumina on (+) Orangeti
Amplifier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) Whiteft
Le Front (-) White/Blackft
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Greenft
Le Rear (-) Green/Blackft
Option A:
Option B:
16-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
Insulate with tape
if not being used
Non Bose Bose
See page 2 for Audio
connection options
SWRGM-49A
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Trucks & SUVs 2012-2014
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
44 Pin Connector
rev.03282023
