Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/07/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1xVGAoverCat5RemoteReceiver

• 1xPowerAdapter

• 1xInstructionManual

System Requirements

• UTPEseriesvideotransmitter/splitter(i.e.ST124UTPE/ST128UTPE)

• VGAenableddisplaydevice(i.e.monitor,projector,etc.)

• AvailableACelectricaloutlet

STUTPRXL / STUTPRXLGB / STUTPRXLEU

VGA Video Extender over Cat 5 Remote Receiver (UTPE Series)

Installation

Connecting the STUTPRXL Remote Receiver to the transmitter/

splitter:

ConnecttheCat5signalsourcecablerunningfromtheUTPE

seriestransmitter/splittertotheRJ45connectoratoneendofthe

RemoteReceiver.

Connecting the STUTPRXL Remote Receiver to the VGA display/

monitor:

ConnectaVGAmale/malecablefromthedisplaydevicetothe

VGAconnectorontheRemoteReceiver.

Powering the Remote Receiver:

Connectthepoweradapter(provided)totheportmarkedDC

12VontheRemoteReceiver.ConnecttheoppositeendtoanAC

electricaloutletorothersuitablepowersource.ThePowerLEDwill

lightup.

Adjusting image quality:

Oncethenecessaryconnectionshavebeenmade,poweronthe

VGAdisplay/monitor.OnthebottomoftheRemoteReceiver,are

adjustmentdialsforEQ(sharpness)andGAIN(brightness).Using

asmallPhillipsorslot-headscrewdriver,adjustthesharpnesswith

thedialmarkedEQinaclockwisedirection.Similarly,turnthe

adjustmentdialmarkedGAINinaclockwisedirection,toadjust

thebrightnessofthedisplayedimage.

*actual product may vary from photos

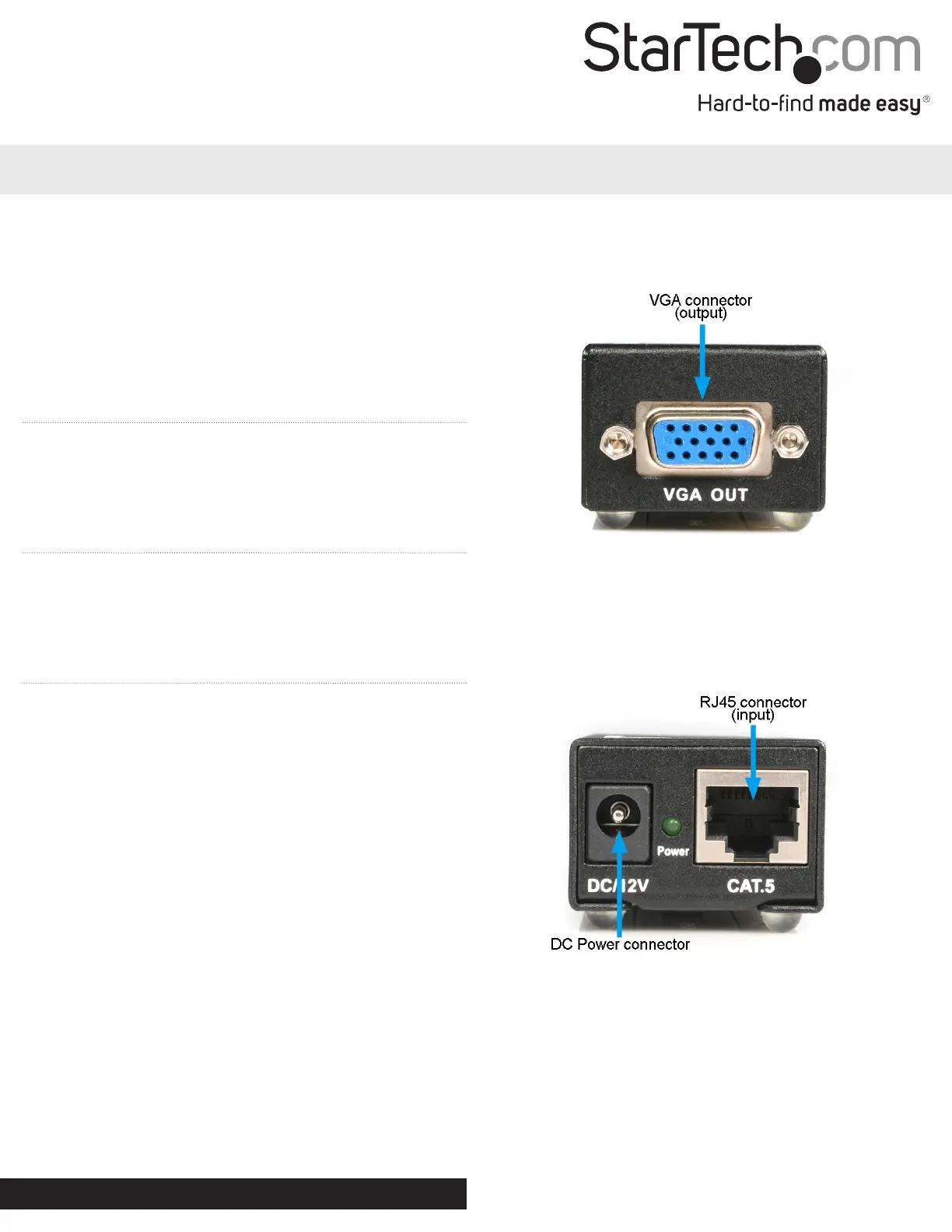

Front View

Rear View

Problemløsning StarTech.com STUTPRXLEU

Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp

Specifikationer

Type:	AV sender
Bredde:	13.8 mm
Dybde:	10 mm
Højde:	2.5 mm
Vægt:	476.3 g
Produktfarve:	Sort
Strøm:	0.6 A
Pakkedybde:	130 mm
Pakkebredde:	152 mm
Pakkehøjde:	63 mm
Maksimal opløsning:	1920 x 1200 pixel
Dimensioner (BxDxH):	13.8 x 10 x 2.5 mm
DC-in-stik:	Ja
Maksimal overførselsafstand:	300 m
Ekstern strømadapter:	Ja
RJ-45 indgangs-porte:	1
VGA (D-Sub) indgangsporte:	1
Understøttede kabeltyper:	Cat5
