Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Manual Revision: January 9, 2023

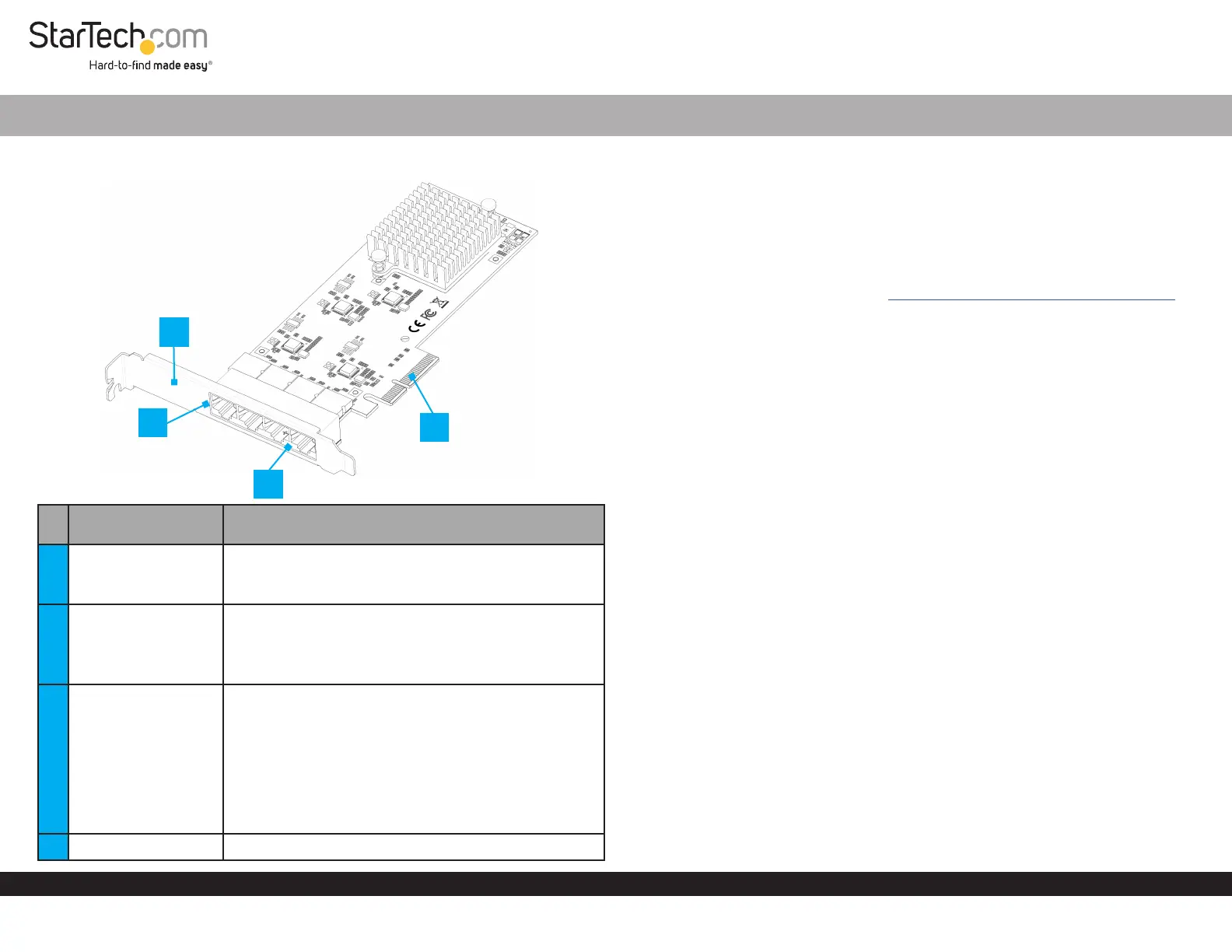

Product Diagram (PR42GI-NETWORK-CARD)
Port/LED/Connector Function
1 Bracket
• Secures the card to the Host Computer Case
• The Full Prole Bracket comes pre-installed
• The Low Prole Bracket is included
2 4x Ethernet Ports
• Connect a Network Cable to the Network Card
• Supports 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
Note: Ethernet port 1 (P1) is the only port that
supports WoL (Wake-on-LAN).
3 LED Indicators
• Left LED Indicator is Link Speed
• Solid Green: 2.5 Gbps
• Solid Amber: 1 Gbps
• O: 100 or 10 Mbps
• Right LED Indicator is Link Status
• Solid Green: Active link
• Flashing Green: Activity
4 PCIe 2.0 p1-x4 Connector • Insert into a PCI Express Slot on the Host Computer
4-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x4
Package Contents
• 4-Port PCIe 2.5 Gbps Network Card x 1
• Low Prole Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit www.startech.com/PR42GI-NETWORK-CARD
• Host Computer with an available PCI Express 2.0 or greater Slot (x4, x8, or x16)
Installation
Install the PCI Express Card
WARNING!
Static Electricity can severely damage PCI Express Cards. Ensure that you are
adequately Grounded before you open your Host Computer Case or touch the PCI
Express Card. You should wear an Anti-Static Strap or use an Anti-Static Mat when
installing any Host Computer component. If an Anti-Static Strap isn’t available,
discharge any built-up static electricity by touching a large Grounded Metal Surface
for several seconds. Only handle the PCI Express Card by its edges and don’t touch
the gold connectors.
1. Turn o the Host Computer and any Peripheral Devices that are connected to it
(e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the back of the Host Computer.
3. Disconnect any Peripheral Devices that are connected to the Host Computer.
4. Remove the Cover from the Host Computer Case. Consult the documentation that
came with the Host Computer for details about doing this safely.
5. Locate an open PCI Express Slot and remove the corresponding Slot Cover Plate
from the back of the Host Computer Case.
Note: Consult the documentation that came with the Host Computer for details
about doing this safely. This card works in PCI Express x4, x8, or p1-x16 Slots.
6. Gently insert the PCI Express Card into the open PCI Express Slot and fasten the
Bracket to the back of the Host Computer Case.
Note: If you install the PCI Express Card into a Small Form Factor or a Low Prole
Desktop System, it may be necessary to replace the pre-installed standard
Full Prole Bracket with the included Low Prole Bracket.
2
4
1
3
*Product may vary from image
P1
P2
P3
P4
