Quick Install Guide
Packaging Contents
• 1x 2-port mDP to DP MST Hub
• 1x Quick install guide
System Requirements
• Mini DisplayPort 1.2 enabled computer system
• Up to 2 DisplayPort monitors with cabling
Note: Dierent types of displays such as HDMI, DVI and VGA are
supported provided DisplayPort adapters are used. DisplayPort
adapters are not included.
MSTMDP122DP
Multi Stream Transport Hub – Mini DisplayPort™ to dual head DisplayPort MST hub
*actual product may vary from photos
Installation
1. Ensure your computer system and monitors are powered o.
2. Connect the integrated Mini DisplayPort input cable to the Mini
DisplayPort connector on your computer system.
3. Connect up to two DisplayPort monitors to the DisplayPort
output ports on the MST Hub, using your video cabling.
4. Connect the integrated USB power cable to an available USB
power source.
5. Power on your DisplayPort monitors followed by your computer
system.
6. The system will now detect the MST Hub, and add the attached
displays to the Display Settings of the System just as if the
monitors were connected directly to your native video card.

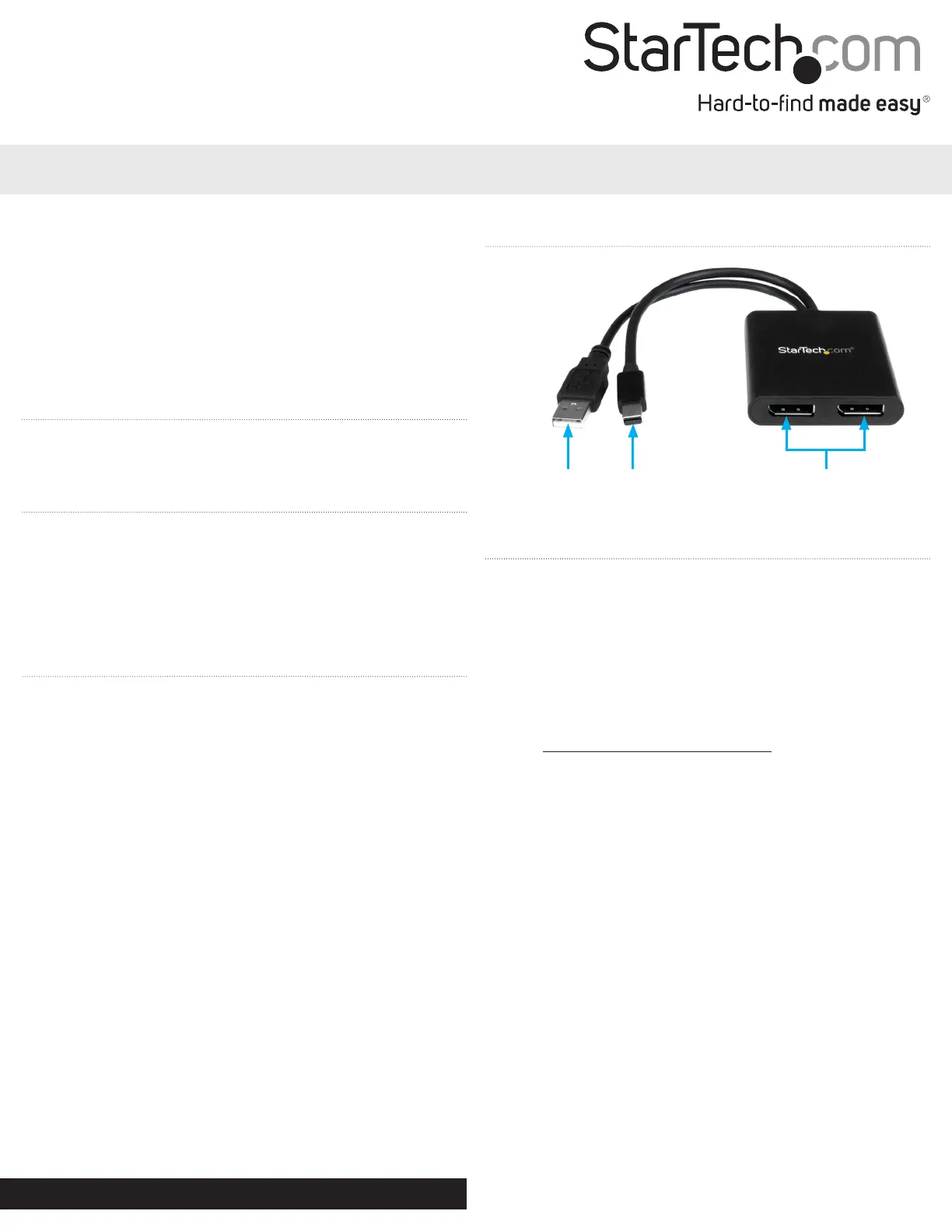

Product Overview
Integrated USB
power cable
Integrated Mini
DisplayPort input
cable
DisplayPort
output ports
Important operation notes
• MST is certied for operation with Microsoft® Windows 10, 8/8.1
and 7 devices.
• MST is currently not supported by other operating systems
such as Mac OS X and Chrome OS™.
• Other operating systems might adopt MST in the
future. Verify MST support with your operating system
manufacturer.
• Operating system support is subject to change. For the
latest requirements, please visit:
www.StarTech.com/MSTMDP123DP.
• After the MST hub has been connected to your computer it may
be necessary to initiate the operation of additional displays from
within your Windows Display Settings.
• The SCAN button resyncs all of the attached displays, and can be
utilized if any of the displays are not detected.
• The MST adapter works with DisplayPort cables up to 15 ft. in
length.
• Certain graphics adapters have limited MST support and will only
output to three displays in total. If more than three monitors are
attached, the fourth will be disabled, including built-in laptop
monitors or touchscreen displays.
• MST shares 21.6Gbps of bandwidth across all attached displays.
Higher resolutions can restrict the bandwidth available for the
remaining ports. Please see our guidelines below for determining
the ideal resolution for your setup.
Problemløsning StarTech.com MSTMDP122DP
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 58 mm |
| Dybde: | 62 mm |
| Højde: | 14 mm |
| Vægt: | 51 g |
| Brugervejledning: | Ja |
| Produktfarve: | Sort |
| Pakkevægt: | 142 g |
| Pakkedybde: | 170 mm |
| Pakkebredde: | 142 mm |
| Pakkehøjde: | 30 mm |
| HD-type: | 4K Ultra HD |
| Opbevaringstemperatur (T-T): | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H): | 50 - 90 % |
| Driftstemperatur (T-T): | 0 - 40 °C |
| Maksimal opløsning: | 3840 x 2160 pixel |
| Husmateriale: | Plast |
| Hurtig installationsvejledning: | Ja |
| Understøttede grafikopløsninger: | 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| Certificering: | CE, FCC, RoHS |
| Kabellængde: | 0.19 m |
| Harmoniseret systemkode (HS): | 85176990 |
| Bæredygtighedscertifikater: | RoHS |
| Hovedkassen højde (udvendigt): | 241 mm |
| Hovedkassens længde (udvendigt): | 501 mm |
| Hovedkassens bredde (udvendigt): | 331 mm |
| Værtsgrænseflade: | Mini DisplayPort |
| Plug and play: | Ja |
| USB-drevet: | Ja |
| Maksimal opdateringshastighed: | 60 Hz |
| Kompatible produkter: | Surface Pro 4\nSurface Pro 3 \nSurface Book |
| Produkter pr. hovedkasse (udvendigt): | 28 stk |
| Videoudgang: | 2x DisplayPort |
| Dataoverførselshastighed: | - Mbit/s |
| Video porttype: | Mini DisplayPort |
| Porte, antal: | 2 |
| Antal videoporte: | 2 |
| Hub-grænseflader: | DisplayPort |
| Chipsæt: | STDP4320 |
