Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 06/13/2011
For the most up-to-date information, please visit: www.startech.com
MCM110SC2 / MCM110SC2GB / MCM110SC2EU
MCM110ST2 / MCM110ST2GB / MCM110ST2EU
10/100 Ethernet to 100Base-FX Multi-Mode Fiber Media Converter - 2KM
Packaging Contents
• 1 x Fiber/Ethernet media converter
• 1 x Power Adapter
• 1 x Instruction Manual
System Requirements
• 10/100Base-TX compatible Ethernet network
• 100Base-FX ber network
• SC multi-mode ber cable
• Available AC electrical outlet
Installation
1. Connect the Ethernet cable to the Fiber Media Converter
“LAN” port.
2. Connect the other end of the Ethernet cable to the router/
switch/computer NIC.
3. Connect the ber cable into the ber receptacle on the
media converter.
4. Plug the provided power adapter into the media converter,
and into an available AC power outlet.
5. Connect the other end of the ber cable into the router/
switch/computer NIC/another media converter. Remember
to reverse the TX and RX leads between the two devices.
DIP Switch Settings
Switch Function State Status
SW1 UTP Mode
Auto Auto UTP detection
Manual Use manual UTP settings
SW2* UTP Speed
100 100Mbps link speed
10 10Mbps link speed
SW3* UTP Duplex
Full Full duplex
Half Half duplex
SW4
Link Fault Pass-
through
LFP LFP mode o
ON LFP mode on
*not enabled when SW1 set to ‘Auto’
LED Indicators
LED Function State Status
PWR
Power
Indicator
ON Converter has power
OFF
Converter has no
power
FX Link/Act
Fiber Link/
Activity
ON Fiber link OK
OFF No link detected
Flashing Receiving data
FEF Far End Fault
ON Far end link failure
OFF No failure detected
100 Mode
ON 100Mbps
OFF 10Mbps
Full Duplex Mode
ON Full duplex mode
OFF Half duplex mode
TX Link/Act
Ethernet Link/
Activity
ON
Ethernet link
detected
OFF No link detected
Flashing Receiving data

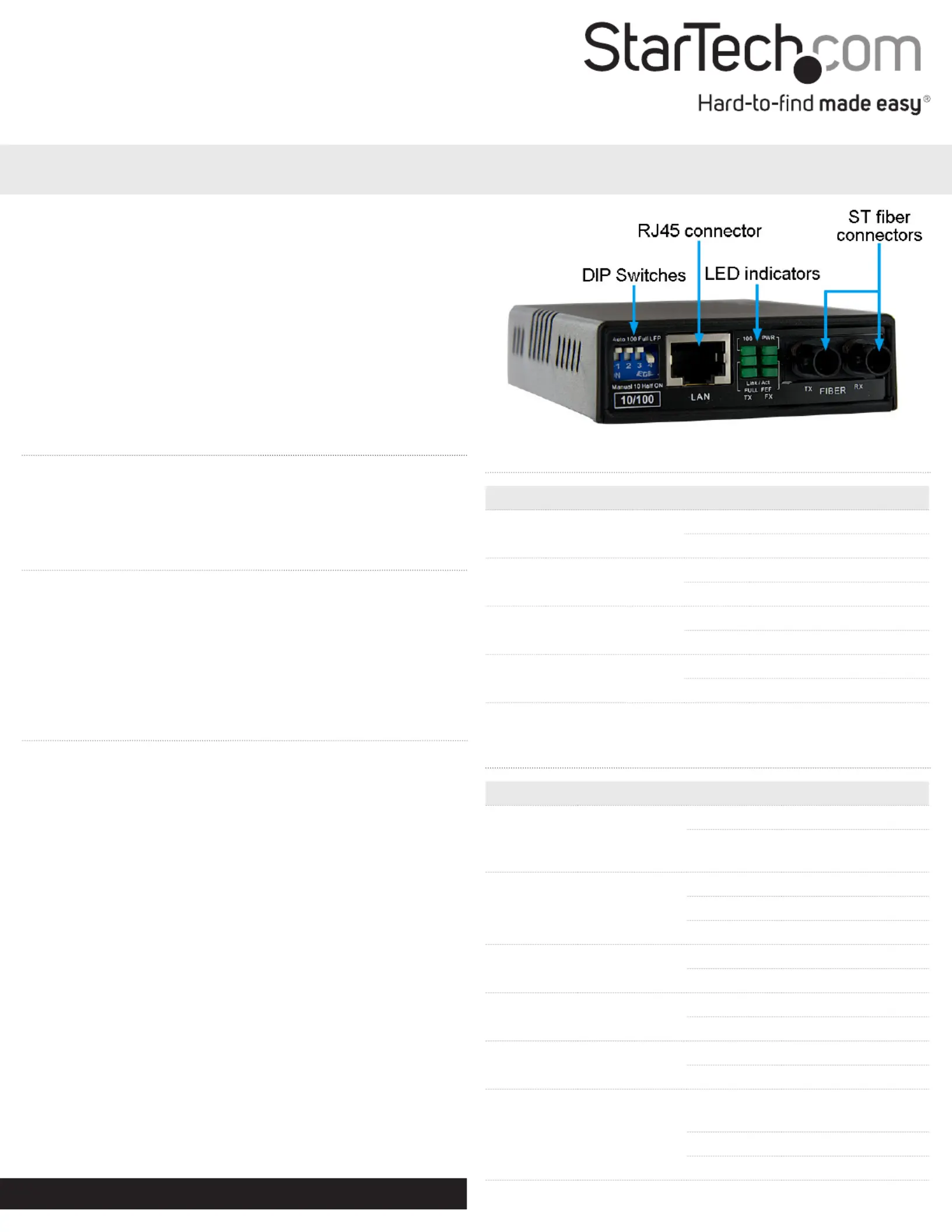

*MCM110ST2 shown
Problemløsning StarTech.com MCM110SC2EU
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 75 mm |
| Dybde: | 95 mm |
| Højde: | 20 mm |
| Vægt: | 90.5 g |
| Brugervejledning: | Ja |
| Produktfarve: | Sort |
| Pakkevægt: | 300 g |
| Pakkedybde: | 175 mm |
| Pakkebredde: | 145 mm |
| Pakkehøjde: | 65 mm |
| Opbevaringstemperatur (T-T): | -10 - 70 °C |
| Relativ luftfugtighed ved drift (H-H): | 10 - 90 % |
| Ethernet LAN-porte (RJ-45): | 1 |
| Driftstemperatur (T-T): | 0 - 50 °C |
| Ethernet LAN-datahastigheder: | 10, 100 Mbit/s |
| Husmateriale: | Plast |
| Forbindelsesteknologi: | Ledningsført |
| Certificering: | CE, FCC |
| Netværksstandarder: | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| DC-in-stik: | Ja |
| LED-indikatorer: | Activity, Link, Power |
| Udgangsspænding: | 12 V |
| Udgangsstrøm: | 0.2 A |
| AC-adapter inkluderet: | Ja |
| Harmoniseret systemkode (HS): | 85176990 |
| Bæredygtighedscertifikater: | RoHS |
| Indgangsspænding: | 230 V |
| Intern: | Ingen |
| Maksimal dataoverførselshastighed: | 100 Mbit/s |
| Fiber optisk strømstik: | SC |
| Maksimal overførselsafstand: | 2000 m |
| Bølgelængde: | 1310 nm |
| Strøm over Ethernet (PoE): | Ingen |
| Gennemsnitstid mellem fejl (MTBF): | 65000 t |
| Strømstiktype: | Type M |
| Auto MDI/MDI-X: | Ja |
| Flowkontrol support: | Ja |
| Jumbo Frames support: | Ja |
| Jumbo rammer: | 9000 |
| Auto-forhandling: | Ja |
| Fiberkanal porte: | 1 |
| Fibertilstandsstruktur: | Multitilstand |
| Duplex system: | Full, Half |
| Indgående omregner interface: | 100BASE-FX, 100Base-TX, 10Base-T |
| Bølgelængde-division multipleksing (WDM): | Ingen |
