Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Manual Revision: September 14, 2023

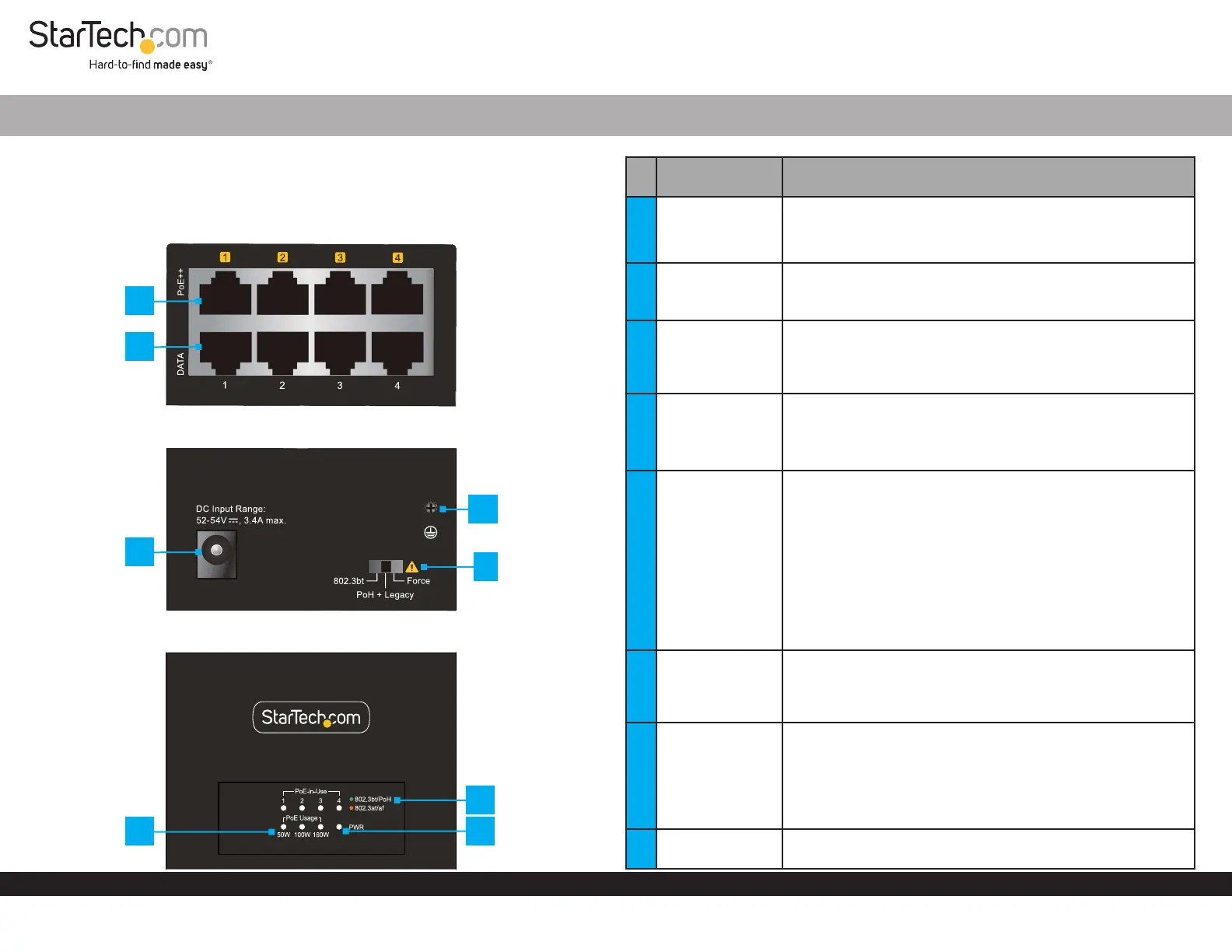

Product Diagram
AS445C-POE-INJECTOR
Front View
Back View
Top View
4-Port 802.3bt 90W 5Gbps PoE Injector
Port/LED/
Connector
Function
1
PoE++ Ports x 4
(Data + Power)
• Connect a Network Cable to a PD (Powered Device)
Note: 160W shared power allocation across all PoE ports.
• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
2
Data Ports x 4
(Data Input)
• Connect a Network Cable to a Network Device
• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
3 DC Power Port
• Connect to a Power Source using the included Power
Adapter
• Recommended 54 V and 3.3 A. Type M barrel plug,
Ø 5.5x2.1x9.5mm
4 Grounding Point
• Attach a Grounding Wire to the PoE Injector and to an
Earth Ground Connection
Note: A Grounding Wire is typically green or green with a
yellow stripe and should be at least 18 AWG.
5
PoE Operation
Mode Switch
• Three positions are available:
• 802.3bt (default). Operates as a 90W
802.3bt PoE++ type 4 PSE (Power Source Equipment)
• PoH + Legacy. Operates as a 95W PoH (Power over HD-
BASE-T) PSE with Legacy function
• Force. Operates as a non-negotiating 4-pair 60W
PoE PSE. Useful for PoE devices that lack a proper
handshake.
Warning! Force Mode is intended for PoE PDs only.
6 PoE Usage LEDs
• Steady Amber. Indicates that the system is consuming
over the indicated PoE power budget
• Blinking Amber. Indicates that the system is consuming
under the indicated PoE power budget
7 PoE-in-Use LEDs
• Steady Green. Indicates that the port is providing 802.3bt
PoE++/PoH/Force power to the remote powered device
• Steady Amber. Indicates that the port is providing 802.3af/
at PoE/PoE+ power to the remote powered device
• O. Indicates that no power is being provided to the
remote device
8 Power LED
• Steady Green. Indicates that power is being supplied to
the PoE Injector
*Product may vary from image
1
2
3
5
4
7
6 8
Problemløsning StarTech.com AS445C-POE-INJECTOR
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 70 mm |
| Dybde: | 94 mm |
| Højde: | 39 mm |
| Vægt: | 278 g |
| Produktfarve: | Grå |
| Pakkevægt: | 1700 g |
| Pakkedybde: | 300 mm |
| Pakkebredde: | 170 mm |
| Pakkehøjde: | 90 mm |
| Opbevaringstemperatur (T-T): | -10 - 70 °C |
| Relativ luftfugtighed ved drift (H-H): | 5 - 95 % |
| Relativ luftfugtighed ved opbevaring (H-H): | 5 - 95 % |
| Ethernet LAN-porte (RJ-45): | 8 |
| Driftstemperatur (T-T): | 0 - 50 °C |
| Ethernet LAN-datahastigheder: | 10,100,1000,2500,5000 Mbit/s |
| Husmateriale: | Metal |
| Indgangsspænding for vekselstrømsadapter: | 100 - 240 V |
| Udgangsspænding for vekselstrømsadapter: | 54 V |
| Hurtig installationsvejledning: | Ja |
| Netværksstandarder: | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| DC-in-stik: | Ja |
| LED-indikatorer: | Status |
| Kan monteres på væggen: | Ja |
| Udgangsstrøm: | 3.3 A |
| AC-adapter inkluderet: | Ja |
| Bæredygtighedscertifikater: | CE, Federal Communications Commission (FCC), UKCA |
| Hovedkassen højde (udvendigt): | 325 mm |
| Hovedkassens længde (udvendigt): | 370 mm |
| Hovedkassens bredde (udvendigt): | 475 mm |
| Indgangsstrøm: | 2.5 A |
| Produkter pr. hovedkasse (udvendigt): | 10 stk |
| Strøm over Ethernet (PoE): | Ja |
| Overholdelse af bæredygtighed: | Ja |
| Maksimal driftstilstand: | 100 m |
| Ethernet-grænsefladetype: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Antal produkter inkluderet: | 1 stk |
| RJ-45 indgangs-porte: | 4 |
| Total Power over Ethernet (PoE): | 160 W |
| Auto MDI/MDI-X: | Ja |
| Jumbo Frames support: | Ja |
| Jumbo rammer: | 9000 |
| Understøttede kabeltyper: | Cat5e, Cat6, Cat6a |
| RJ-45 udgangs-porte: | 4 |
| Power over Ethernet (PoE) spænding: | - V |
| Chipsæt: | Microsemi - PD69208T4, Microsemi - PD69200R |
