Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: December 8, 2023 4:28 PM

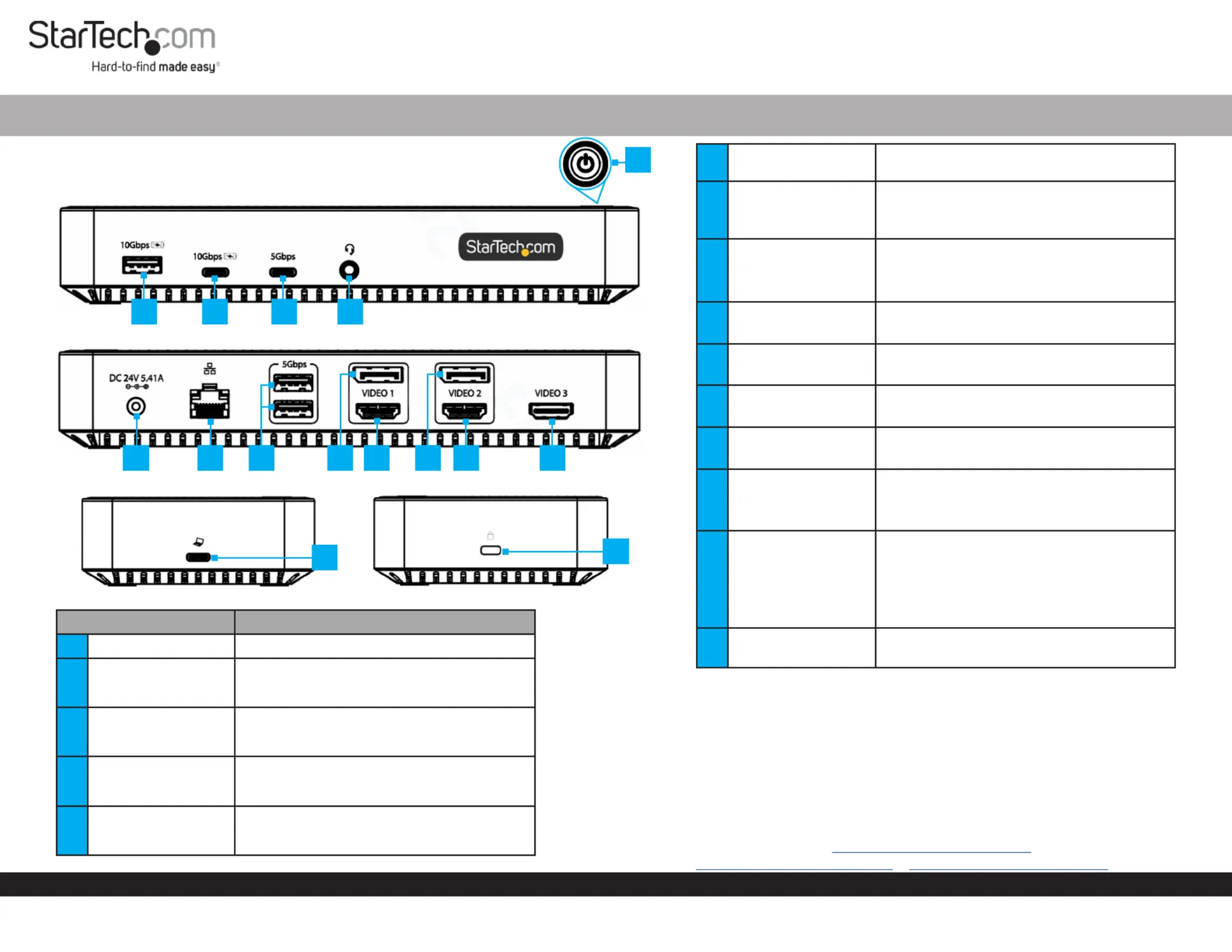

Product Diagram
(Side A)
USB-C Triple Monitor Dock 2x DP/3x HDMI - 2x USB-C/3x USB-A - GbE - 100W PD
6
1
4 5
9
8
Component Function
1Power Button
• Press and release to toggle power for the Dock
2
USB-A Data/Charge
Port
• Connect and/or charge a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports BC 1.2 5 V/1.5 A (7.5 W) charging
3
USB-C Data/Charge
Port
• Connect and/or charge a USB-C Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports BC 1.2 5V/1.5A (7.5 W) charging
4USB-C Data Port
• Connect and/or charge a USB-C Peripheral
• USB 3.2 Gen 1 (5 Gbps)
• Supports up to 5 V/0.9 A (4.5 W) of power
53.5mm Audio Port
• Connect an Audio Device
• 4 Position Audio Jack for Headset use
• CTIA/OMTP
7
10 11 12 13
2
(Side B)
3
Product ID
116N-USBC-DOCK / 116E-USBC-DOCK / 116U-USBC-DOCK
(Side C)
14
6DC 24V Port
• Connect the Dock to a Power Source, using the
Universal Power Adapter
7
Gigabit Ethernet
Port
• Connect the Dock to a Network Device, using a
Network Cable
• 10/100/1000 Mbps
8
2x USB-A Data
Ports
• Connect USB-A Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• Supports up to 5 V/0.9 A (4.5 W) of power
9
Video 1 DisplayPort
Port
• Connect a DisplayPort Display as Video 1
• Up to 4K (4096x2160) 60Hz
10 Video 1 HDMI Port
• Connect an HDMI Display as Video 1
• Up to 4K (4096x2160) 60Hz
11
Video 2 DisplayPort
Port
• Connect a DisplayPort Display as Video 2
• Up to 4K (4096x2160) 60Hz
12 Video 2 HDMI Port
• Connect an HDMI Display as Video 2
• Up to 4K (4096x2160) 60Hz
13 Video 3 HDMI Port
• Connect an HDMI Display as Video 3
• Up to 4K (4096x2160) 30Hz
• Via DP Alt Mode
14 USB-C Host Port
• Connect to a USB-C Port on a Host Computer
• USB 3.2 Gen 2 (10 Gbps)
• Power Delivery 3.0 Specication
• Capability of charging the Host Computer up to
100W
15
Lock Slot
(K-Slot)
• Connect a K-Slot Style Locking Device to deter the
theft of the Docking Station
Requirements
• Computer
• DP Alt Mode enabled USB-C Port
• Video support and performance on Video 3, such as resolution, and refresh rate
depend upon the host computer’s video controller. Not all USB-C ports support the
full functionality of the USB-C standard that includes support for DP Alt Mode and USB
Power Delivery. Please verify the specications of the host computer.
For the latest drivers, manuals, product information, technical specications, and declarations of
conformance, please visit: www.StarTech.com/116N-USBC-DOCK,
www.StarTech.com/116E-USBC-DOCK www.StarTech.com/116U-USBC-DOCK or
(Side D)
15
Problemløsning StarTech.com 116E-USBC-DOCK
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Vekselstrømsindgangsspænding: | 100 - 240 V |
| Bredde: | 85 mm |
| Dybde: | 190 mm |
| Højde: | 30 mm |
| Vægt: | 350 g |
| Produktfarve: | Grey, Silver |
| Pakkevægt: | 1100 g |
| Pakkedybde: | 250 mm |
| Pakkebredde: | 205 mm |
| Pakkehøjde: | 50 mm |
| HD-type: | 4K Ultra HD |
| Opbevaringstemperatur (T-T): | -10 - 55 °C |
| Relativ luftfugtighed ved drift (H-H): | 0 - 85 % |
| Antal HDMI-porte: | 3 |
| Ethernet LAN-porte (RJ-45): | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte: | 2 |
| Udgange til hovedtelefoner: | 1 |
| Ethernet LAN: | Ja |
| Strømforbrug (typisk): | 15 W |
| Driftstemperatur (T-T): | 0 - 70 °C |
| Husmateriale: | Plast |
| Hurtig start guide: | Ja |
| Kabler inkluderet: | AC, USB Type-C to USB Type-C |
| Forbindelsesteknologi: | Ledningsført |
| Netværksstandarder: | IEEE 802.3ab |
| LED-indikatorer: | Strøm |
| Udgangsspænding: | 24 V |
| Udgangsstrøm: | 5.41 A |
| AC-adapter inkluderet: | Ja |
| Indbygget kortlæser: | Ingen |
| Understøttede mobile operativsystemer: | Android |
| Slot til kabellås: | Ja |
| Understøttede Mac-operativsystemer: | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Understøttede Linux-operativsystemer: | Ja |
| Andre understøttede operativsystemer: | ChromeOS |
| Hovedkassen højde (udvendigt): | 290 mm |
| Hovedkassens længde (udvendigt): | 430 mm |
| Hovedkassens bredde (udvendigt): | 280 mm |
| Værtsgrænseflade: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Tilslutning af hovedtelefoner: | 3,5 mm |
| Indgangsstrøm: | 2.5 A |
| Maksimal opdateringshastighed: | 60 Hz |
| HDMI-version: | 2.0 |
| DisplayPort-version: | 1.4 |
| Antal DisplayPorts: | 2 |
| Kabellåseslids type: | Kensington |
| Produkter pr. hovedkasse (udvendigt): | 10 stk |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte: | 1 |
| Kombineret hovedtelefon/mikrofon-port: | Ja |
| Strømstiktype: | Type M |
| Kobber ethernet kabelteknologi: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Maksimal digital opløsning: | 4096 x 2160 pixel |
| Dataoverførselshastighed: | 10 Gbit/sek. |
| USB strømforsyning revision: | 3.0 |
| USB strømforsyning: | Ja |
| Wake-on-LAN klar: | Ja |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte: | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte: | 1 |
| USB type-C DisplayPort alternativ tilstand: | Ja |
| USB strømforsyning op til: | 100 W |
| Chipsæt: | DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0 |
