Receiver Wiring Adaptor
120 70-9500
Revision 04/25/18

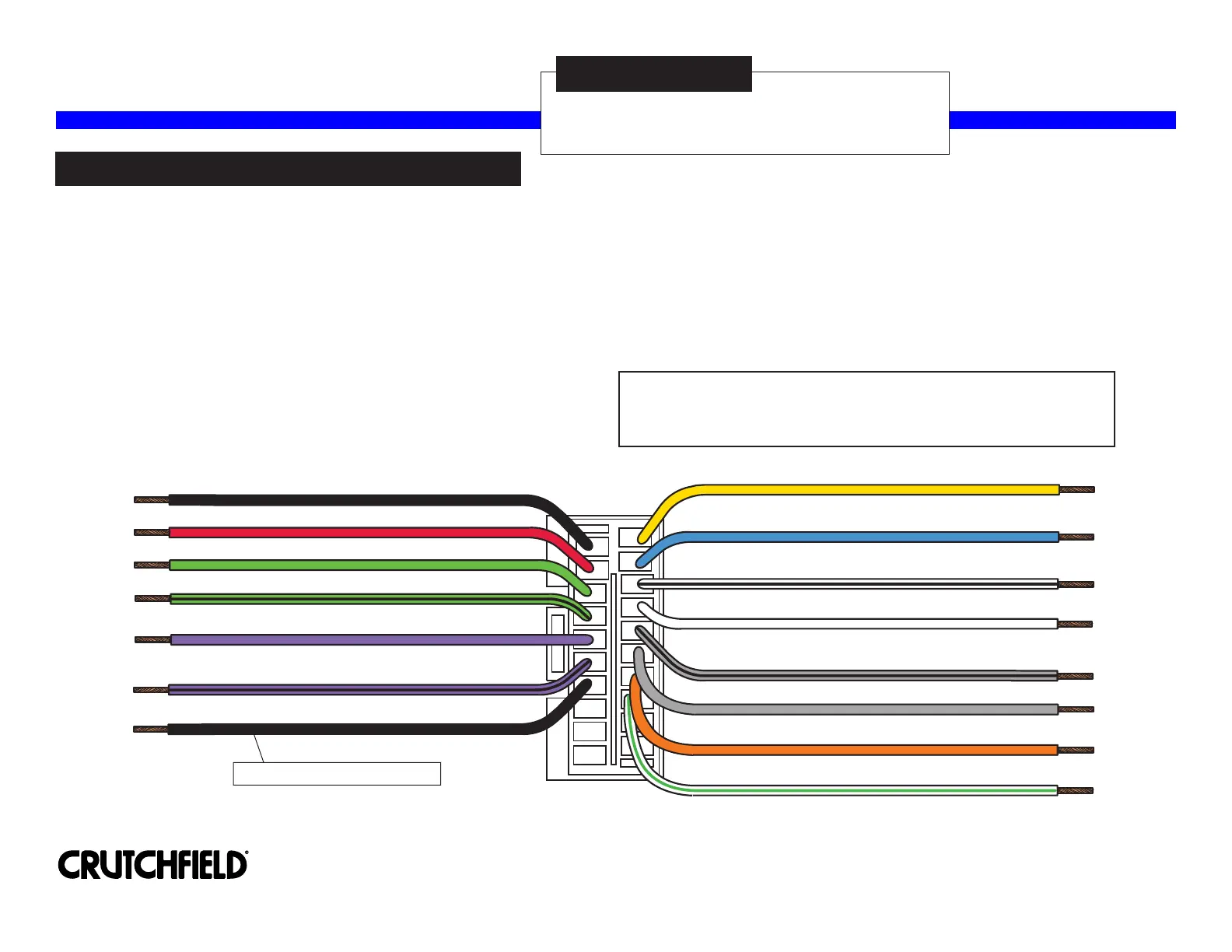

STEP 1 -- MATCH & CONNECT WIRES
*120709500*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.
Copyright 2018 Crutchfield Corporation
Red - 12 Volts Switched Power
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
Black - Chassis Ground
Yellow - 12 Volts Constant Power
Blue - Power Antenna
Orange - Illumination
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
White - Left Front Speaker Positive
Gray - Right Front Speaker Positive
Black - Steering Wheel Control Ground
White/Green - Steering Wheel Control Signal
Connect with Chassis Ground.
IMPORTANT - Splice these wires in the factory harness to receiver ground
or to the vehicle chassis to prevent triggering the factory alarm system:
Red - 2002-'08 Jaguar X Type
Black/Green - 2002-'08 S Type
