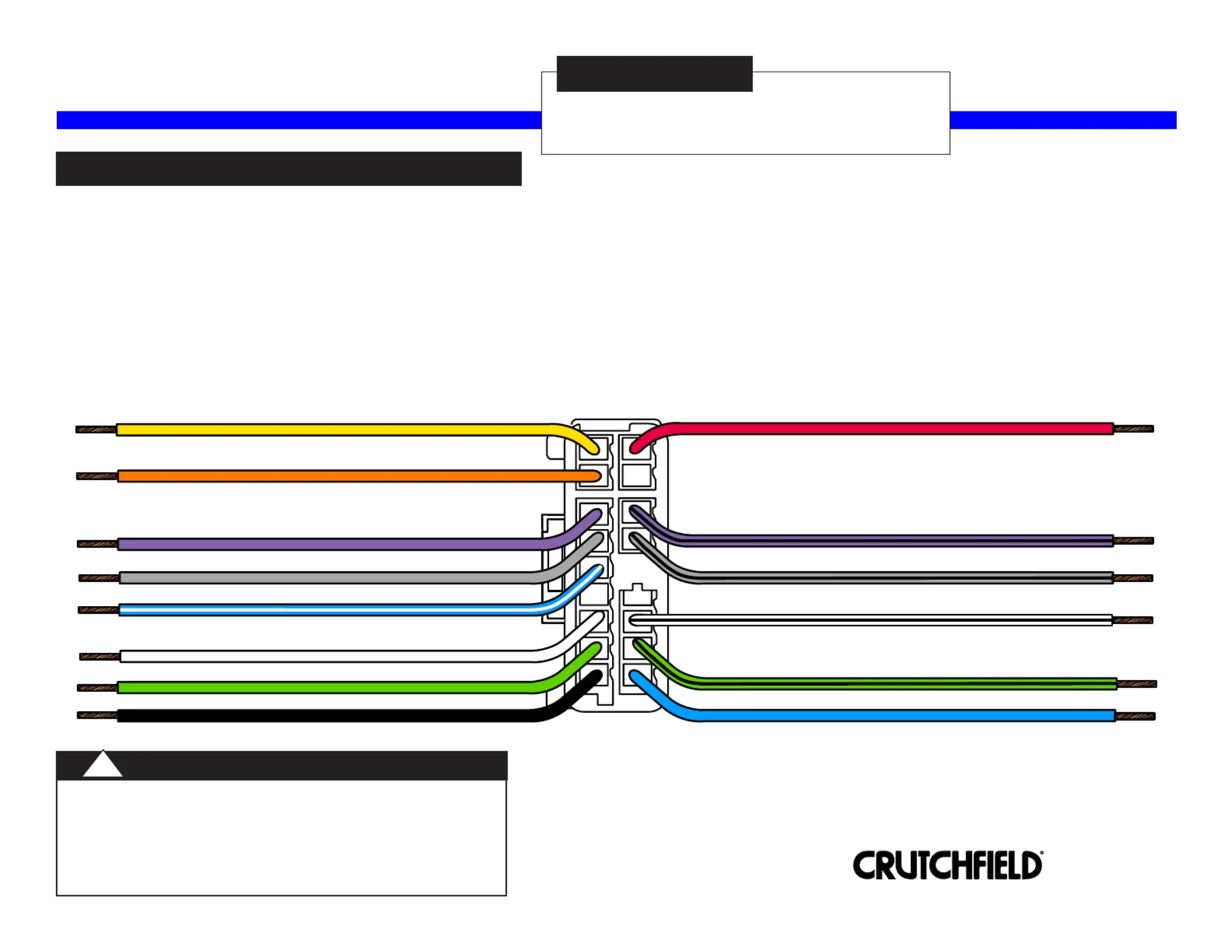

White - Left Front Speaker Positive
Violet/Black - Right Rear Speaker Negative
Red - 12 Volts Switched Power
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Yellow - 12 Volts Constant Power
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Orange - Illumination
White/Black - Left Front Speaker Negative
Black - Chassis Ground
Blue - Power Antenna
Blue/White Amp Turn-On
*120707301
If the vehicle does not have an amplifier, do not connect the
Blue/White wire. The 2007-2008 Tiburon without amplifier uses
the wire in the Blue/White position in the Crutchfield harness for
a vehicle speed pulse signal. All other applications (including the
Tiburon with amp) will use this position for amplifier turn-on and
can be connected to the aftermarket receiver's remote output.
IMPORTANT - CAUTION
!
Receiver Wiring Adaptor
120 70-7301
Revision 01/22/14
STEP 1 -- MATCH & CONNECT WIRES
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
If your receiver does not have an Illumination wire, tape off the Orange wire. Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
Copyright 2014 Crutchfield Corporation
