Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.120820

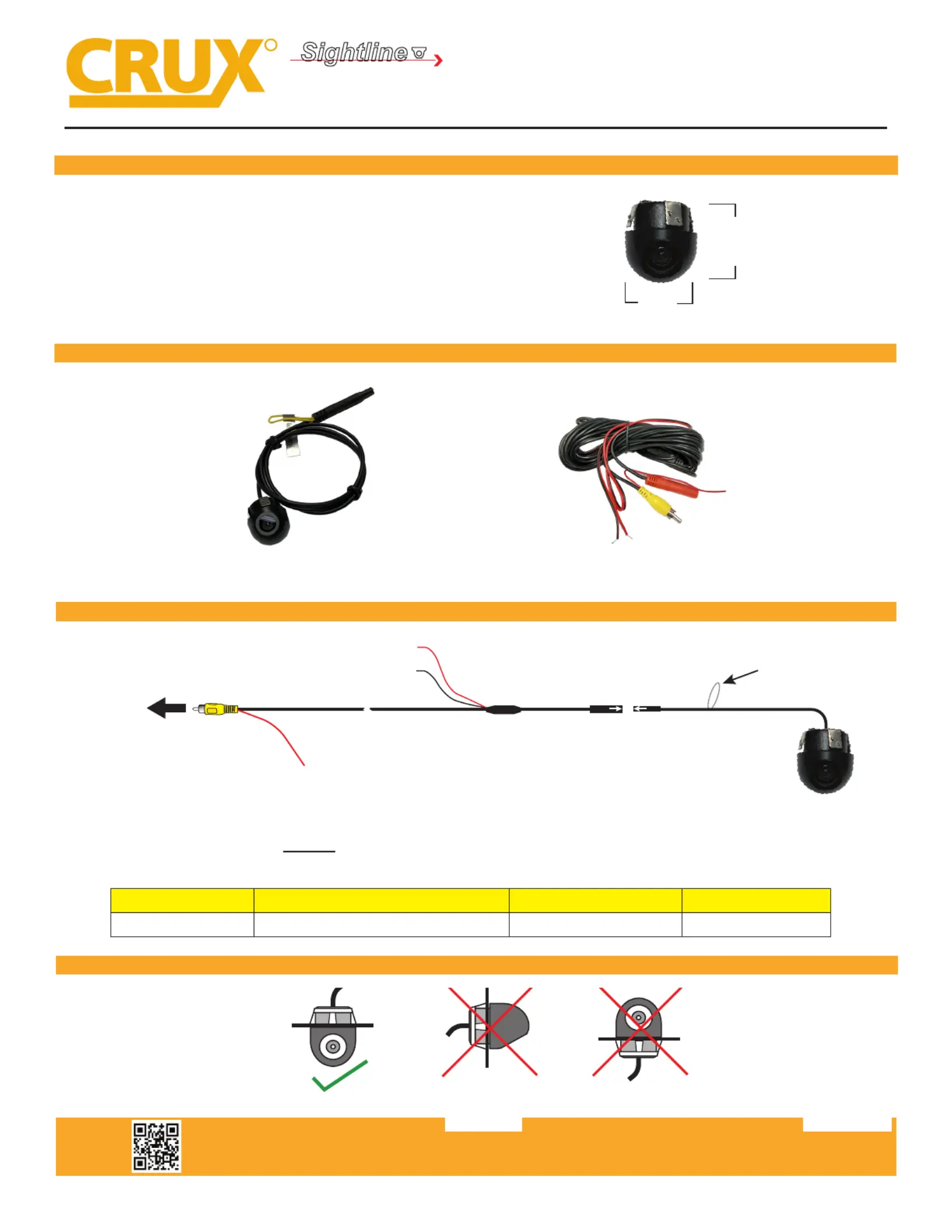

MM-CUL7
Universal Push-In Underlip Mount
Mini Camera with Parking Guide Lines
1
- With Parking Guide Lines that can be turned on and o.
- Mini camera with a small footprint.
- Push-in type underlip mounting option.
- 100 degree horizontal viewing angle.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
MM-CUL7 CAMERA EXTENSION CABLE
YELLOW Wire
Parking Guideline
(see below)
Regulator
Extension Coax Cable
Black Wire
(Ground)
RED Wire (A)*
Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse
light wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not
being used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
Yellow Parking Lines ON (default) OFF
0.70”
0.79
MOUNTING OPTIONS:
Under Lip Mount Horizontal Mount Top Mount
