CLP-12
Universal License Plate Camera
1
- Mounts behind the license plate for a clean look.
- Selectable Parking Guide Line ON or OFF.
PRODUCT FEATURES:
PARTS INCLUDED:

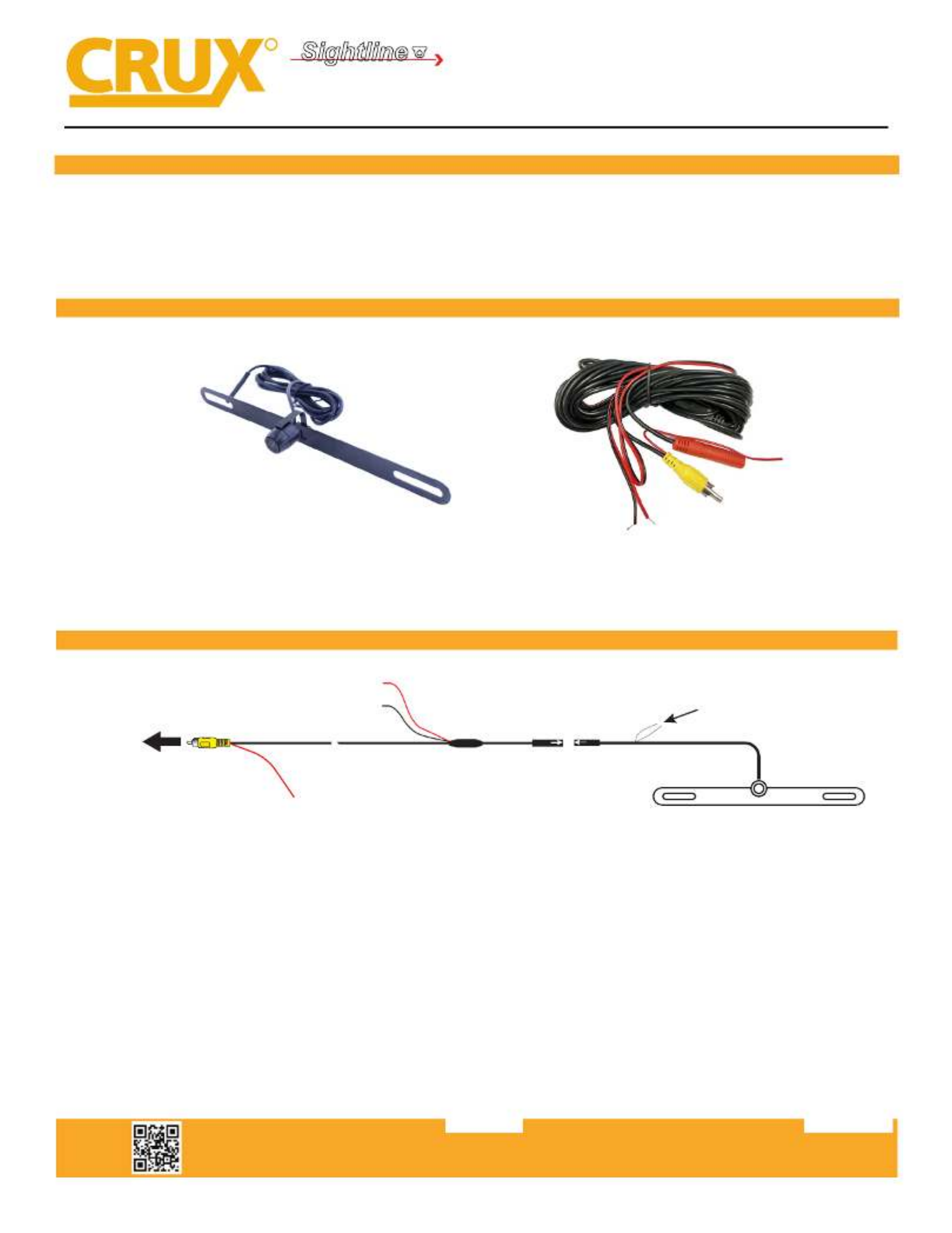

INSTALLATION DIAGRAM:
CLP-12 License Plate Camera 20’ Extension Cable
WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
License Plate Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
WHITE Wire Loop: Cut to remove parking guide lines. Connect to show parking guide lines. Insulate with tape to
avoid from shorng.
NOTE: Cycle the camera power by unplugging the 4 pin barrel connectors aer connecng or
disconnecng the control wires.
