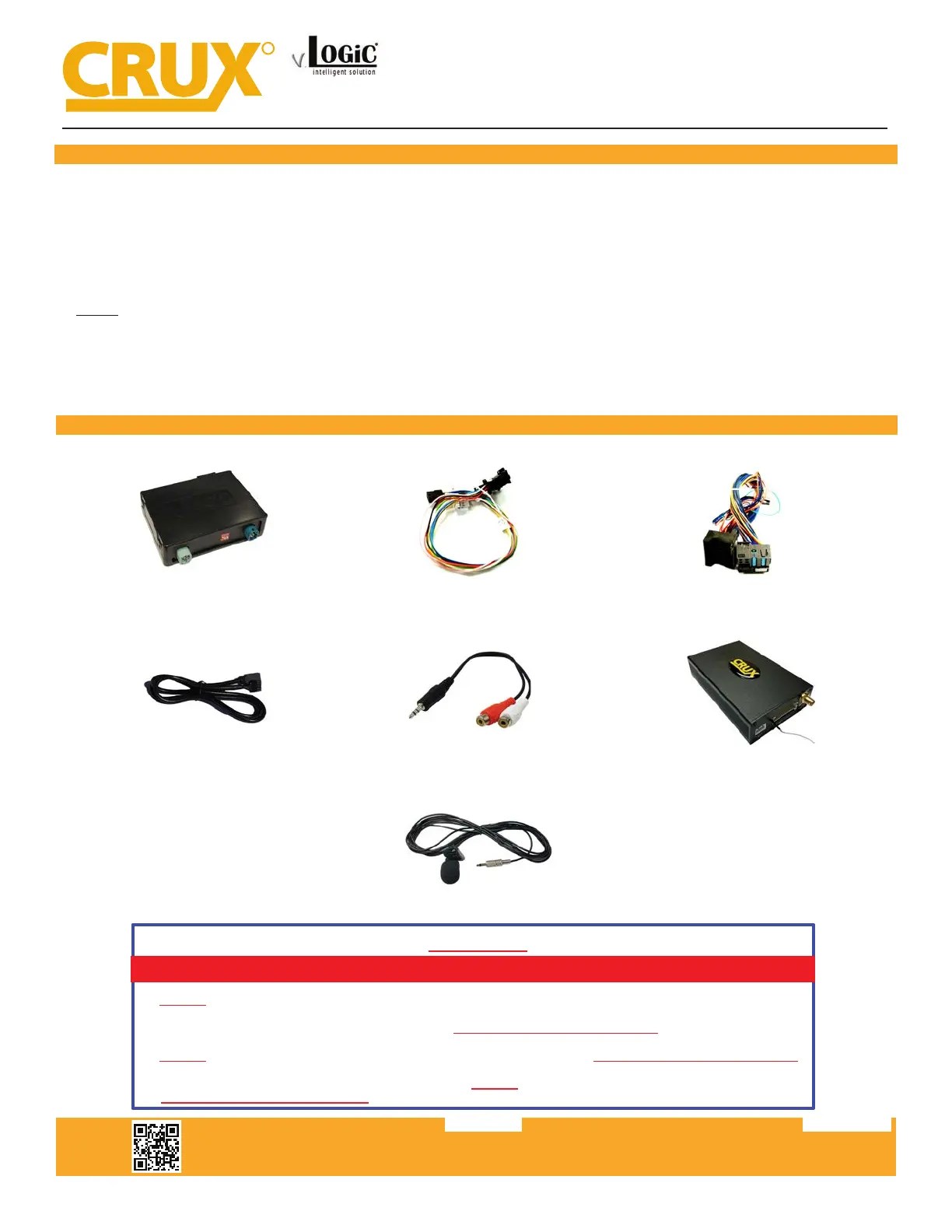

Microphone
ACPBM-77X
Smart-Play Integration with Rear-View Camera Input for
E Series BMW with CCC Systems (6.5” or 8.8” Monitor) and 10-Pin LVDS Connector
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0724191 of 12
- Smart-Play Integraon system allows connecon of Android and other devices to the iDrive infotainment system.
- Control Apps using smartphone’s voice control feature or the factory iDrive Knob.
- Adds aermarket rear view camera input.
- Picture-in-picture mode combining aer-market rear-view picture with factory parking sensor graphics.
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
NOTE
- Android Phones must have a rmware version of 8 and above.
- For 2007 & up vehicles without a factory AUX input, add on the CRUX AUX-BM4 for audio.
- For 2007 & below vehicles without a factory AUX input, add on the CRUX AUX-BM5 for audio.
- Must insert factory LVDS cable to module and replace with our aermarket LVDS-10pin connector.
PRODUCT FEATURES:
PARTS INCLUDED:
ACPBM-77X Module Power/CAN Harness ACPBM-77X Vehicle Harness
LVDS10 Cable 3.5mm to RCA Adapter Smart-Play Interface Module
1. DO NOT connect the Quadlock Connector to Factory Radio CD Headunit UNLESS the 10 Pin LVDS Cable has
been properly and completely connected to factory display and all the other 10 Pin LVDS cable connections have
been made according to the wiring diagram above or the factory display will be damaged;
2. DO NOT connect the 10 Pin LVDS Cable when the Radio is Powering ON or the factory display will be damaged;
3. When the Radio CD Headunit is active (powered ON ), DO NOT disconnect any of the 10 pin LVDS Connections
or the factory display will be damaged.
WARNING
PRODUCT WILL NOT WORK WITH ALPINE SCREENS
