Installation Guide
AT-AVA-EX100CE-BP-KIT
4K/UHD HDMI Extender Kit with Ethernet, Control,
and Bidirectional Remote Power
AT-AVA-EX100CE-BP-KIT

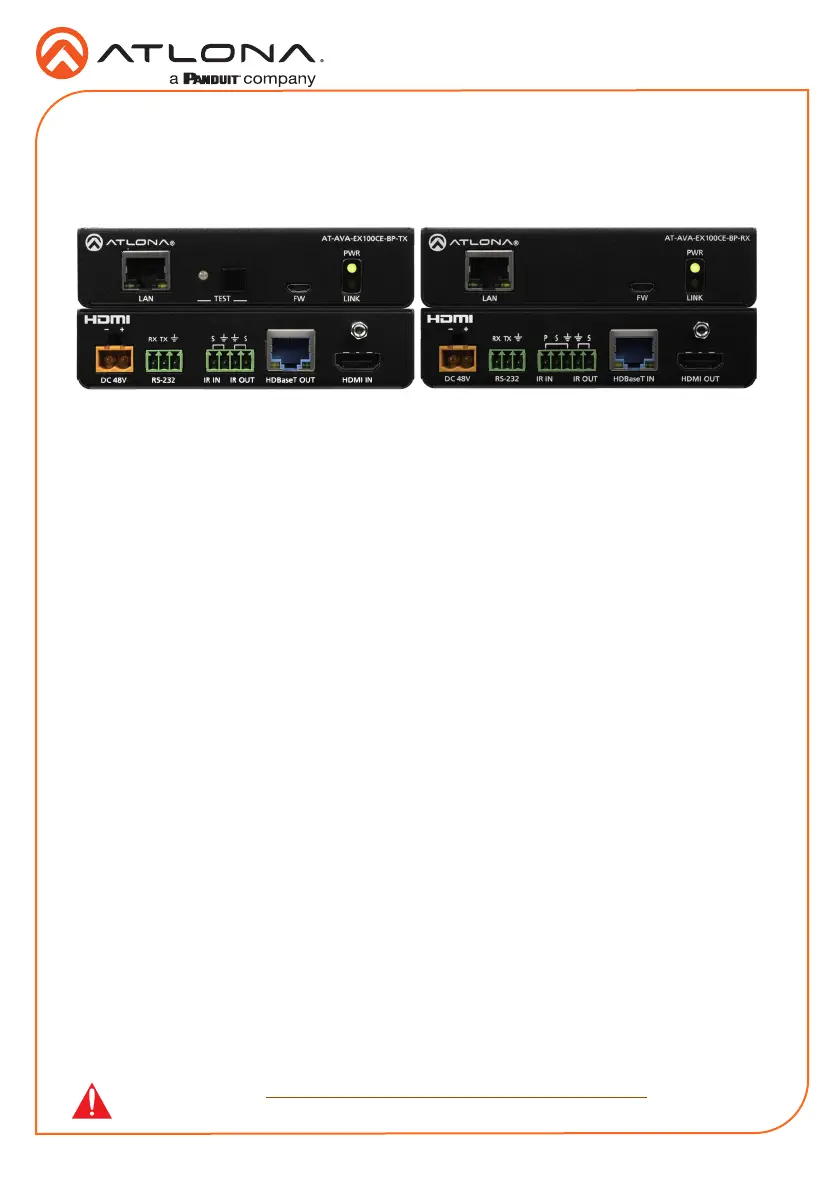

The Atlona AT-AVA-EX100CE-BP-KIT is an Avance™ Series HDBaseT transmitter and receiver
set that supports Ethernet, control pass-through, and bidirectional remote power capabilities.
The kit transmits 4K/UHD 60Hz 4:2:0 video up to 330 feet (100 meters). In addition to video with
embedded multi-channel audio, 100Base-T Ethernet data, RS-232 and IR control signals, and
remote powering by either the transmitter or the receiver are supported on the single CAT6A/7
cable. Integrated HDBaseT link status testing allows quick verication of cable, termination, and
link quality. HDMI clock stretching and EDID ltering are included to ensure the integrity of video
transmission as well as compatibility with the widest array of sources and display devices. ARC
is available on the HDMI connections to minimize cabling in audio return applications. Compact
enclosures and included brackets allow the transmitter and receiver endpoints to be surface
mounted in furniture or behind a display. The AT-AVA-EX100CE-BP-KIT delivers a cost-eective
solution for extension of video, audio, Ethernet, control, and bidirectional power at resolutions up
to 4K/UHD.
IMPORTANT: Visit https://atlona.com/product/AT-AVA-EX100CE-BP-KIT for the latest
rmware updates and Installation Guide.
1 x AT-AVA-EX100CE-BP-TX
1 x AT-AVA-EX100CE-BP-RX
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector
1 x IR emitter
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IEC cable
1 x Installation Guide
Package Contents
