Installation Guide
AT-HDR-EX-70-2PS
4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70-2PS

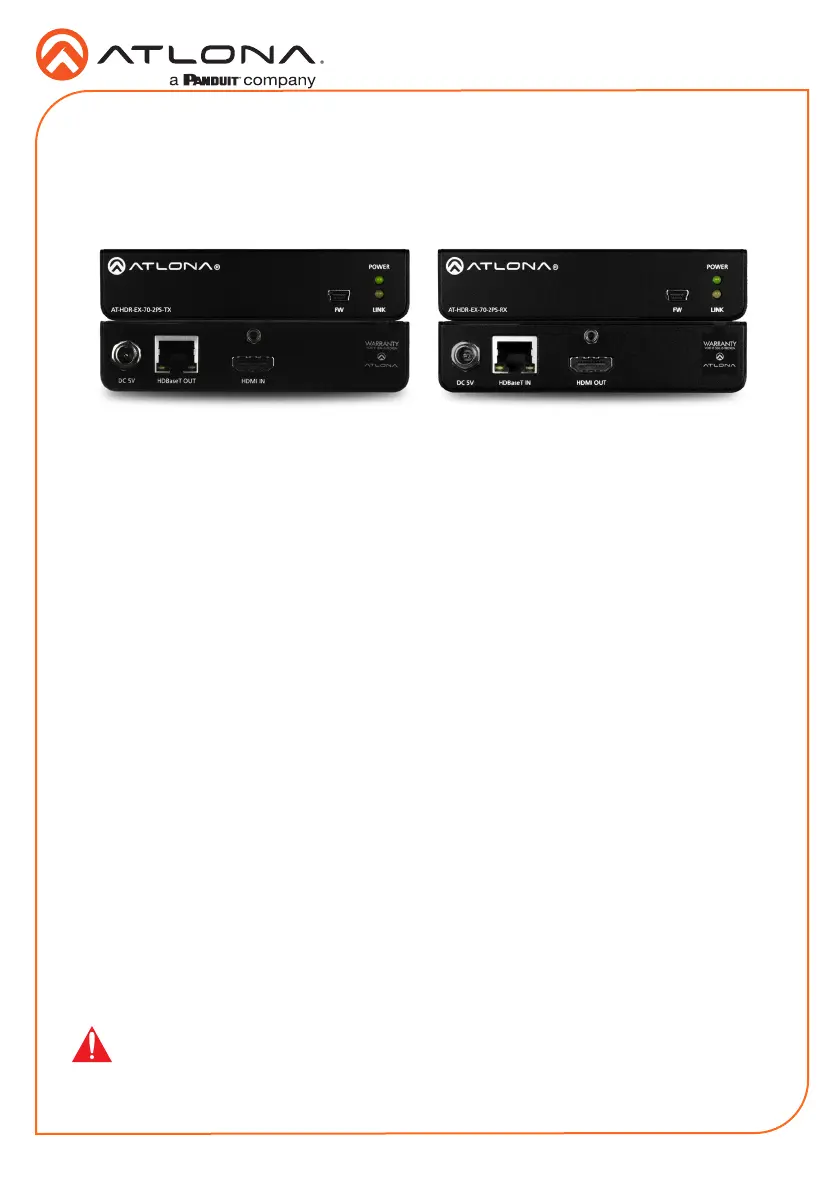

The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides
HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters)
for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no
latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. The HDR-EX-70-
2PS delivers a cost-eective solution for HDMI extension, with locally powered transmitter and
receiver endpoints as well as surface mounting hardware for discreet installation.
The HDR-EX-70-2PS is ideal for residential applications with the latest as well as emerging 4K/
UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats,
and color space formats supported in the HDMI 2.0a specication, plus the ability to pass
metadata for HDR content. The HDR-EX-70-2PS includes Atlona’s award-winning 10 year limited
product warranty and customer support services, so that integrators can specify, purchase, and
install with condence.
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70-2PS for the latest
rmware updates and Installation Guide.
1 x AT-HDR-EX-70-2PS-TX
1 x AT-HDR-EX-70-2PS-RX
4 x Mounting brackets
8 x Mounting screws
2 x 5 V DC power supplies
1 x Installation Guide
Package Contents
Problemløsning Atlona AT-HDR-EX-70-2PS
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Type: | AV sender & modtager |
| Vekselstrømsindgangsspænding: | 100 - 240 V |
| Vekselstrømsindgangsfrekvens: | 50 - 60 Hz |
| Understøttede videotilstande: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Opbevaringstemperatur (T-T): | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H): | 20 - 90 % |
| HDCP: | Ja |
| Driftstemperatur (T-T): | 0 - 50 °C |
| Maksimal opløsning: | 4096 x 2160 pixel |
| Understøttede grafikopløsninger: | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1376 x 768,1400 x 1050 (SXGA+),1440 x 900,1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1200 (WUXGA),2048 x 1536 (QXGA),2560 x 1600 (WQXGA),2560 x 2048 |
| Forbindelsesteknologi: | Ledningsført |
| Lyd-output kanaler: | 7.1 kanaler |
| Certificering: | CE, FCC |
| DC-in-stik: | Ja |
| Antal USB-porte: | 2 |
| Farvedybde: | 12 Bit |
| Modtager vægt: | 220 g |
| Lydsystem: | Multikanal |
| Driftsspænding: | 5 V |
| Maksimal overførselsafstand: | 70 m |
| USB-stik type: | Mini-USB B |
| HSMI-indgang: | 1 |
| RJ-45 indgangs-porte: | 1 |
| Antal HDMI-udgange: | 1 |
| Modtager dimensioner (BxDxH): | 109 x 76 x 25 mm |
| HDBaseT-port: | Ja |
| Senderdimensioner (BxDxH): | 109 x 76 x 25 mm |
| Transmitter vægt: | 220 g |
| Båndbredde: | 18 Gbit/sek. |
| RJ-45 udgangs-porte: | 1 |
| Understøtter forbrugerelektronik (CEC): | Ja |
| Strømforbrug (modtager) (maks): | 5.9 W |
| Strømforbrug (sender) (maks): | 4 W |
