Description of Pin Use — CN2, CFast Connector
PINS1
GND
PINPC6
NC
PINS2
SATA_TX+
PINPC7
GND
PINS3
SATA_TX-
PINPC8
NC
PINS4
GND
PINPC9
NC
PINS5
SATA_RX-
PINPC10
NC
PINS6
SATA_RX+
PINPC11
NC
PINS7
GND
PINPC12
NC
PINPC1
NC
PINPC13
3.3 V
PINPC2
GND
PINPC14
3.3 V
PINPC3
NC
PINPC15
GND
PINPC4
NC
PINPC16
GND
PINPC5
NC
PINPC17
NC
STARTUP MANUAL
1 Startup Manual
PCM-23C1CF
1 x CFast slot with cover protection
Packing List
Before installation, please ensure that the following items
have been included in your shipment:
1 x CFast I/O plate with 1 x iDoor bracket
1 x Startup manual
1 x Warranty card
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.

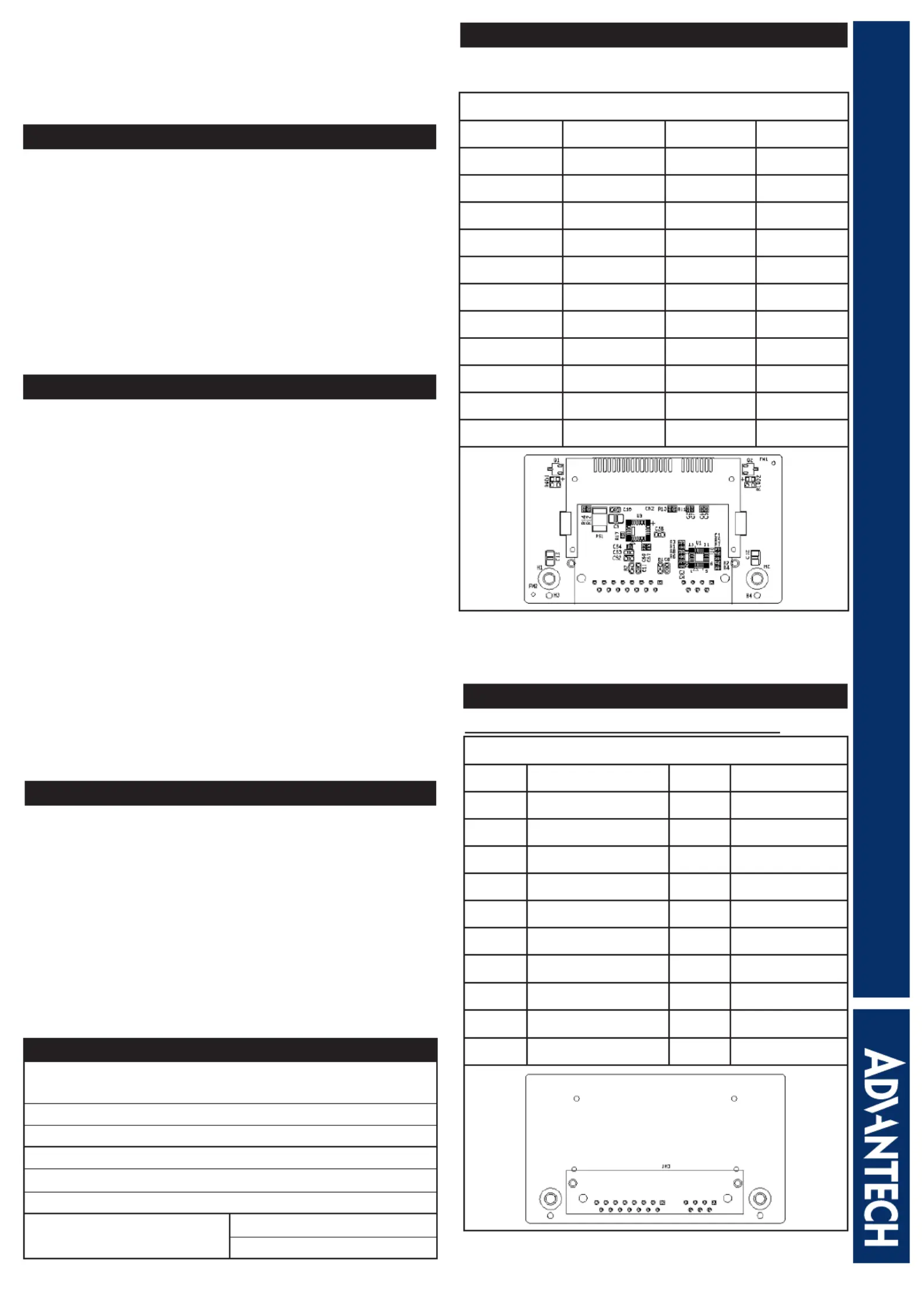

Pin Assignment — Internal Connection
Notes
For more information about this or other Advantech
products, visit our website at
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service, visit
http://www.advantech.com.tw/eservice
This manual is for PCM-23C1CF
Part No: 200323C101 Edition 2
September 2017
The pin assignments for one of the I/O module
connectors are shown in the tables and gures below.
Pin Assignment
Documentation/Software Support Guide
Installation
The PCM-23C1CF module with iDoor technology
supports the following iAutomation computing platforms:
UNO-2000 standard mount series
UNO-1000 DIN rail mount series
UNO-3000 wallmount series
4:3 TPC-xx51T/xx82, TPC-5000 panel PCs
16:9 TPC-xx51WP/xx81WP, TPC-5000 panel PCs
*Note: An additional SATA cable may be required to
install the PCM-23C1CF module on a TPC
system.
Advantech’s PCM-23C1CF module is a SATAII (3G/s)
to CFast interface for storage applications and does not
require a driver.
Description of Pin Use — CN1
PINS1
GND
PINP5
GND
PINS2
SATA_TX+
PINP6
GND
PINS3
SATA_TX-
PINP7
5 V
PINS4
GND
PINP8
5 V
PINS5
SATA_RX-
PINP9
5 V
PINS6
SATA_RX+
PINP10
GND
PINS7
GND
PINP11
NC
PINP1
3.3 V
PINP12
GND
PINP2
3.3 V
PINP13
NC
PINP3
3.3 V
PINP14
NC
PINP4
GND
PINP15
NC
I/O Board CN1 SATA HDD Cable—
