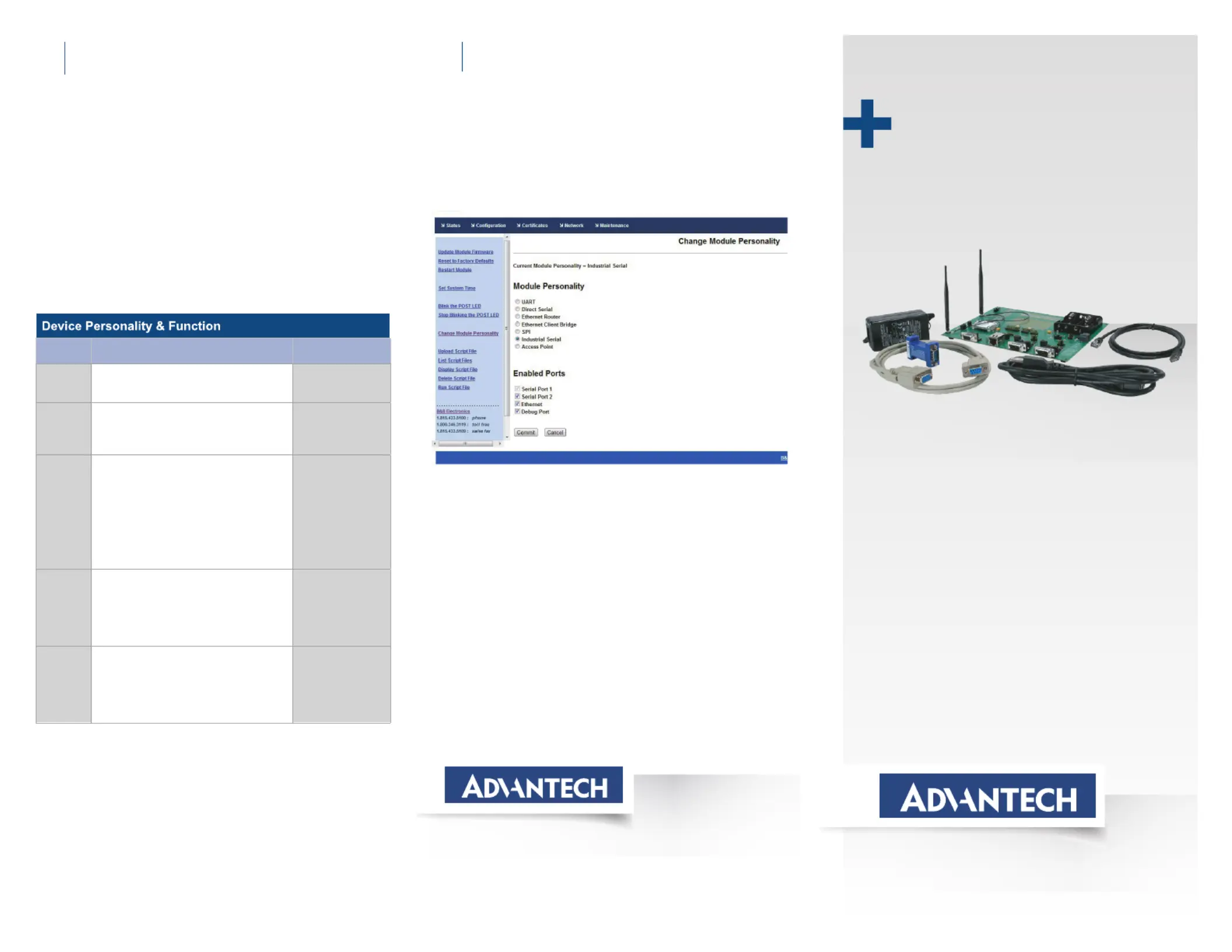

QUICK START
GUIDE
Device perso lities,na
configuration and set-up
Change module personality
8
9
Document Number: 710-10086-00_r4_WLNN-EK-DP551_0219qsg
WLNNA Series Evalua on Kitti
Design & Development
Personality Description Model# Series
UART
Serial device server with LVTTL I/O. Supports
dual UART, debug port, single Ethernet,
802.11a/b/g/n. Ethernet interface is a client.
WLNNA-AN-DP551
Direct
Serial
Serial device server with control signals to
support external RS232/422/485 drivers. Support
dual serial ports, debug port, single Ethernet,
802.11a/b/g/n.
WLNNA-SE-DP551
Ethernet
Router
Ethernet NAT3 router. Built-in DHCP server on
Ethernet port supports multiple Ethernet slients
on the Ethernet interface. Includes rule-based
Firewall and Port Forwarding.
Ethernet interface is set as a router. Suitable for
applications where there are multiple Ethernet
clients on the Ethernet network.
Also supports dual UARTs, debug port,
802.11a/b/g/n.
ABDNA-ER-DP55x
ABDNA-ER-IN501x
WLNNA-ER-DP551
Ethernet
Client
Bridge
Ethernet bridge designed to connect wireless
(802.11a/b/g/n) to an existing Ethernet port.
Suitable for applications where there is a single
Ethernet client to be connected to a wireless
network.
Also supports dual UARTs, debug port.
ABDNA-ER-DP55x
ABDNA-ER-IN501x
WLNNA-ER-DP551
These units can easily be
converted to bridge-mode
using AMC templates.
Industrial
Ethernet
Ethernet NAT3 router. Built-in DHCP server on
Ethernet port supports multiple Ethernet clients
on the Ethernet interface. Includes rule-based
Firewall and Port Forwarding. Also supports dual
UARTs, debug port, 802.11a/b/g/n.
ABDNA-ER-IN501x
Model WLNNA-EK-DP551
(1) Airborne Enterprise Module Evaluation Circuit Board
Assembly (“EVB”)
(1) Airborne WLNN-EK-DP551 module (mounted to EVB)
(1) 5VDC power supply, 2.1mm barrel jack, cable
(2) 2dBi, 2.4GHz/5Ghz, 50 Ohm, omni-directional antenna
(1) DB9/-DB9 serial cable (null modem)
(1) USB to serial adapter (Model# 232USB9M-LS)
(1) CAT5 Ethernet cable
(1) Quick Start Guide
Before you begin, be
sure you have the following:
The WLNNA Series EVB can support all device
personalities available within the Advantech product line.
A device personality is a specific configuration of the
Airborne™ device which performs a certain function.
Examples include Ethernet Router, Serial Device Server
etc. The EVB is shipped with the default personality set
as an Industrial Serial Devices Server.
Changing the personality to match your application is the
first thing you should do when working with the EVB.
It is important to select the appropriate personality. The
following table outlines the personalities and their
specific functionality:
The web page displays Change Module Personality
theavailable device personalities.
After selecting the appropriate personality, you must
press the button and restart the module to save Commit
and apply the change.
Note: The web interface is context sensitive. Not all of the fields
will be visible without a context change.
