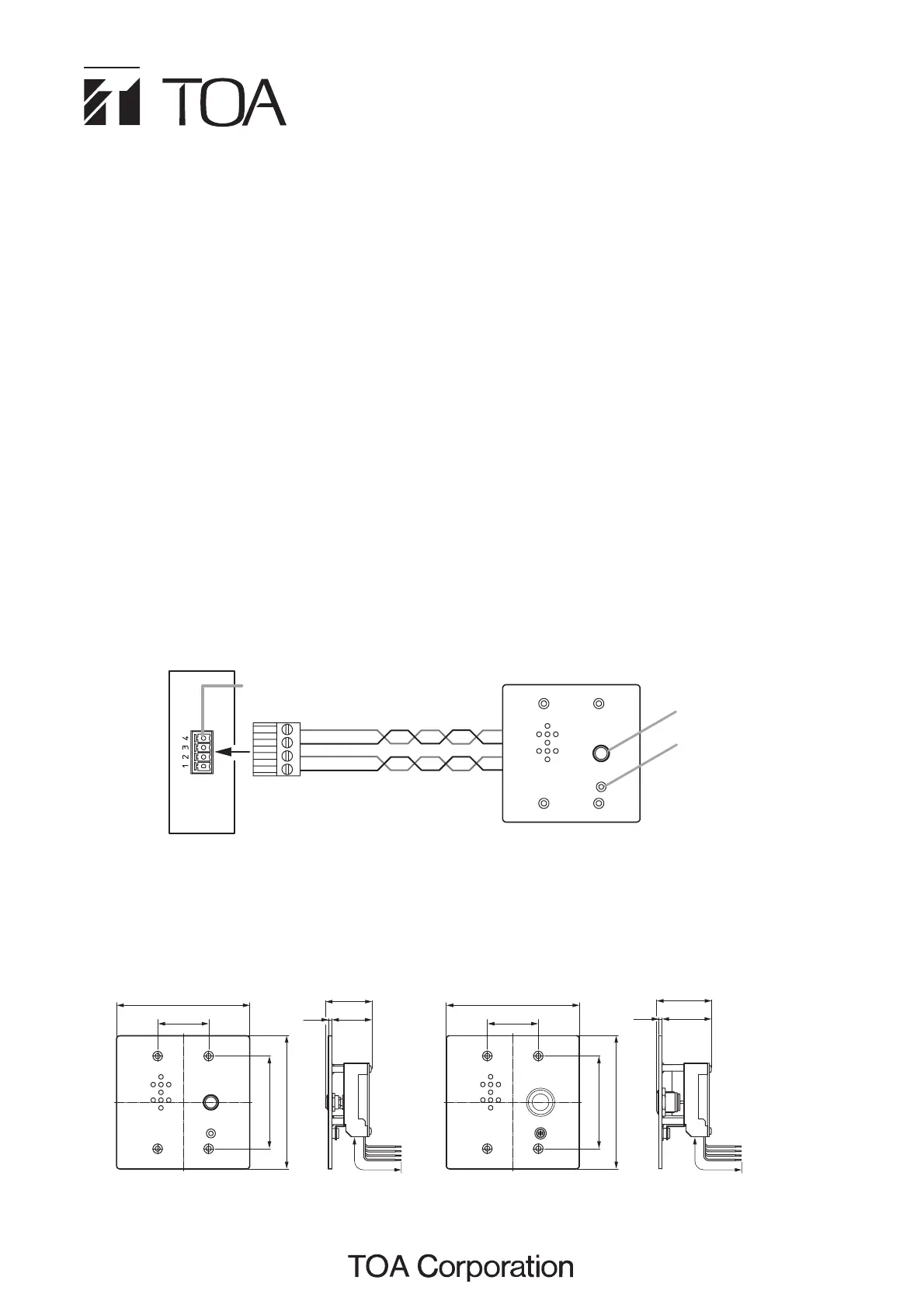

Thank you for purchasing TOA's Substation.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Note: For operation of the units, refer to the N-8000 series operating instructions.
1. GENERAL DESCRIPTION
The RS-450, RS-460, RS-470 are substations to be connected to the N-8400RS Substation Interface Unit.
The RS-450 features indoor design, the RS-460 robust indoor design, and the RS-470 robust design with
Dust/Water Protection Conforming to IP54 level.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
2. CONNECTIONS
RS-450
RS-460
RS-470
SUBSTATIONS
INSTALLATION MANUAL
Note: The figure represents the RS-450.
RS-450, RS-460,
or RS-470
Call button
Microphone
N-8400RS
Substation interface unit
Substation connection terminal
Line 1 : Brown, Line 2: Red,
Line 3 : Orange, Line 4: Yellow
Yellow
Orange
Red
Brown
Two pair of twisted pair cable
3. INSTALLATION
[RS-450 dimensional diagram] [RS-460/470 dimensional diagram]
120
49.5
44.5
200 or less
3
41.5
35.53
46
120
83.5
120
46
120
83.5
Unit: mm
200 or less
Problemløsning TOA RS-470
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Kode for international beskyttelse (IP): | IP54 |
| Bredde: | 120 mm |
| Dybde: | 49.5 mm |
| Højde: | 120 mm |
| Vægt: | 550 g |
| Antal pr. pakke: | 1 stk |
| Produktfarve: | Sølv, rustfrit stål |
| Produkttype: | Understation |
| Driftstemperatur (T-T): | -10 - 50 °C |
| Materiale: | Metal |
| Certificering: | BS EN62262: 2002 |
| Monteringstype: | Væg |
| Kapabilitet: | N-8400RS |
| Mærke kompatibilitet: | TOA |
| Række: | 1 km (1093 yd)/φ0.5 mm (AWG24), 1.5 km (1640 yd)/φ0.65 mm (AWG22), 2 km (2187 yd)/φ0.9 mm (AWG19) |
