Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
RS-150
RS-160
RS-170
RS-180
SECURITY SUBSTATION
INSTRUCTION MANUAL
1. GENERAL DESCRIPTION
TOA's RS-150, RS-160, RS-170, and RS-180 are Security Substations designed to be used with TOA's VS-900
Voice Security System.

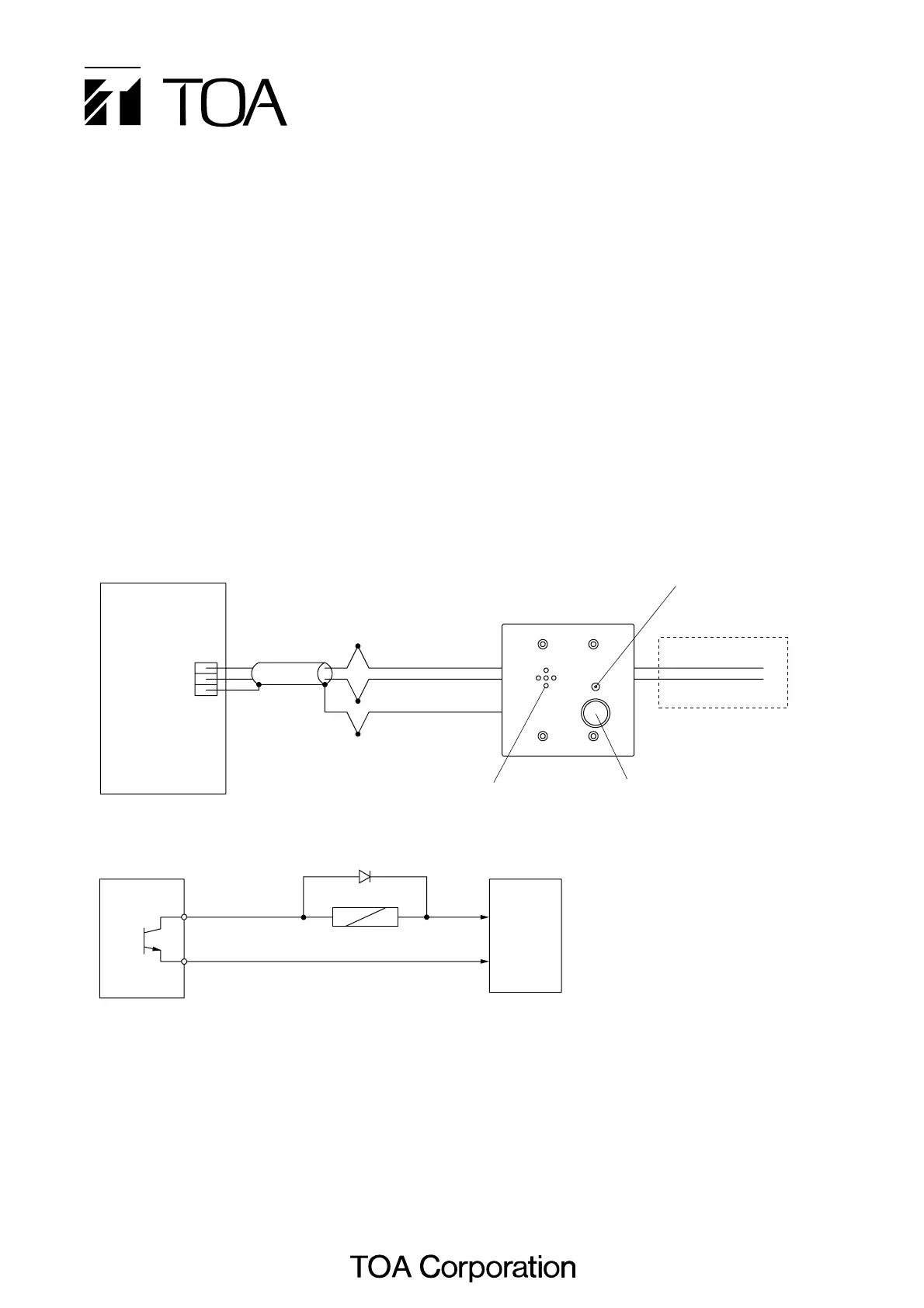

2. CONNECTION
Connection to the VS-900RS (for 25 V line)
(VS-900RS)
A
B
C
Orange
Brown
Black
Speaker
Call button
Call lamp (RS-180 only)
Blue (HOT)
White (COM)
Open collector output
(RS-180 only)
RS-150/-160/-170/-180
External
power supply
relay
diode
+24 VDC
GND
+
-
Blue (HOT)
White (COM)
RS-180
3. OPERATION
Pressing the call button calls the control station. The call lamp then flashes until the conversation begins, and
it remains lit during the conversation (RS-180 only). The open collector output is activated immediately after
pushing call buttons and remains active until call is cancelled (RS-180 only).
Note: RS-180 open collector output is 30 mA / 24 VDC (max.).
Connection to the external relay (RS-180 only)
Problemløsning TOA RS-170
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 120 mm |
| Dybde: | 57.5 mm |
| Højde: | 120 mm |
| Vægt: | 540 g |
| Antal pr. pakke: | 1 stk |
| Produktfarve: | Sølv, rustfrit stål |
| Driftstemperatur (T-T): | -10 - 50 °C |
| Materiale: | Metal |
| Monteringstype: | Væg |
| Mærke kompatibilitet: | TOA |
| Række: | 0.5 km (546 yd)/φ0.5 mm (AWG24), 0.8 km (874 yd)/φ0.65 mm (AWG22), 1.3 km (1421 yd)/φ0.9 mm (AWG19) |
