Thank you for purchasing TOA's Projection Speakers.
Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the
instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this
section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future
reference.

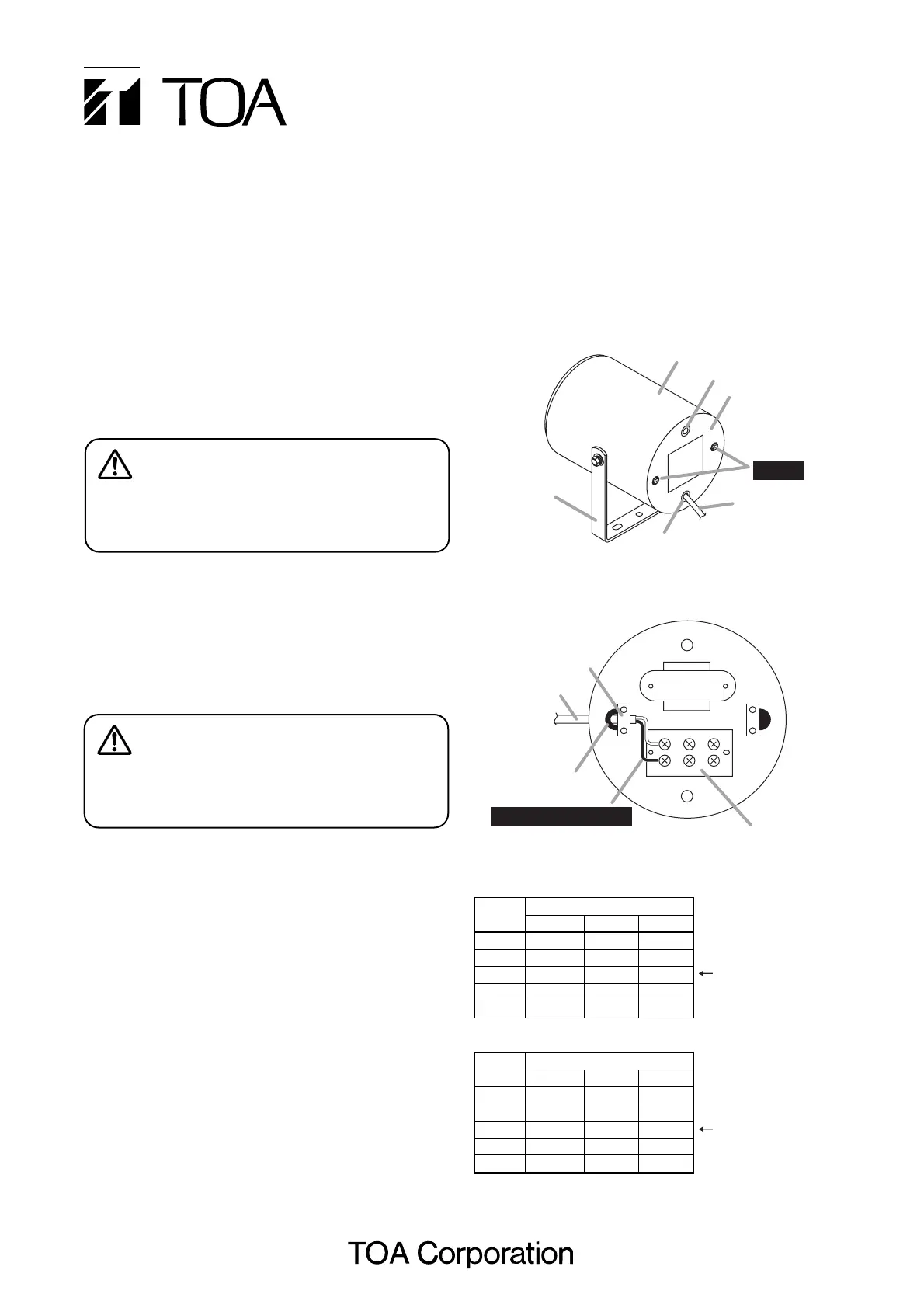

PJ-100W, PJ-200WPROJECTION SPEAKERS
INSTRUCTION MANUAL
Factory-preset
values
Line Voltage
Imp.
50 V 70 V 100 V
250 Ω 10 W
––
500 Ω 5 W 10 W
–
1 kΩ 2.5 W 5 W 10 W
2 kΩ 1.25 W 2.5 W 5 W
4 kΩ 0.63 W 1.25 W 2.5 W
[PJ-100W]
[PJ-200W]
Cabinet
Cover
Speaker cable
Grommet B
Grommet A
Bracket
Screws
Detach the black input cable (HOT) and connect it to the
terminal of the desired input impedance/wattage according
to the tables below.
4. IMPEDANCE CHANGE
When changing impedance, follow the procedure below
after unscrewing and removing the cover.
• Install the speaker only in a location that can structurally
support the weight of the speaker and the mounting
bracket. Doing otherwise may result in the speaker falling
down and causing personal injury and/or property damage.
• Do not stand or sit on, nor hang down from the speaker
as this may cause it to drop, resulting in personal injury
and/or property damage.
• Do not operate the speaker for an extended period of
time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate
and result in a fire.
2. GENERAL DESCRIPTION
The PJ-100W and PJ-200W Projection Speakers are
designed for indoor use. The built-in terminal board
provides an easy cable connection and allows bridge
wiring. Its wide frequency range makes it suitable for use
in both paging and BGM applications.
3. FEATURES
• Maximum input: 15 W (PJ-100W), 30 W (PJ-200W).
• Built-in transformer for 50 V, 70 V and 100 V speaker
line.
• Two grommets for parallel (bridge) connection.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
Factory-preset
values
Line Voltage
Imp.
50 V 70 V 100 V
125 Ω 20 W
––
250 Ω 10 W 20 W
–
500 Ω 5 W 10 W 20 W
1 kΩ 2.5 W 5 W 10 W
2 kΩ 1.25 W 2.5 W 5 W
[Back side view of cover removed]
Grommet A
COM
Terminal board
Speaker cable
Cable clump A
Black input cable (HOT)
Note: The black input cable has been connected to the
terminal of 1 kΩ impedance for the PJ-100W and
500 Ω for the PJ-200W.
