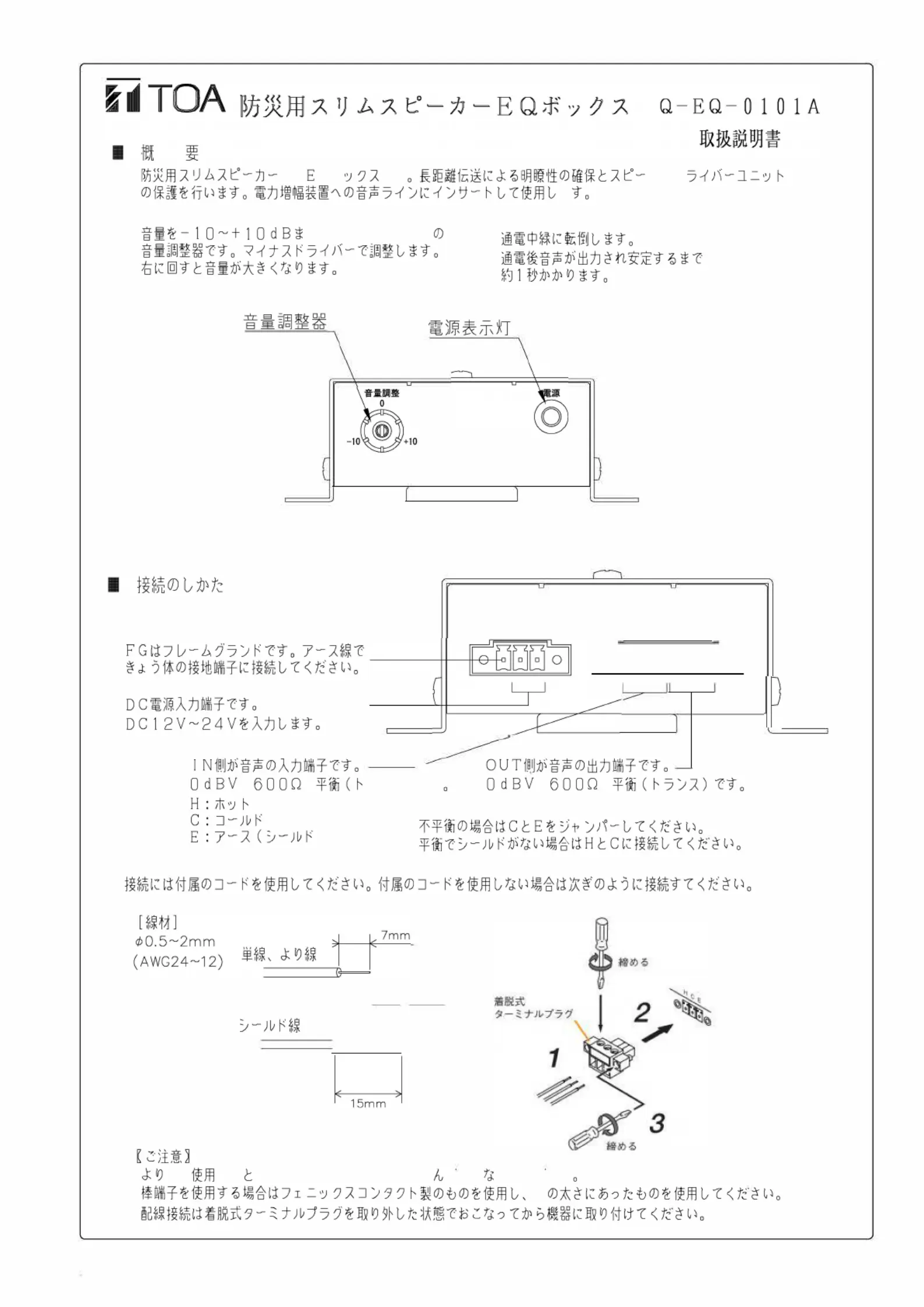

LONG RANGE SLIM ARRAY SPEAKER EQ BOX
INSTRUCTION MANUAL
DESCRIPTION
The EQ box exclusive used for the long range slim speaker. This product ensures clarity by long distance
transmission and protect the speaker driver unit. To use this product, please insert it to power amplier on
audio line.
This is semi-xed type volume controller that
can adjust the volume from -10 to +10 dB.
Adjust by minus screwdriver. To increasing the
volume, please turn it to the right.
The power led light turns to green when
power is ON.
After power is ON, it takes about 1 second
untill the sound is outputted and stabilized.
Volume controller
Power indicator light
HOW TO CONNECT
FG stands for frame gound. Using
earth wire to connect FG to the ground
terminal of enclosure
DC power input terminal.
Input DC voltage 12V~24V.
0dBV 600 balance (transformer)Ω
"IN" side is audio input terminal.
H : hot
C : cold
E : earth (shield)
0dBV 600 balance (transformer)Ω
"OUT" side is audio output terminal.
In case of imbalance, please jumper C and E.
If there is no shield at balance, please connect to H and C.
When connecting, please use associated cable cord. If do not use associated cable cord, please connect
as below.
Wire
φ0.5~2mm
(AWG24~12)
Single wire,
twisted wire
Shield wire
Tighten
Tighten
Removable
terminal plug
When using twisted wire, please do not pre-soldering in uncovered part.
If using bar terminal, please use one that manufactured by Phoenix Contact and matches the thickness of wire .
Please do wiring connection after removing the removable terminal plug.
* Remark:
