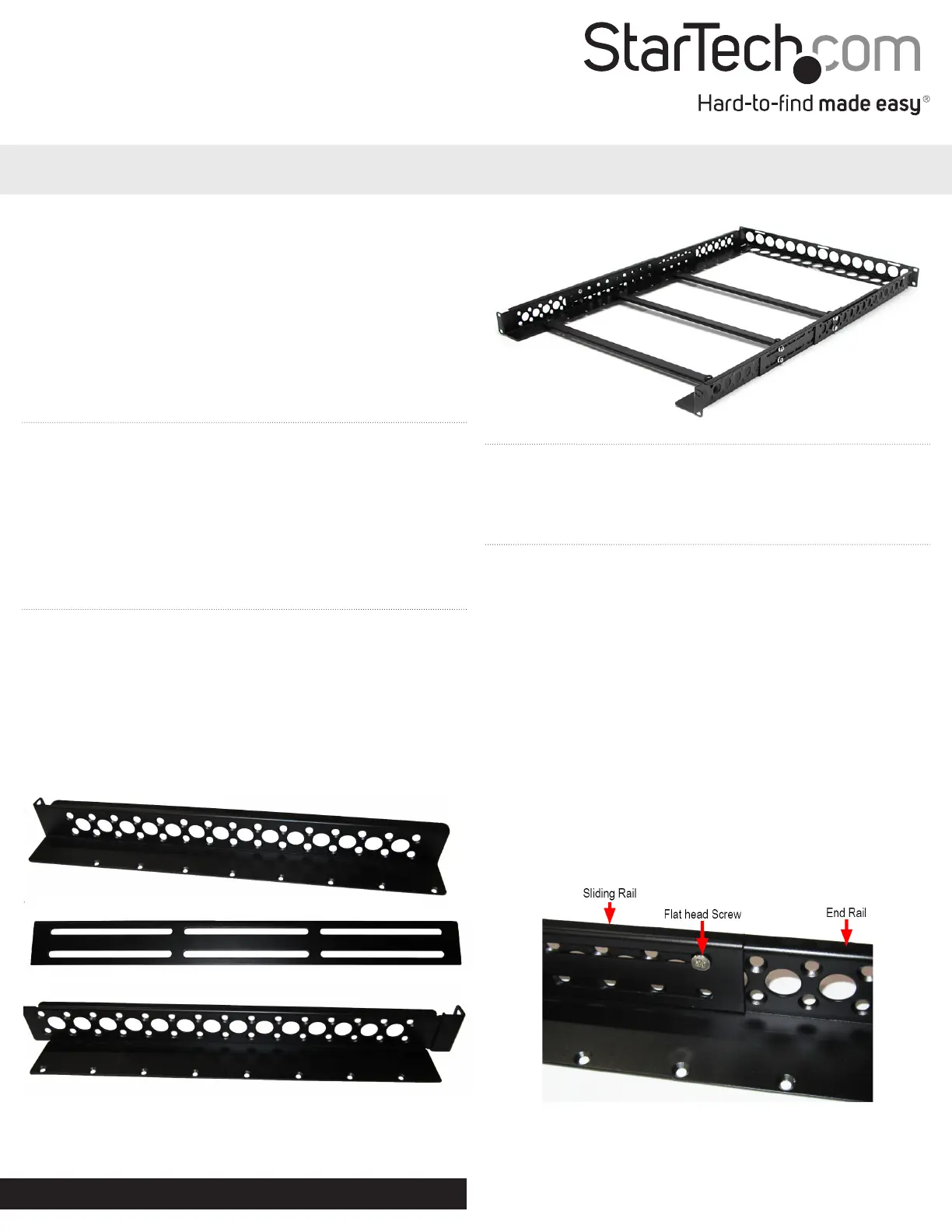

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 10/26/2012
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1x Set Universal Rack Rails
• 8/16/14 x M5 Panel Screws (1U/2U/3U)
• 8/16/14 x M5 Cage Nuts (1U/2U/3U)
• 1x M5 Wrench
System Requirements
• Standard 19in wide rack
• 1U/ 2U/ 3U of rack space
UNIRAILS1U / UNIRAILS2U / UNIRAILS3U
1U/ 2U/ 3U Fixed 19” Adjustable Depth Universal Server Rack Rails
Installation
1. Determine the mounting depth of the rack/cabinet.
2. Gather the components of the two side rails. Each side rail is
comprised of 3 pieces: two End Rails with the rack mounting
brackets and the at middle section with the adjustable slide cut
outs.
NOTE: Look carefully at the End Rails, as there are two dierent sets.
The lip along the top edge will be taller on one set, than the other.
The side rails use one of each.
End Rail #2
Sliding Rail
End Rail #1
Tools Required
• Phillips screwdriver
3. Lay out the two End Rails end-to-end (rack mounting bracket at
opposite ends), and then place the Sliding Rail over top of the
smaller of the End Rail (see “Inside View” photo for reference).
Place the other End Rail overtop the Sliding Rail, so it is now
sandwiched between the two End Rails.
4. Adjust the length of the rails, such that the rack mounting
brackets are slightly longer than the mounting depth of the rack.
5. Fasten the middle Sliding Rail to each End Rail with 4 screws and
nuts each (2 on the top slide and 2 on bottom) with a screwdriver
and the provided wrench. The screw should go in from the inside
of the rail,with the nut on the outside (underneath the lip).
Inside View
*installation photos are for reference only
*actual product may vary from photos
Problemløsning StarTech.com UNIRAILS2U
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Type: | Stativskinne |
| Vægt: | 3700 g |
| Produktfarve: | Sort |
| Pakkevægt: | 4000 g |
| Pakkedybde: | 105 mm |
| Pakkebredde: | 493 mm |
| Pakkehøjde: | 109 mm |
| Husmateriale: | Stål |
| Certificering: | CE, UL, REACH, TAA |
| Harmoniseret systemkode (HS): | 85389099 |
| Bæredygtighedscertifikater: | RoHS |
| Hovedkassen højde (udvendigt): | 109 mm |
| Hovedkassens længde (udvendigt): | 105 mm |
| Hovedkassens bredde (udvendigt): | 493 mm |
| Produkter pr. hovedkasse (udvendigt): | 1 stk |
| Monteringssæt: | Ja |
| Maksimal vægtkapacitet: | 45.3 kg |
| Skruer inkluderet: | Ja |
| Rackkapacitet: | 2U |
| Montering - dybde (maks): | 1054 mm |
| Antal skruer: | 16 |
| Montering - dybde (min): | 420 mm |
| Skruetype: | M5 |
| Burmøtrikker inkluderet: | Ja |
| Antal burmøtrikker: | 16 |
