Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: July 15, 2022

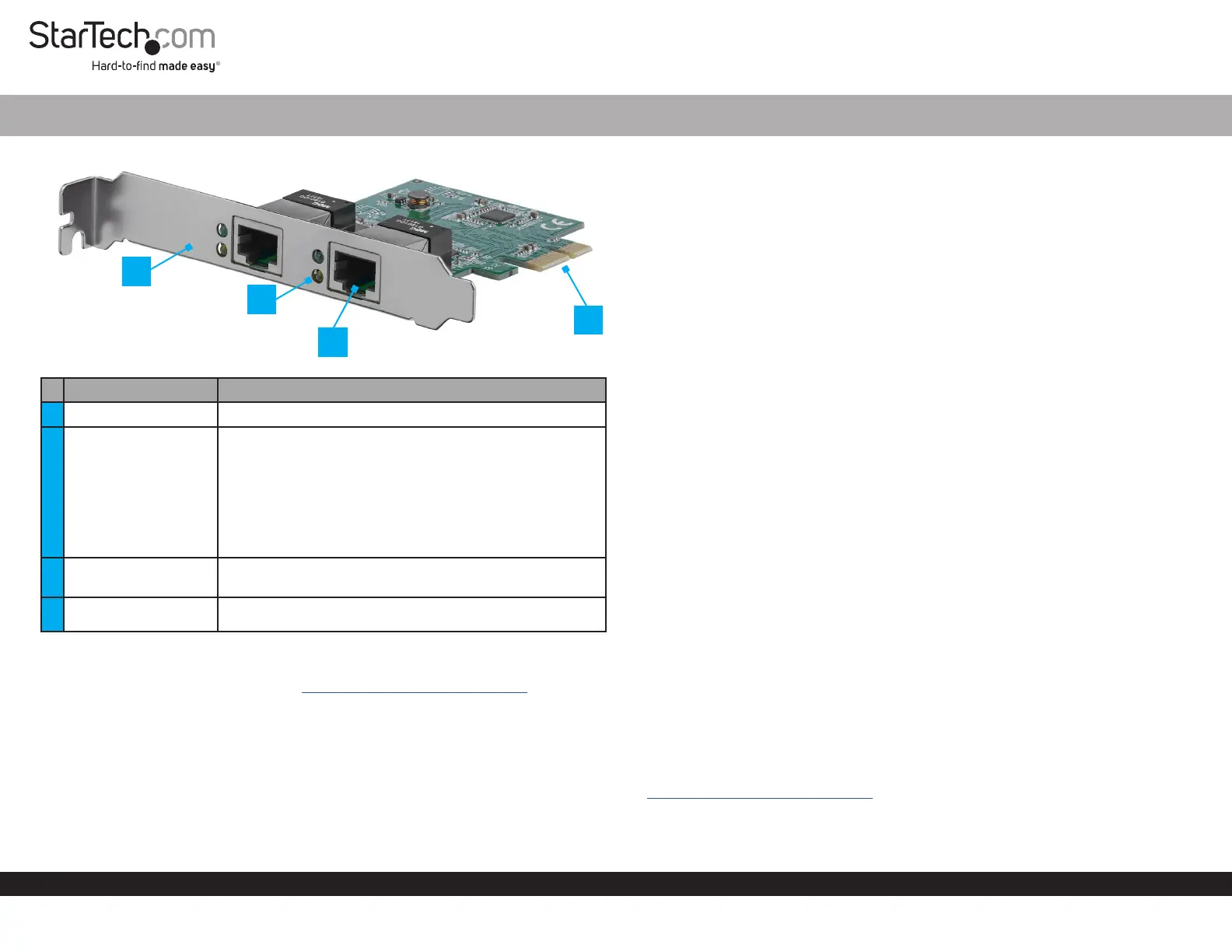

Product Diagram (ST1000SPEXD4)
Port/LED/Connector Function
1 Bracket • Both Low-Prole and Full-Height Brackets are included
2
Link/Activity LED
Indicators
• Link/Activity
• Solid Green: Link/cable detected
• Flashing Green: Data transmission
• O: No link/cable detected
• Gigabit
• Solid Yellow: 1000 Mbps (Gigabit) Link detected
• O: 10/100 Mbps Link or No link detected
3 2x Ethernet Port
• Used to connect a Network Cable to the Network
Card
4 PCIe p1-x1 Connector • Insert into a PCI Express Slot
Requirements
For the latest requirements, please visit www.startech.com/ST1000SPEXD4
• Computer with an available PCI Express Slot (x1, x4, x8, or x16)
Package Contents
• PCIe Network Card x 1
• Low-Prole Bracket x 1
• Quick-Start Guide x 1
2 Port PCI Express Gigabit Ethernet Network Card
Installation
Install the PCI Express Card
WARNING!
PCI Express Cards can be severely damaged by static electricity. Make sure that
you are properly grounded before you open your Computer Case or touch the PCI
Express Card. You should wear an Anti-Static Strap when you install any computer
component. If an Anti-Static Strap isn’t available, discharge any built-up static
electricity by touching a large Grounded Metal Surface for several seconds. Only
handle the PCI Express Card by its edges and don’t touch the gold connectors.
1. Turn o your Computer and any Peripheral Devices that are connected to it (for
example, Printers, External Hard Drives, etc.).
2. Unplug the Power Cable from the back of your Computer.
3. Disconnect any Peripheral Devices that are connected to your Computer.
4. Remove the Cover from your Computer Case. Consult the documentation that
came with your Computer for details about how to do this safely.
5. Locate an open PCI Express Slot and remove the corresponding Slot Cover Plate
from the back of your Computer Case. Consult the documentation that came with
your Computer for details about how to do this safely. This card works in PCI Express
x1, x4, x8, or x16 slots.
6. Gently insert the PCI Express Card into the open PCI Express Slot and fasten the
Bracket to the back of the Computer Case.
Note: If you install the PCI Express Card into a Small Form Factor or a Low-Prole
Desktop System, it may be necessary to replace the pre-installed standard Full-
Height Bracket with the included Low-Prole Bracket.
7. Return the Cover back onto your Computer Case.
8. Reconnect the Power Cable to the back of your Computer.
9. Reconnect all of the Peripheral Devices that were disconnected in step 3.
10. Turn on your Computer and Peripheral Devices.
Install the Driver
1. On your Computer, open an Internet Browser and navigate to
www.startech.com/ST1000SPEXD4
2. Click the Drivers & Downloads tab.
3. Under Driver(s), download the Driver for your operating system.
1
3
4
2
1
