Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: June 2, 2020 11:37 AM

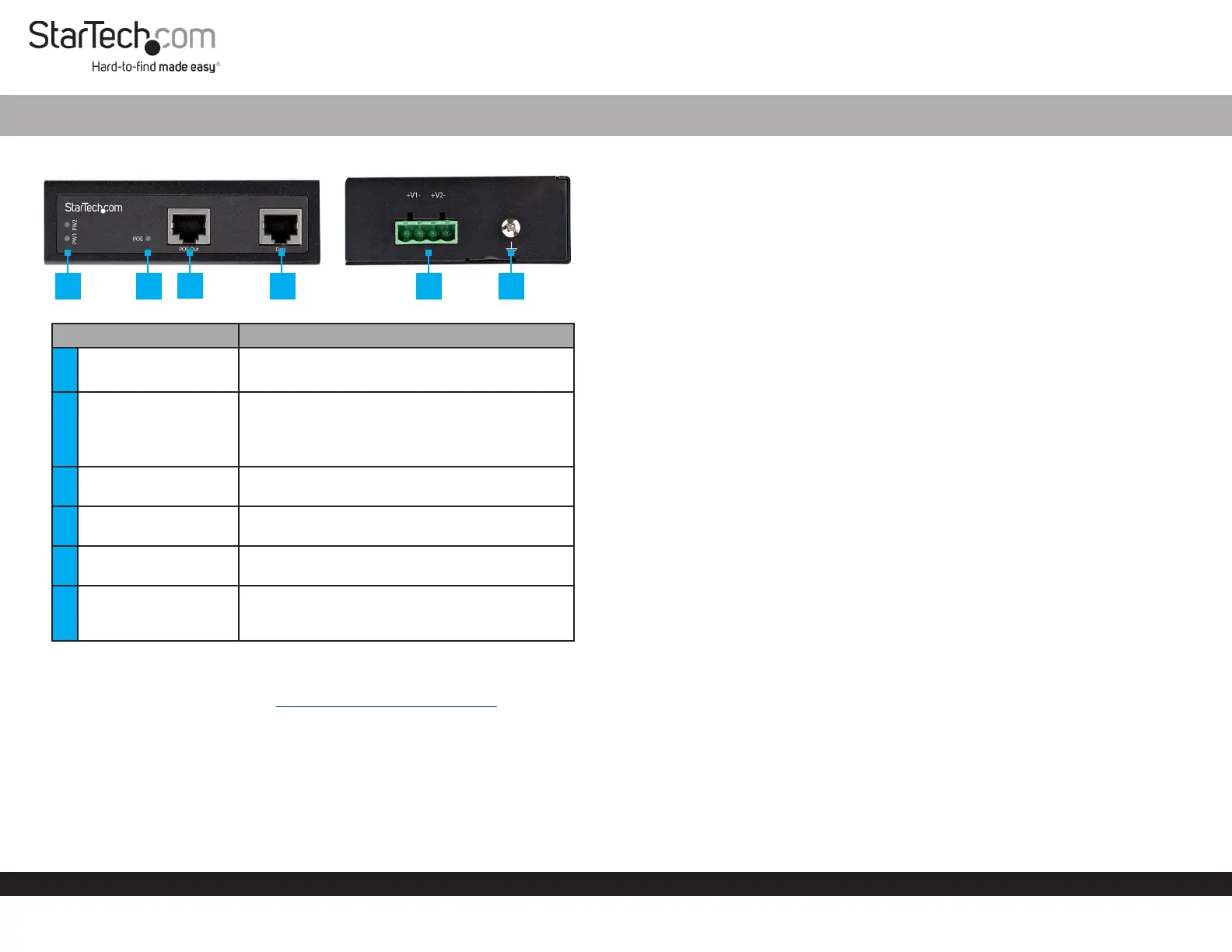

Product Diagram (POEINJ1G90W)
Component Function
1 Power LEDs
• Green: A Power Source is detected.
• O: A Power Source is not detected.
2 PoE LED
• Amber: Indicates that the PoE Injector is
providing power.
• O: Indicates that the PoE Injector is in idle
mode.
3 PoE Out Port
• Connect a Powered Device (PD) to the PoE
Injector.
4 Data Port
• Connect a Network Switch to the PoE
Injector.
5
4-Pin Terminal Block
V1 and V2
• Connect an external DC Power Source (48-56V
DC Input) to the PoE Injector.
6 Ground Screw
• Connect a ground connection to the Ground
Screw when connecting a DC Power Source to
the PoE Injector.
Requirements
For the latest requirements, please visit www.startech.com/POEINJ1G90W
• Small Flat Head Screwdriver x 1
• (Optional) Phillips® Head Screwdriver x 1
• (Optional) Writing Utensil x 1
• PoE Powered Device (PD) x 1
• Network Switch x 1
• DC Power Source or Universal Power Adapter with Type N (OD: 5.5 mm, ID: 2.5 mm)
Barrel Connector x 1
90W Industrial Grade Hardened 802.3bt PoE Injector | 1G (1000 Mbps)
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable x 2
Powering the PoE Injector
Terminal Block
Connecting and installing the 4-Wire Terminal Connector, must be completed by a
licensed Electrician.
Notes: Make sure that you turn o the power source before connecting the power wire
to the PoE Injector.
Do not exceed the recommend power source voltage as it may result in personal or
product damage.
1. Using a Small Flat Head Screwdriver, loosen the two screws (V1 or V2) on the
4-Wire Terminal Connector (included).
2. Connect the Power Wires from a DC Power Source (48 - 56V DC), or the provided
Barrel Power Connector Adapter, to the proper Terminal Block Connectors to
the terminals are marked on the PoE Injector’s Casing. Connect the positive wire to
V+ and the negative wire to V-.
3. Tighten the two screws on the 4-Wire Terminal Connector.
4. Insert the 4-Wire Terminal Connector in the 4-Wire Terminal Block on the PoE
Injector.
5. To connect a second Power Source to the PoE Injector, repeat steps 1 - 4.
6. Using a Phillips Head Screwdriver, loosen the Ground Screw on the PoE Injector.
7. Connect the Ground Wire from a DC Power Source to the Ground Screw on the
PoE Injector.
8. Using the Phillips Head Screwdriver, tighten the Ground Screw to secure the
Grounding Wire to the PoE Injector.
(Optional) Barrel Connector
• Connect a Type N (OD: 5.5 mm, ID: 2.5 mm) Barrel Connector from a Universal
Power Adapter to the Terminal Block to Barrel Power Connector Adapter.
Connecting the PoE Injector
Notes: Make sure the total length of the CAT5e/6 Cable connecting the PD Device
to the PoE Injector and the CAT5e/6 Cable connecting the PoE Injector to the
Remote Switch does not exceed 100 meters in total length.
The PoE Injector is compatible with both Power over Ethernet (PoE) and 95W Power
over HDBaseT (PoH).
1 2
3
4 5 6
Problemløsning StarTech.com POEINJ1G90W
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Kode for international beskyttelse (IP): | IP30 |
| Type: | Netværksgentager |
| Bredde: | 32 mm |
| Dybde: | 82 mm |
| Højde: | 104 mm |
| Vægt: | 174 g |
| Produktfarve: | Sort |
| Pakkevægt: | 416 g |
| Pakkedybde: | 162 mm |
| Pakkebredde: | 211 mm |
| Pakkehøjde: | 64 mm |
| Opbevaringstemperatur (T-T): | -40 - 85 °C |
| Relativ luftfugtighed ved drift (H-H): | 5 - 95 % |
| Driftstemperatur (T-T): | -40 - 75 °C |
| Ethernet LAN-datahastigheder: | 10,100,1000 Mbit/s |
| Husmateriale: | Aluminium |
| Hurtig start guide: | Ja |
| Certificering: | CE, FCC, UL |
| Netværksstandarder: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| LED-indikatorer: | Ja |
| Harmoniseret systemkode (HS): | 85176990 |
| Bæredygtighedscertifikater: | CE, RoHS |
| Hovedkassen højde (udvendigt): | 225 mm |
| Hovedkassens længde (udvendigt): | 345 mm |
| Hovedkassens bredde (udvendigt): | 355 mm |
| Maksimal overførselsafstand: | 100 m |
| Produkter pr. hovedkasse (udvendigt): | 10 stk |
| Strøm over Ethernet (PoE): | Ja |
| Gennemsnitstid mellem fejl (MTBF): | 540891 t |
| Strømstiktype: | Type N |
| Understøttede netværksprotokoller (IPv4): | CSMA/CD |
| Total Power over Ethernet (PoE): | 90 W |
| Jumbo Frames support: | Ja |
| Dataoverførselshastighed: | 1000 Mbit/s |
| Power over Ethernet (PoE) porte, antal: | 2 |
| Auto-forhandling: | Ja |
| Klemrække port: | Ja |
| Power over Ethernet (PoE) spændingsområde: | 48 - 56 V |
| Auto MDIX IEEE: | Ja |
| Duplex system: | Fuld |
| Chipsæt: | Microsemi PD69204 |
