Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: September 29, 2023
Product ID
2S232422485-PC-CARD
PS74ADF-SERIAL-CARD
Port/LED/
Connector
Function
1Bracket
• Secures the card to the Host Computer Case
• The comes pre-installed Full Prole Bracket
• The is included Low Prole Bracket
2Activity LEDs
• Data Receive LED: GreenFlash to show activity
• Data Transmit LED: YellowFlash to show activity
3DB9 Serial Ports • Connect Serial Peripheral Devices
4
Serial Mode
Switch
• Change the between , , DB9 Serial Ports RS-232 RS-422
or RS-485

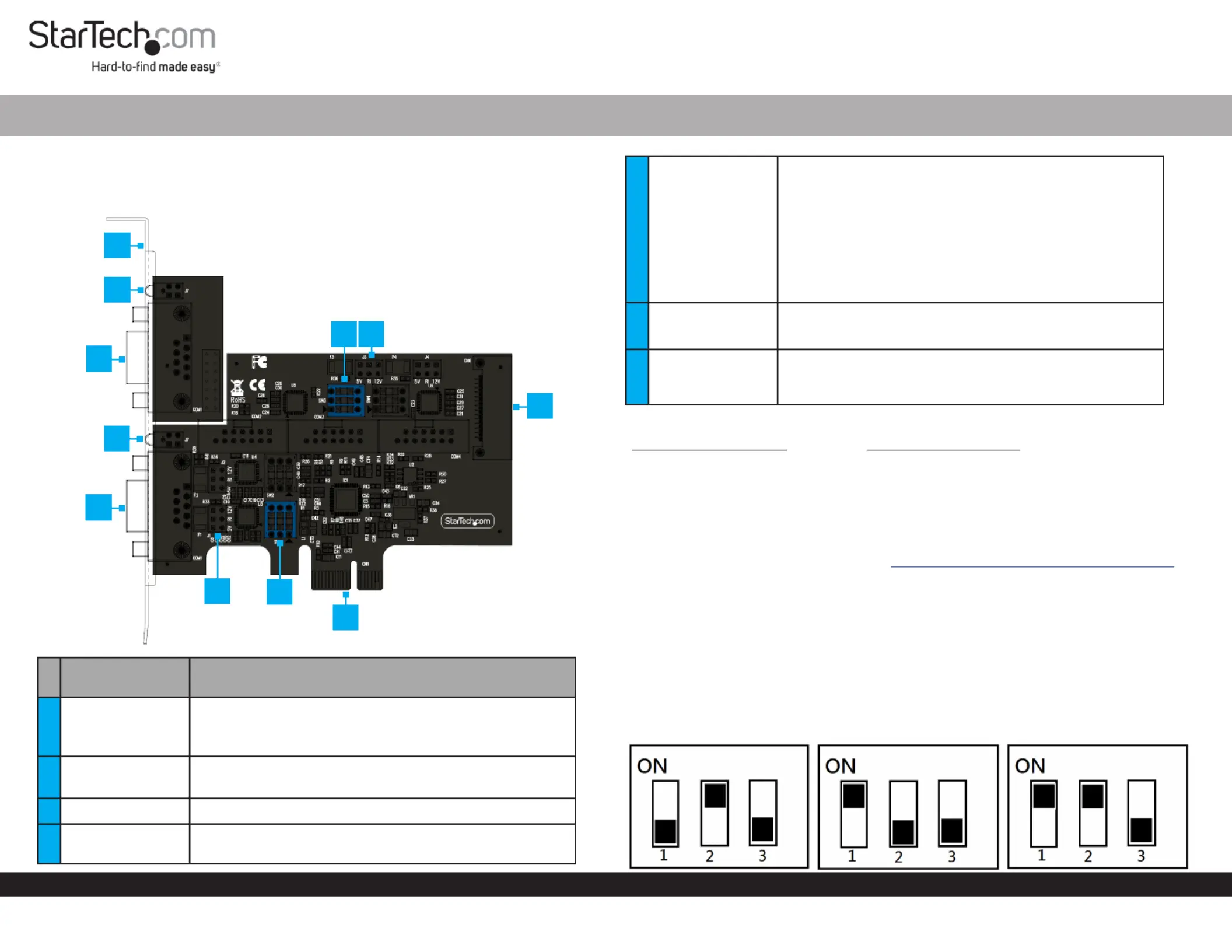

PCIe p1-x1 RS232/422/485 Serial Card - Low-Prole Brackets Included
5
J1/J2/J3/J4
Jumper
• Optional: Used to change the of Voltage Output DB9
Pin 9
• RI DB9 Pin 9disables power on . This is the default
setting.
• 12V SATA Power Connector draws power from the
( 12VOutputs )
• 5V SATA Power Connector draws power from the
( 5VOutputs )
6
PCIe p1-x1
Connector
• Insert into a on thePCI Express Slot Host Computer
7
SATA Power
Connector
• Optional: Connect an available SATA Power Connector
from the to provide power over Host Power Supply
DB9 Pin 9
Package Contents
2S232422485-PC-CARD:
• Serial Card x 1
• Low-Prole Bracket x 2
• Ribbon Cable x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit: www.StarTech.com/2S232422485-PC-CARD
• Computer with an available PCI Express Slot (x1, x4, x8, or x16)
Installation
DIP Switch Settings
To change the between , , and , use the DB9 Serial Ports RS-232 RS-422 RS-485
respective located on the . enables/Serial Mode Switch Serial Card Dip Switch 3
disables a , used for impedance matching between the 120 Ω Termination Resistor
Tx+/Tx- and Rx+/Rx- (RS-422/RS-485 4-wire) and D+/D- (RS-485 2-wire) lines. The
purpose is to prevent reections on the line that may cause signal errors.
RS-232
RS-485 (Half-Duplex)
RS-422/485 (Full-Duplex)
1
3
3
2
2
6
4
4
5
5
7
*2S232422485-PC-CARD shown above
PS74ADF-SERIAL-CARD:
• Serial Card x 1
• Low-Prole Bracket x 4
• Ribbon Cable x 3
• Quick-Start Guide x 1
Problemløsning StarTech.com 2S232422485-PC-CARD
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 102 mm |
| Dybde: | 105 mm |
| Højde: | 16 mm |
| Vægt: | 57 g |
| Produktfarve: | Sort |
| Pakkevægt: | 147.6 g |
| Pakkedybde: | 170 mm |
| Pakkebredde: | 142 mm |
| Pakkehøjde: | 30 mm |
| Opbevaringstemperatur (T-T): | -20 - 80 °C |
| Relativ luftfugtighed ved drift (H-H): | 20 - 80 % |
| Driftstemperatur (T-T): | 0 - 70 °C |
| Hurtig installationsvejledning: | Ja |
| Kabler inkluderet: | Båndkabel |
| Bæredygtighedscertifikater: | RoHS, Trade Agreements Act (TAA) |
| Understøttede Linux-operativsystemer: | Ja |
| Hovedkassen højde (udvendigt): | 306 mm |
| Hovedkassens længde (udvendigt): | 345 mm |
| Hovedkassens bredde (udvendigt): | 685 mm |
| Værtsgrænseflade: | PCIe |
| Intern: | Ja |
| Produkter pr. hovedkasse (udvendigt): | 75 stk |
| Overholdelse af bæredygtighed: | Ja |
| Understøttede operativsystemer til servere: | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Monteringsbeslag inkluderet: | Ja |
| Flowkontrol support: | Ja |
| Seriel grænsefladetype: | RS-232/422/485 |
| Antal serielle porte: | 2 |
| Baud hastighed: | 921.6 Kbit/s |
| Data-bits: | 5, 6,7, 8,9 |
| Stop bits: | 1, 1.5, 2 |
| Output-grænseflade: | Seriel |
| Udvidelseskort standard: | PCIe 2.0 |
| Chipsæt: | ASIX - AX99100 |
| FIFO (først ind, først ud): | 256 B |
| Elektrostatisk afladning association (ESD): | 15 kV |
| Paritetsbit: | Even, Mark, N,Odd, Space |
