Receiver Wiring Adaptor
120 70-7003
Revision 02/15/18
STEP 1 -- MATCH & CONNECT WIRES
*120707003*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.
Copyright 2018 Crutchfield Corporation

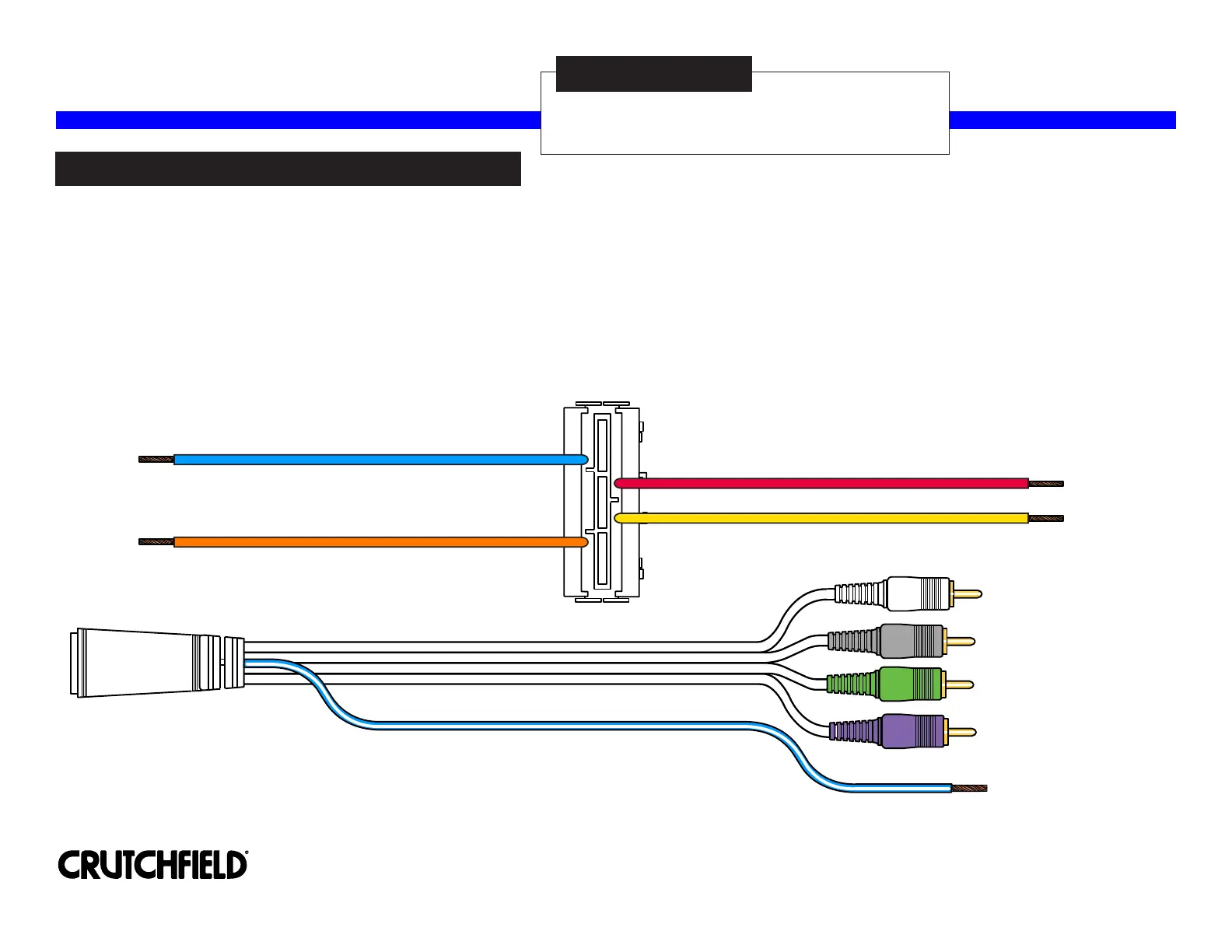

Yellow - 12 Volts Constant Power
Red - 12 Volts Switched Power
Blue - Power Antenna
Orange - Illumination
White - Left Front Input
Blue/White - Amplifier Turn-On
Gray - Right Front Input
Green - Left Rear Input
Violet - Right Rear Input
