Receiver Wiring Adaptor
120 70-5006
Revision 12/01/14
STEP 1 -- MATCH & CONNECT WIRES
*120705006*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
If your receiver does not have a dimmer or illumination wire, tape off the Orange/White or Orange wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on page 3.
A.
B.
C.
D.
Copyright 2014 Crutchfield Corporation

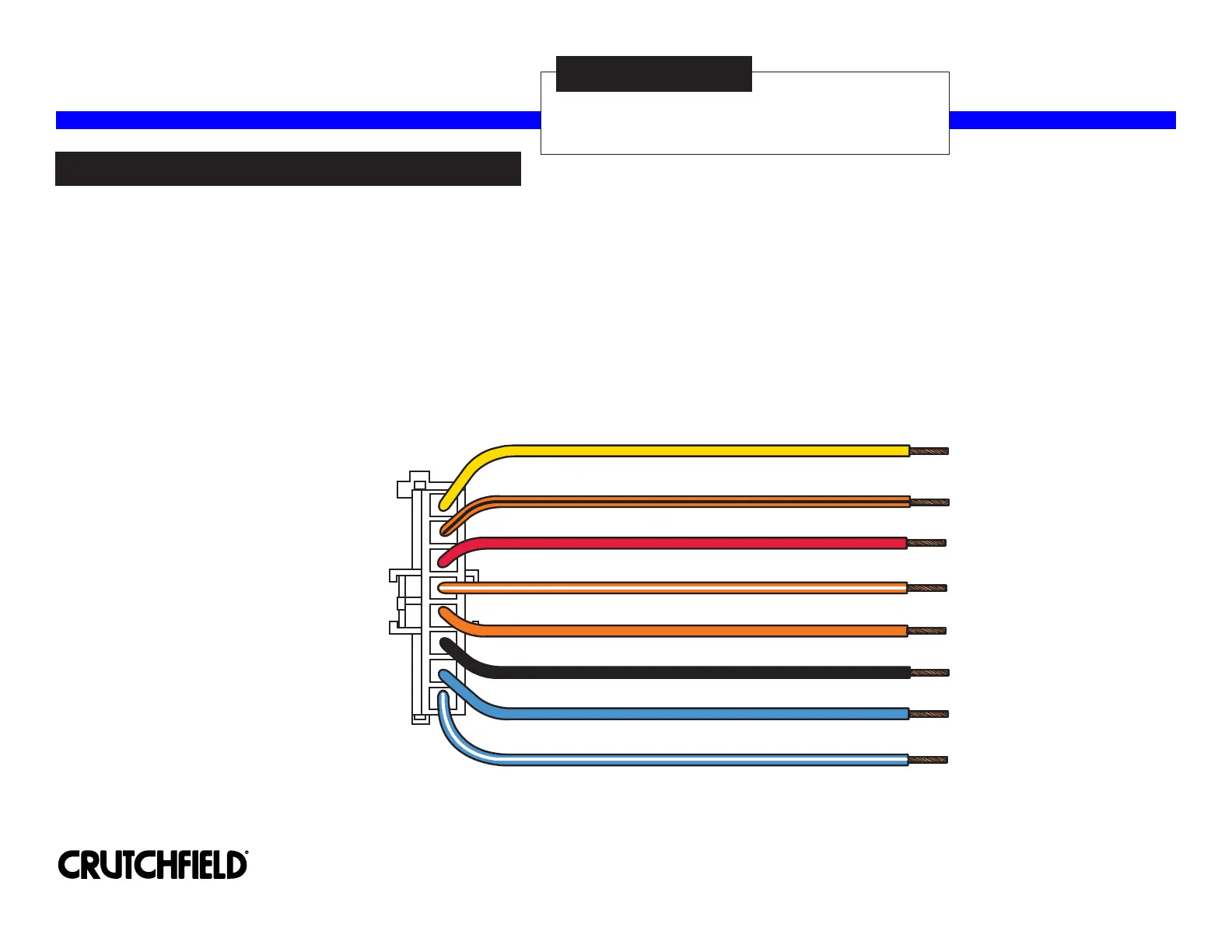

Yellow - 12 Volts Constant Power
Orange/Black - (not used - tape off)
Blue - Power Antenna
Black - Chassis Ground
Power
Harness
Orange - Illumination
Blue/White - Amplifier Turn-On
Orange/White - Dimmer
Red - 12 Volts Switched Power
