1
2A9185-011
Hoshizaki Optional Heated Overow Drain Pan Kit
HS-5462
For Use with Steelheart Refrigerator Series Upright Models
Installation Instructions

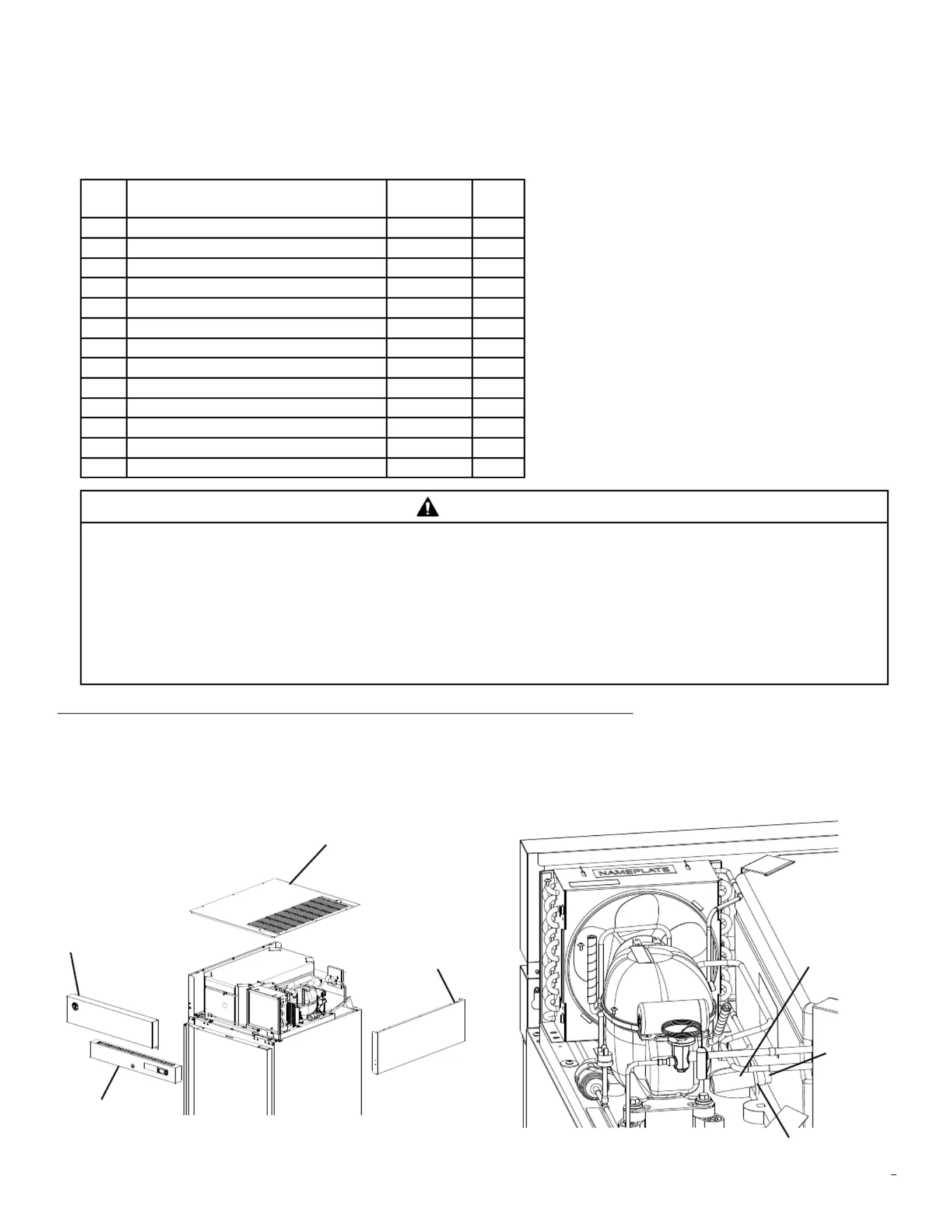

Check to ensure that all parts are included:
Index
No. Description
Part
Number Qty
1 Heated Overow Drain Pan 3B0185-01 1
2 Heated Overow Drain Pan Bracket 3B0247-01 1
3 Drain Elbow (1 and 2) 4A1017-01 2
4 Vinyl Hose A (15 1/8 in. (385 mm)) 7725-1923 1
5 Vinyl Hose B (68 in. (1727 mm)) 7725-1923 1
6 Wire Harness (8 ft. (2 m)) 4A6586-01 1
7 Self-Drilling Hex Screw 7B03I1210 8
8 437618-01 8Nylon Tie Mount
9 8911-0200 8Nylon Tie
10 Wire Clamp 4A0809-03 1
11 Bushing 428394-01 2
12 Junction Box 3B0361-01 1
13 Wiring Label 3B0115-01 1
WARNING
• The appliance should be serviced only by qualied service personnel to reduce the risk of death, electric
shock, serious injury, or re.
• No installation or service should be undertaken until the technician has thoroughly read these instructions.
Failure to follow these instructions will adversely affect safety, performance, component life and warranty
coverage, and may result in costly water damage.
• To reduce the risk of electric shock, do not touch the plug with damp hands. Move the power switch to the
"OFF" position, then unplug the appliance from the electrical outlet before servicing.
Installation Instructions - Repeat these instructions for second kit on 3-section models
1) Unplug the appliance from the electrical outlet.
2) Move the appliance out to access the rear of the appliance.
3) Remove the front, control, right side, and top panels from the appliance. See Fig. 1.
4) Remove the nylon tie connecting the existing drain hose to the evaporator drain pipe. Remove the existing drain hose and discard.
See Fig. 2.
Fig. 1
Model Shown: R1A-FS
Top Panel
Right
Side Panel
Existing
Drain Hose
Nylon Tie
Fig. 2
Front Panel
Control Panel
Evaporator
Drain Pipe
