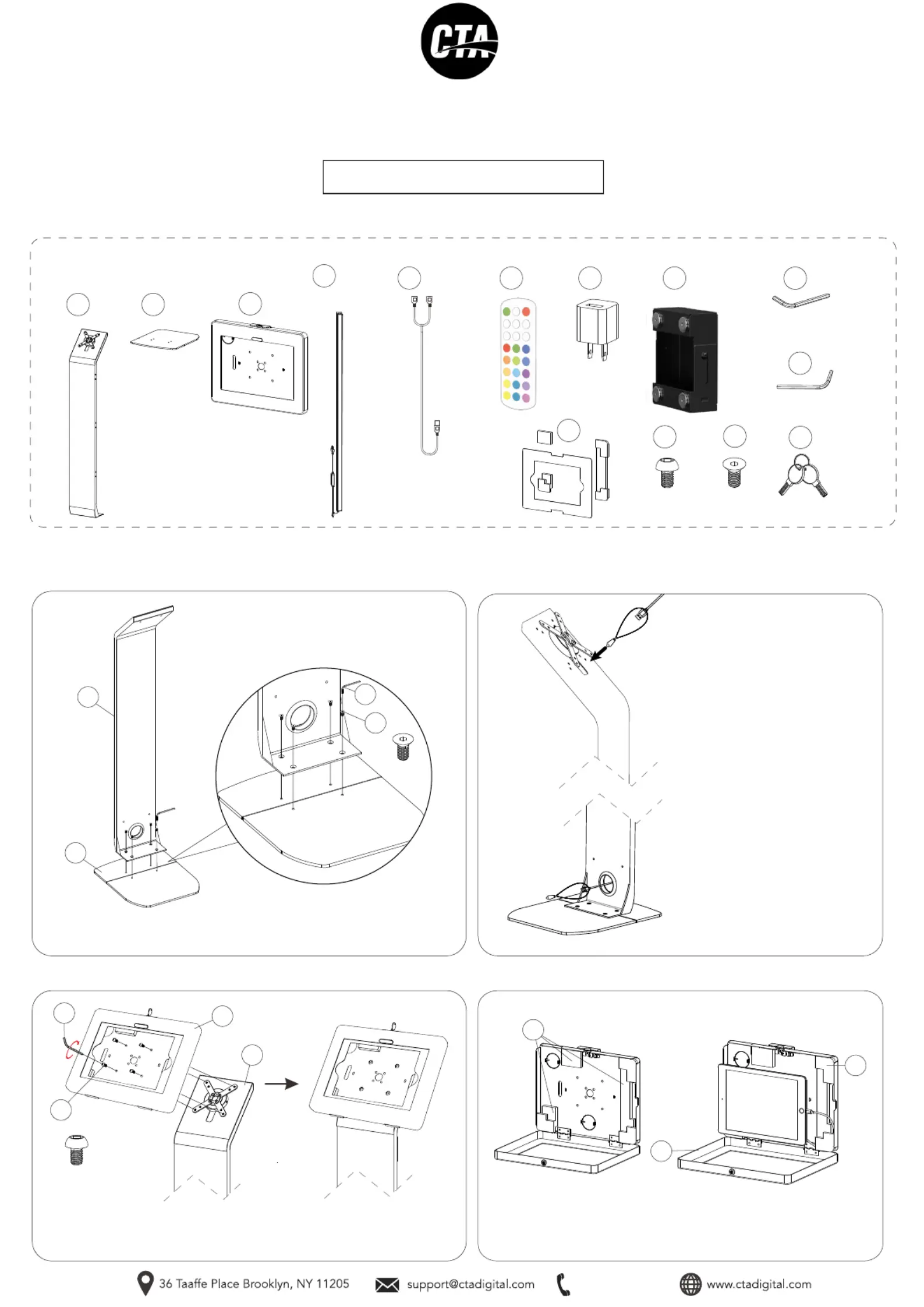

Premium Floorstand with LED Light Add-On
for 9-11" Tablets
PAD-LEDPARAF
INSTRUCTION - MANUAL
CONTENTS:
718-963-9845
INSTALLATION:
1. Assembling floorstand base:
3. Attaching enclosure to VESA plate: 4. Inserting tablet into enclosure:
1A. Allign the holes on the sntad (A) with holes on the base (B) and turn in
screws (M) with provided allen tool (J) until securely tightened. Shown above.
2B. When the cable reaches the
bottom of the stand, pull through the
hole at the stand back and remove
the weighted pendant as shown.
2A. To route a charge cable through
the stand, attach the weighted
pendant to your charge cable, then
pass through the cutout at the top of
the stand.
3A. Align enclosure (C) VESA holes to VESA plate holes in stand (A) and from the
front of enclosure turn in screws (L) into the threaded VESA holes with provided
allen tool (I) until securely thigtened. Shown above.
4A. Find the appropiate size foam padding (K) for the tablet you wish to use.
Make sure device is compatible for the enclosure. if having power/data cord
attached to tablet, slide it through the back of the foam as shown and out the
opening in the back.
**Tablet for illustration only,
NOT INCLUDED
M5 x 10
x4
M6 p1-x4
2. Cable routing:
K
K
C
C
A
I
A
B
M
J
L
x2
D
LED Bars
E
x1
F
x1
G
x1
H
x1
I
x1
M5 Allen Key
M5 x 10
L
x4
x1
N
J
x1
M6 Allen Key
M
x4
M6
K
x1
x1
C
x1
A
B
x1
