Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091522
1 of 4
- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains OnStar and chime functions.
- EIA color coded wiring for easy installation.
- Includes Double Din Dash kit
PRODUCT FEATURES:

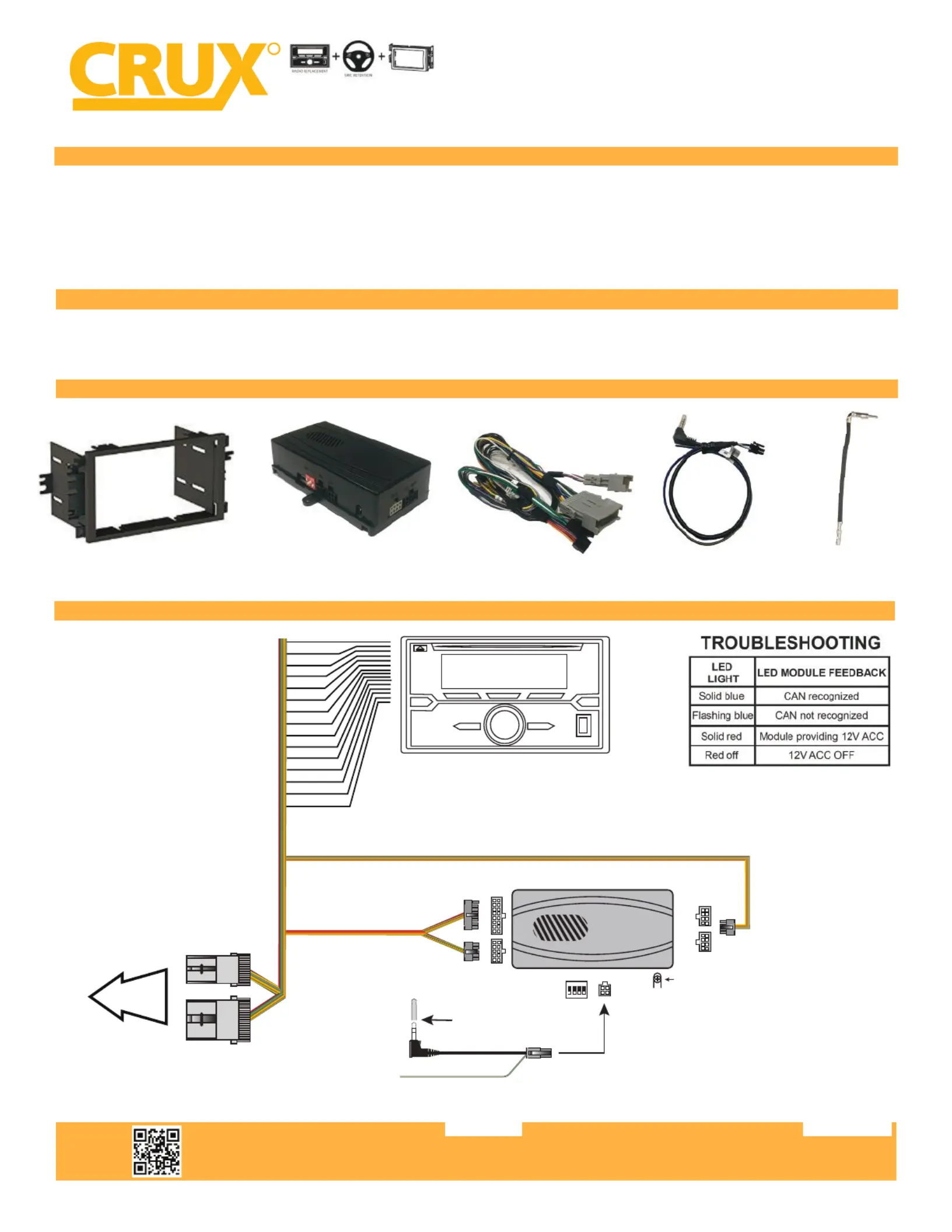

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Gear Purple/White
Parking Brake Yellow/Black
Illumina on (+) Orange
Amplifier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
TO FACTORY
HARNESS
24-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
10-Pin
Connector
SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermaket
radio SWC wire or
3.5mm port
DKGM-15 Module
DOUBLE DIN DASH KIT
DKGM-15 Harness SWC Cable Antenna Adapter
NOTES:
1. The Front and Rear fading are not retained on Y-91 Bose System.
2. The OnStar volume output is defaulted to low gain.
3. Does not retain rear seat volume controls.
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
DKGM-15
Radio Replacement with OnStar, SWC Retention, & Double DIN
Dash Kit for GM Class II Vehicles 2003 - 2013
