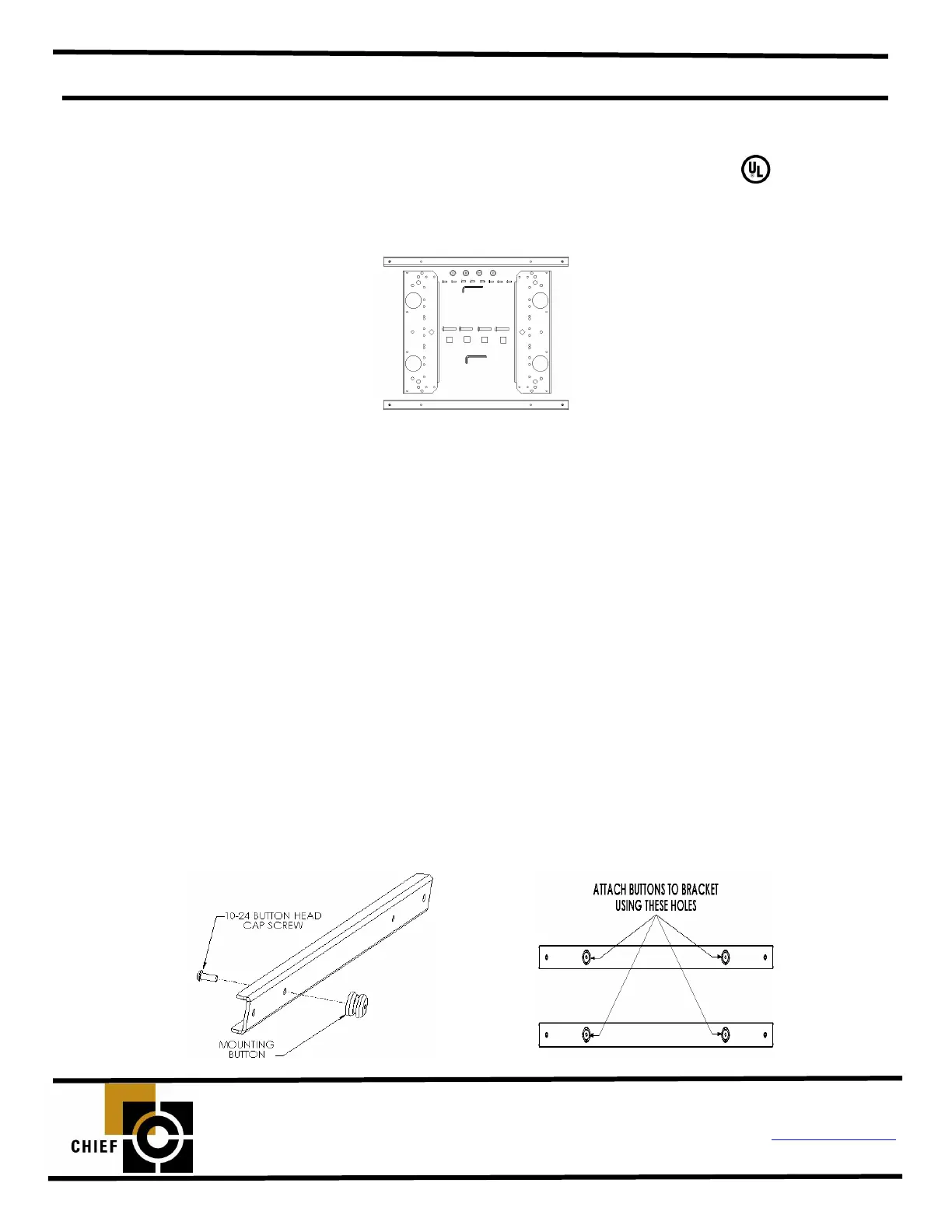

INSTALLATION INSTRUCTIONS
CHIEF MANUFACTURING INC. 8804-000205
1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing
8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com
SAVAGE, MINNESOTA 55378 USA 11/06
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 1
75
POUNDS (
79.38
KG).
PSB-2540
PLASMA DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Plasma Side Bracket (2) Plasma Top/Bottom Bracket
(4) Mounting Button - Tapped (8) 10-24 x .5 Button Head Cap Screw
(4) M8 x 25mm Philips Head Cap Screw (4) .75 X .344 X .50 Nylon Spacer
(4) Steel Washer (1) 1/8 Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
PLASMA DISPLAYS ARE EXTREMELY FRAGILE.
1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to top and bottom brackets (four places)
(see Figure 2 & Figure 3).
CAUTION!
Figure 1
WARNING!
Figure 2
Figure 3
