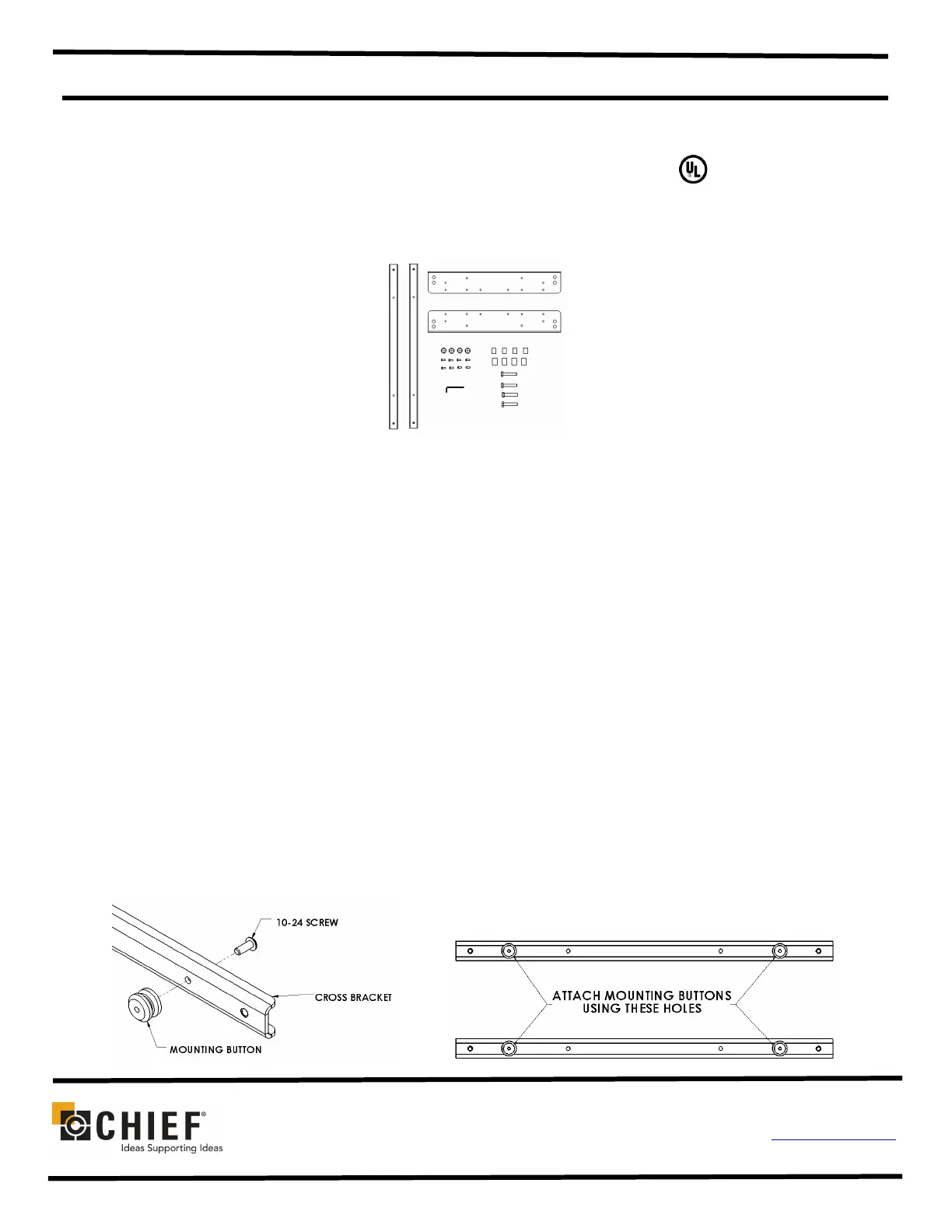

INSTALLATION INSTRUCTIONS
CHIEF MANUFACTURING INC. 8804-000302 REV. E
1-800-582-6480 952-894-6280 FAX 952-894-6918 2008 Chief Manufacturing
8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com
SAVAGE, MINNESOTA 55378 USA 2/08
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 1
75
POUNDS (
79.38
KG).
PSB-2244
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Plasma Upright Brackets (2) Plasma Top/Bottom Bracket
(4) Mounting Button - Tapped (8) 10-24 x .5 Button Head Cap Screw
(4) M10 x 50mm Hex Head Cap Screw (4) M15 x M10.4 x M20 Nylon Spacer
(4) .750 x .390 x 1.00 Nylon Spacer (1) Wrench, Hex, 17mm
(1) 1/8 Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
DISPLAYS ARE EXTREMELY FRAGILE.
1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to upright brackets (four places) (see
Figure 2 & Figure 3).
CAUTION!
Figure 1
WARNING!
Figure 2 Figure 3
Problemløsning Chief PCS2244
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 411 mm |
| Dybde: | 107 mm |
| Højde: | 434 mm |
| Produktfarve: | Sort |
| Husmateriale: | Metal |
| Monteringstype: | Loft |
| Hældningsvinkelområde: | -20 - 5 ° |
| Kompatible produkter: | UL |
| Skærmstørrelse kompatibilitet: | 42 - 71 " |
| Maksimal vægtkapacitet: | 90.7 kg |
| Maksimal skærmstørrelse kompatibilitet: | 71 " |
| Minimal skærmstørrelse kompatibilitet: | 42 " |
