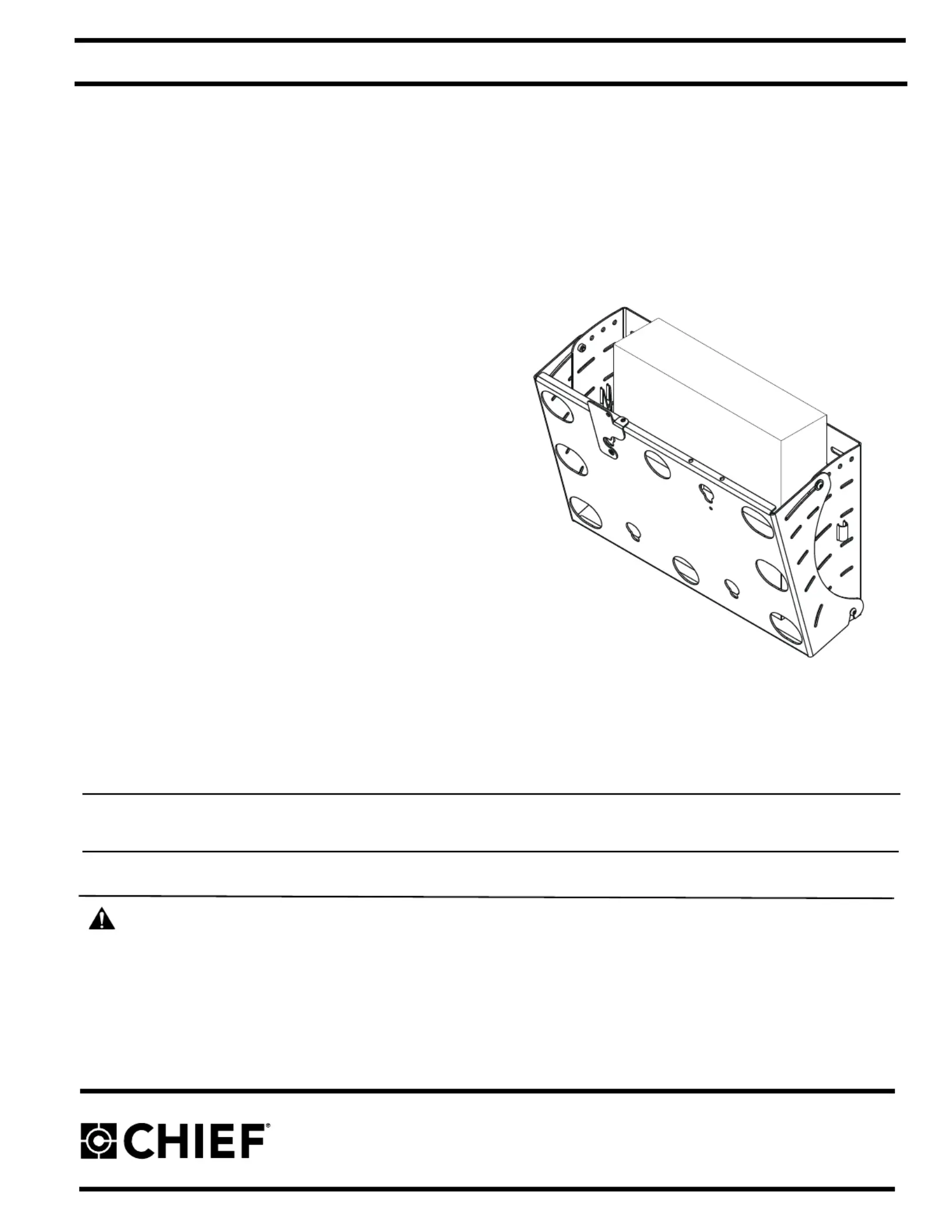

I N S T A L L A T I O N I N S T R U C T I O N S
MEDIUM FLAT PANEL TILT WALL MOUNT WITH INTEGRATED
CPU
Model: MWC Series
Specifications:
•Accommodates three installation options:
- Dual Wood Stud (16" on-center; requires
5/16" x 2-1/2" long hex head lag screws -
included)
- Dual Steel Stud (requires Chief PAC-115 Steel
Stud / Drywall Anchor Kit - not included)
- Drywall (1/2" minimum; requires Chief PAC-
115 Steel Stud / Drywall Anchor Kit - not
included)
•Accommodates CPU up to approximately 18-3/4"
x 3-3/4"; see "DIMENSIONS" for specific details.
•Infinite display tilt adjustment between 0-15° with
positive stops at 0°, 5°, 10°, and 15°.
•Weight capacity of 100 lbs (45 kg).
NOTE: Requires display interface providing 200x200mm
mounting button pattern; not included.
WARNING: It is the installer’s responsibility to make sure all components are properly assembled and installed using
the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in serious
personal injury, damage to equipment, or voiding of factory warranty.
•If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing
at 1-800-582-6480 or 952-894-6280.
BEFORE YOU BEGIN
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
8804-000296 RevB
©2007 Chief Manufacturing
www.chiefmfg.com
10/07
