AXDIS-LR82

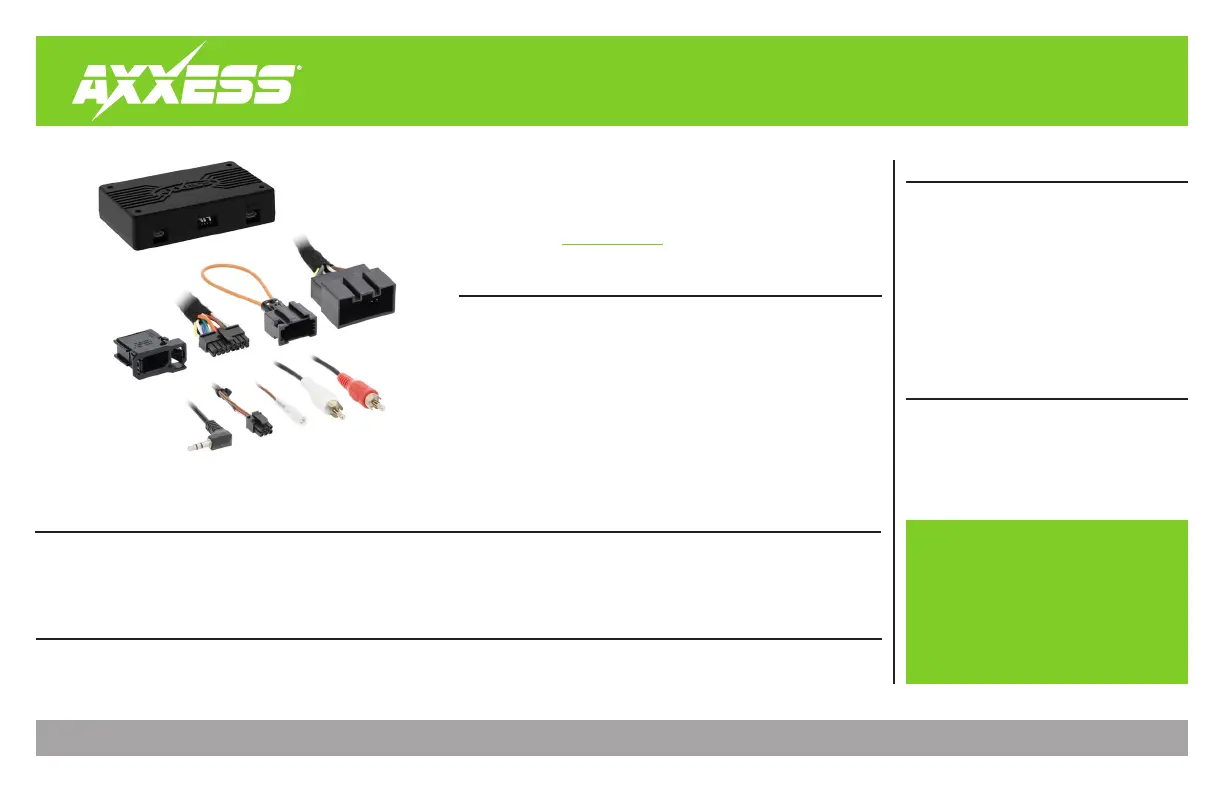

INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 9/6/24 INSTAXDIS-LR82
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Connections: BLK-AXDIS-LR82 harness ................2
Applicable Radios .................................................. 3
Steering Wheel Control Chart (SWC) ...................3
Installing the Fiber Optic Cable.............................4
Installing the AXDIS-LR82 interface .....................4
Land Rover Range Rover Vogue (with MOST25
amplifier) Data Interface with SWC 2002-2012
• Designed for MOST*25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
• AXDIS-LR82 harness
• AXDIS-LR82 interface
• MOST jumper harness
• SWC harness
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip-ties
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
APPLICATIONS
US Applications: Range Rover
Vogue (L322) .................................................................. 2005-2009
World Applications: Range Rover
Vogue (L322) ................................................................... 2002-2012
